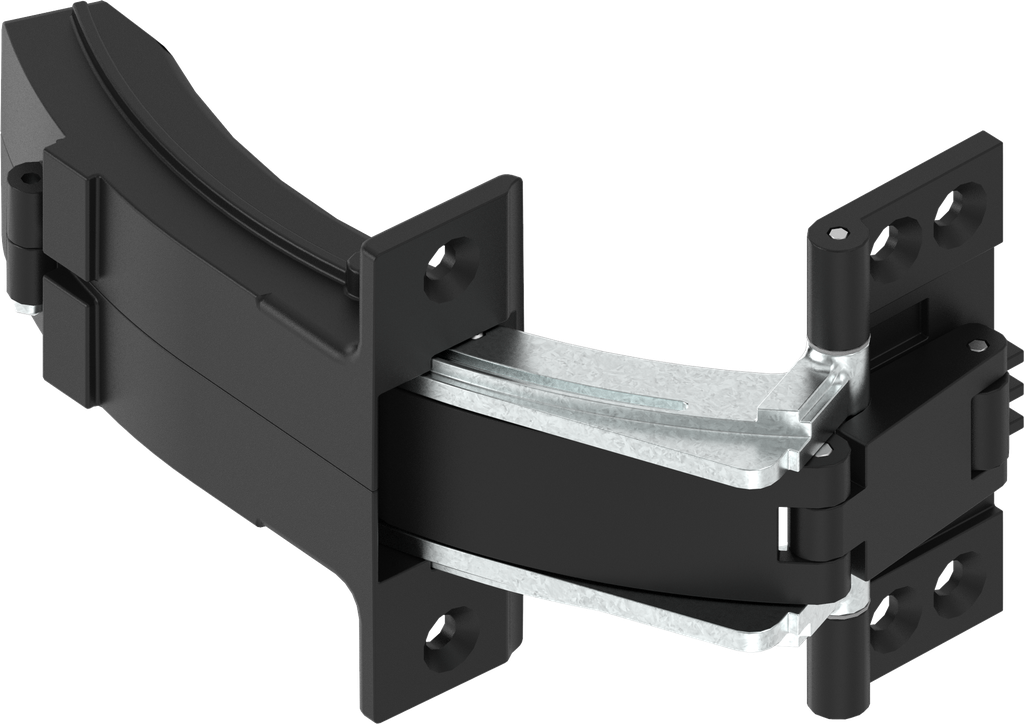

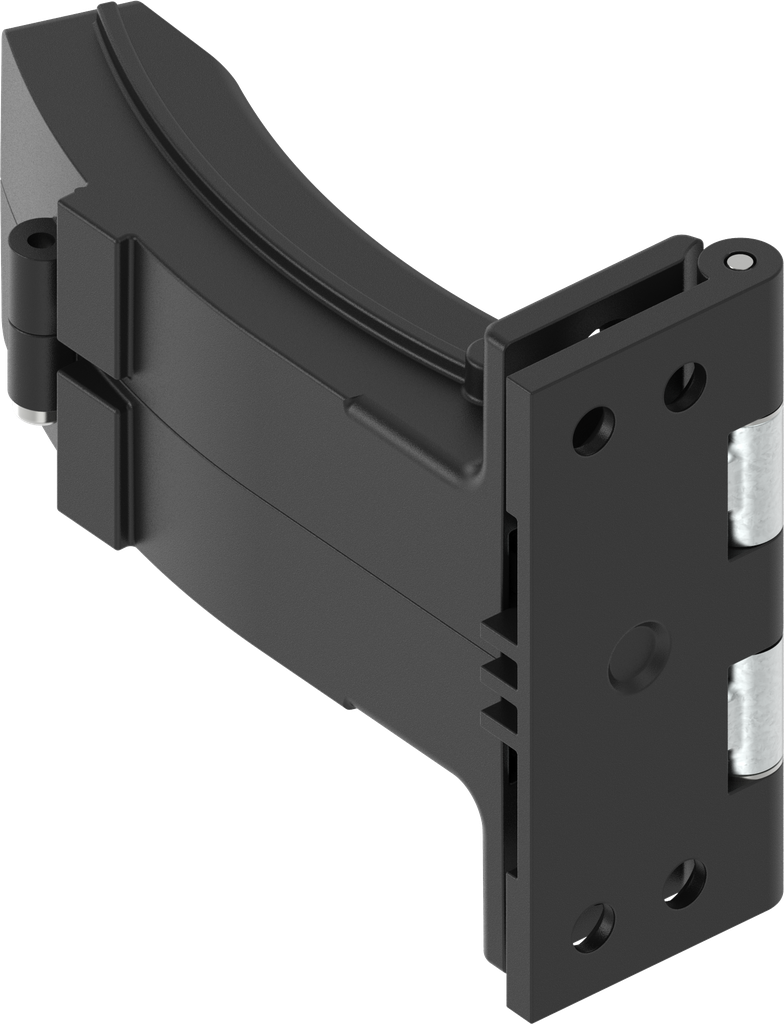

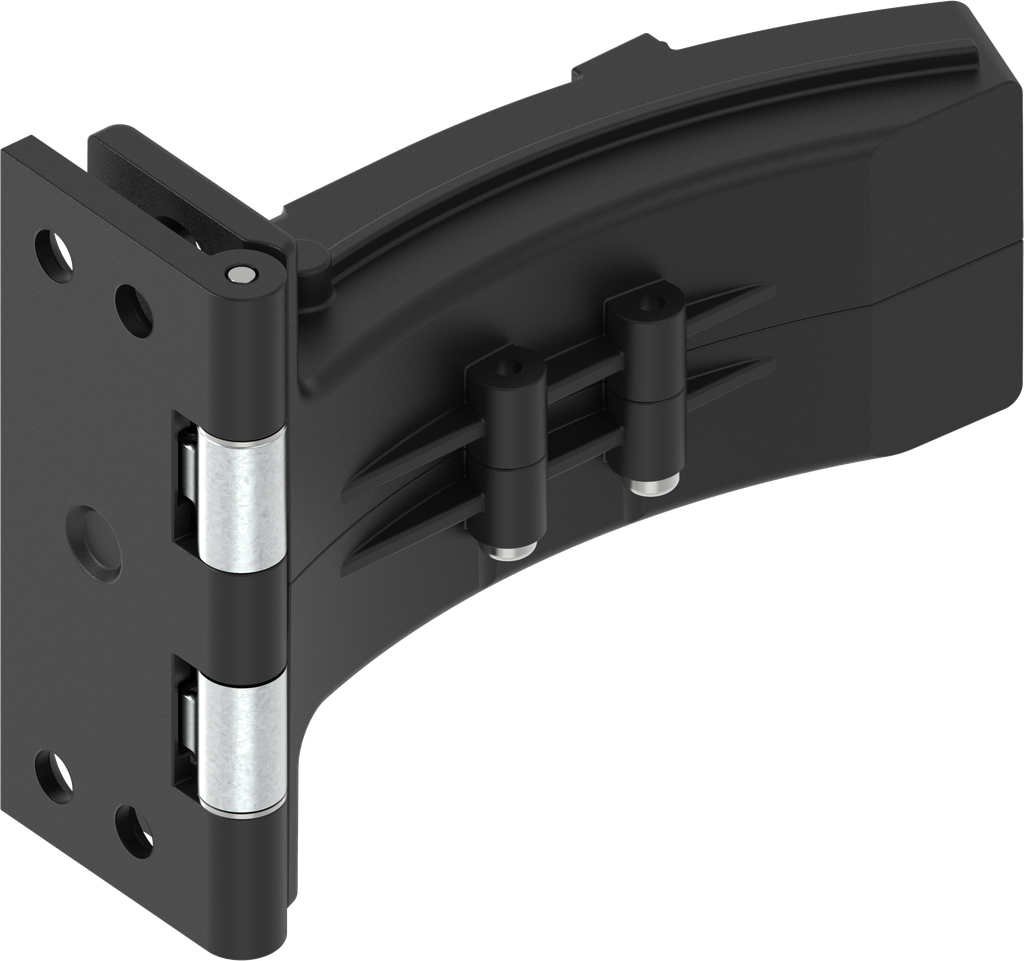

180° Gear hinge, Polyamide 66 GF 50 black; 1007-U10

https://www.emka.com/products/1007-u10 https://www.emka.com/web/image/product.template/60632/image_1920?unique=5a282a7

    This combination does not exist.

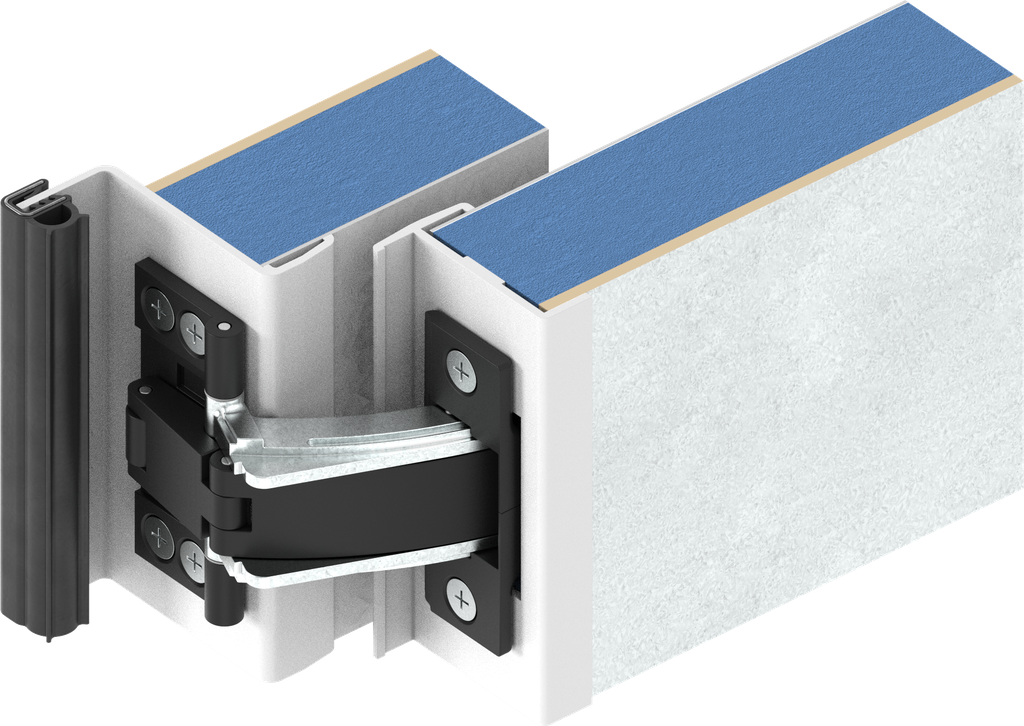

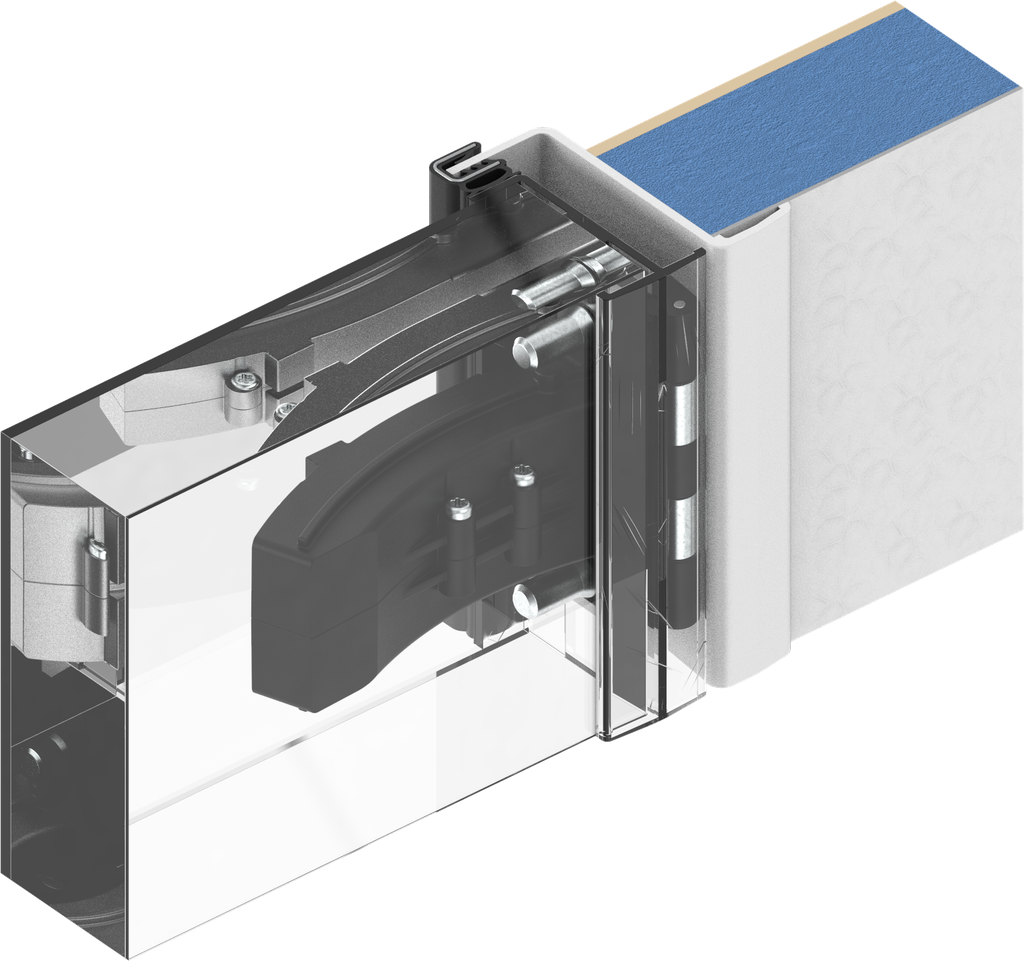

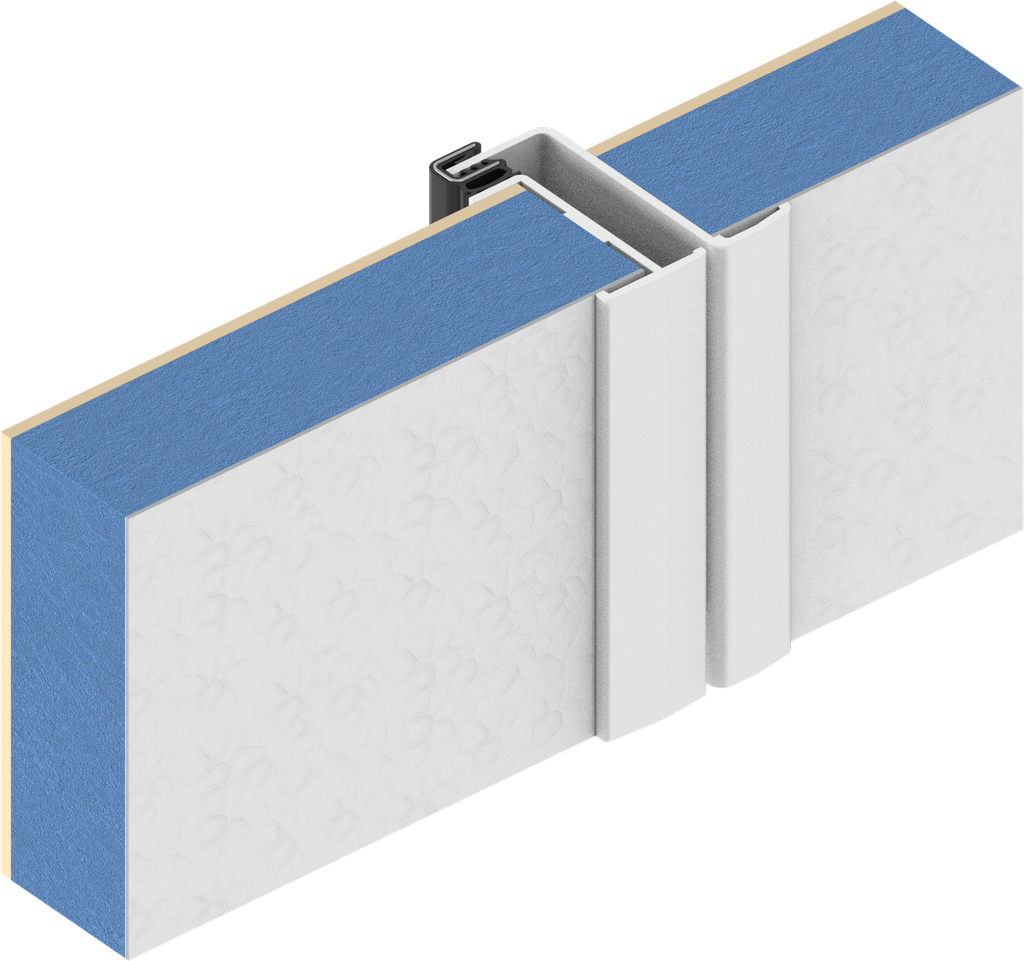

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us

    Product information:

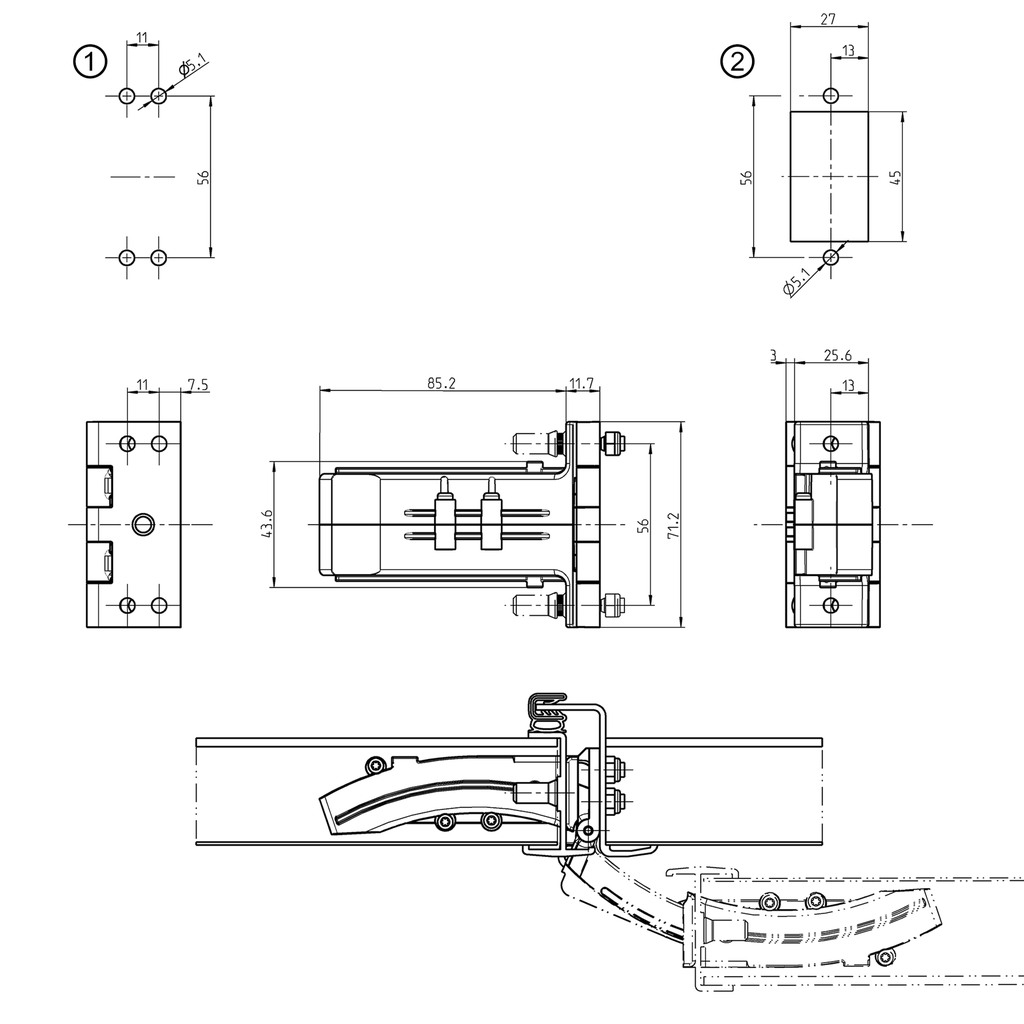

    1 = Cut out frame
    2 = Cut out door / panel
    Internal Reference: 1007-U10
    Product Type: Hinge
    Program: 1007
    Material of the module : Polyamide 66 GF 50
    Surface of the module: black
    Door return variable: Yes
    Type of attachment to the frame: screw-on
    Type of fastening on the door: screw-on
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: concealed
    Door Version : Left,Right
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
