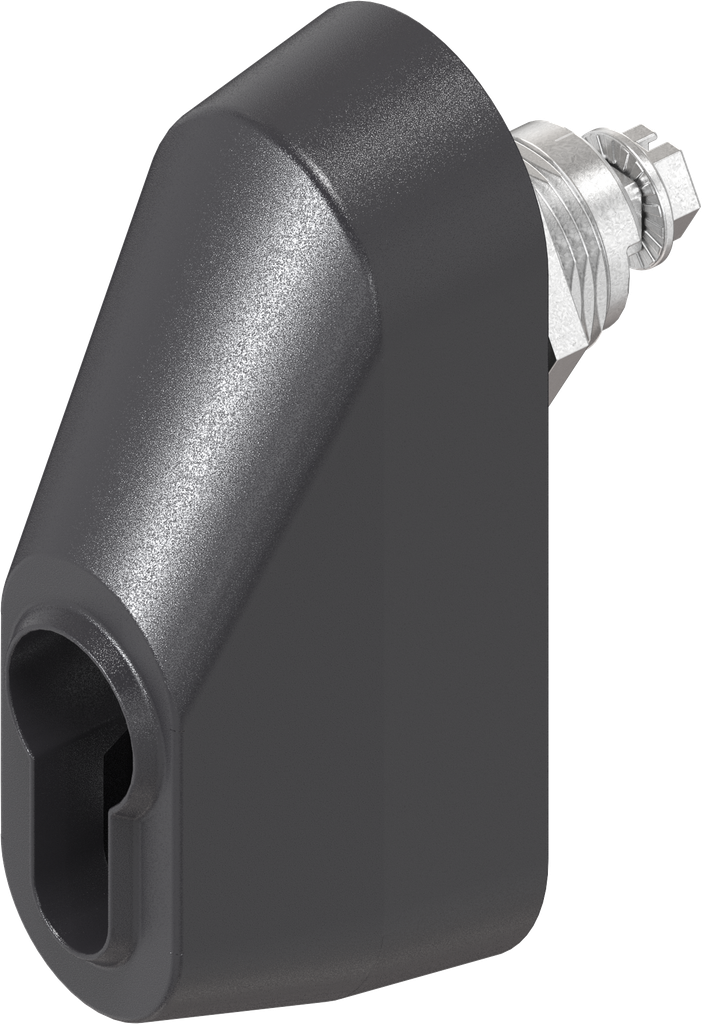

Quarter turn for profile half cylinder, Zinc die and ABS black; 1000-U991

https://www.emka.com/products/1000-u991 https://www.emka.com/web/image/product.template/401933/image_1920?unique=b673019

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 66 DIN EN 61373 (shock and vibration testing) Left Right
    Contact Us

    Product information:

    Tamper and vibration-proof with profile half cylinder acc. to DIN 18252 (EN1303)

    Function:

    Locking process with EMKA profile half cylinder Locking possible without key. Locking process with profile half cylinder acc. to DIN 18252 Locking only possible with key.
    Internal Reference: 1000-U991
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-855
    Material of the module : Zinc die and ABS
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Oval
    Housing Head Size: 100 x 36 x 42 mm
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Profile half cylinder A = 30
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with cylinder
    No Specifications
    View All Products

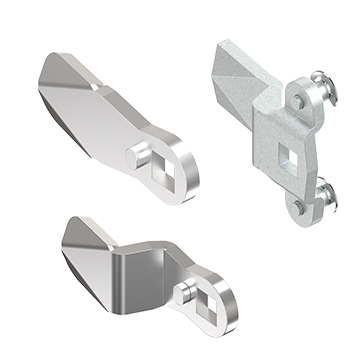

    Cam
    Quarter turn accessories
    Assembly
    Rod control

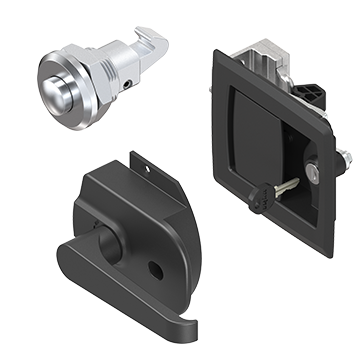

    Other latch
