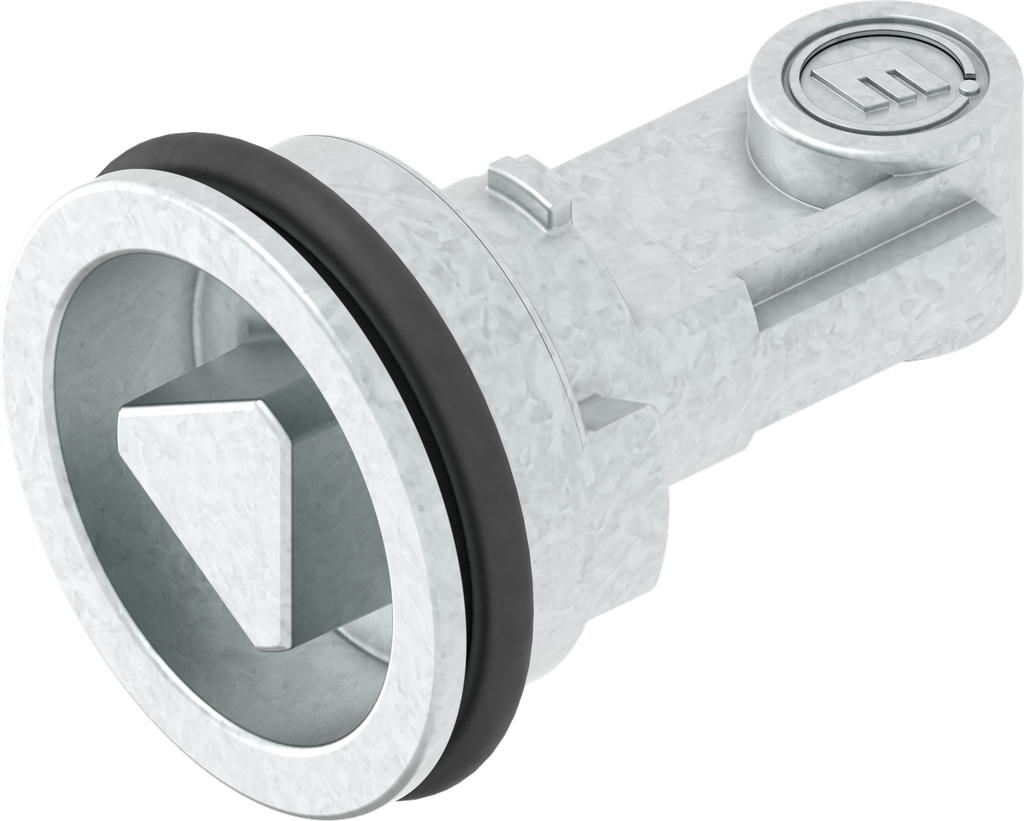

Insert triangular 8 for quick mounting, Zinc die zinc-plated; 1000-U976

https://www.emka.com/products/1000-u976 https://www.emka.com/web/image/product.template/206000/image_1920?unique=f86255a

for assembly without tools


    This combination does not exist.



    Product Benefits:

    • Cost savings due to assembly without tools within seconds
    • Smooth operation (no inner rotation due to design)
    • Snap-in cam with safety cap
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

    A = Assembly: example right-hand version
    B = Disassembly

    Internal Reference: 1000-U976
    Product Type: Insert
    Program: 1000
    Catalog sheet: 1B-170
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 1 point
    Insert for: Insert for housing with quick mounting
    Type of actuation: Triangular 8
    Locking set: Insert
    No Specifications
    View All Products
    Cam
    Housing
    Keys
    Here you can find the product data sheets and CAD files of this product
