Compression latch railway version with marking, right version, Aluminium hard anodized and stainless steel AISI 316
Insert square 7 for quick mounting, Zinc die zinc-plated
Product Benefits:
- Cost savings due to assembly without tools within seconds
- Smooth operation (no inner rotation due to design)
- Snap-in cam with safety cap
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Product information:

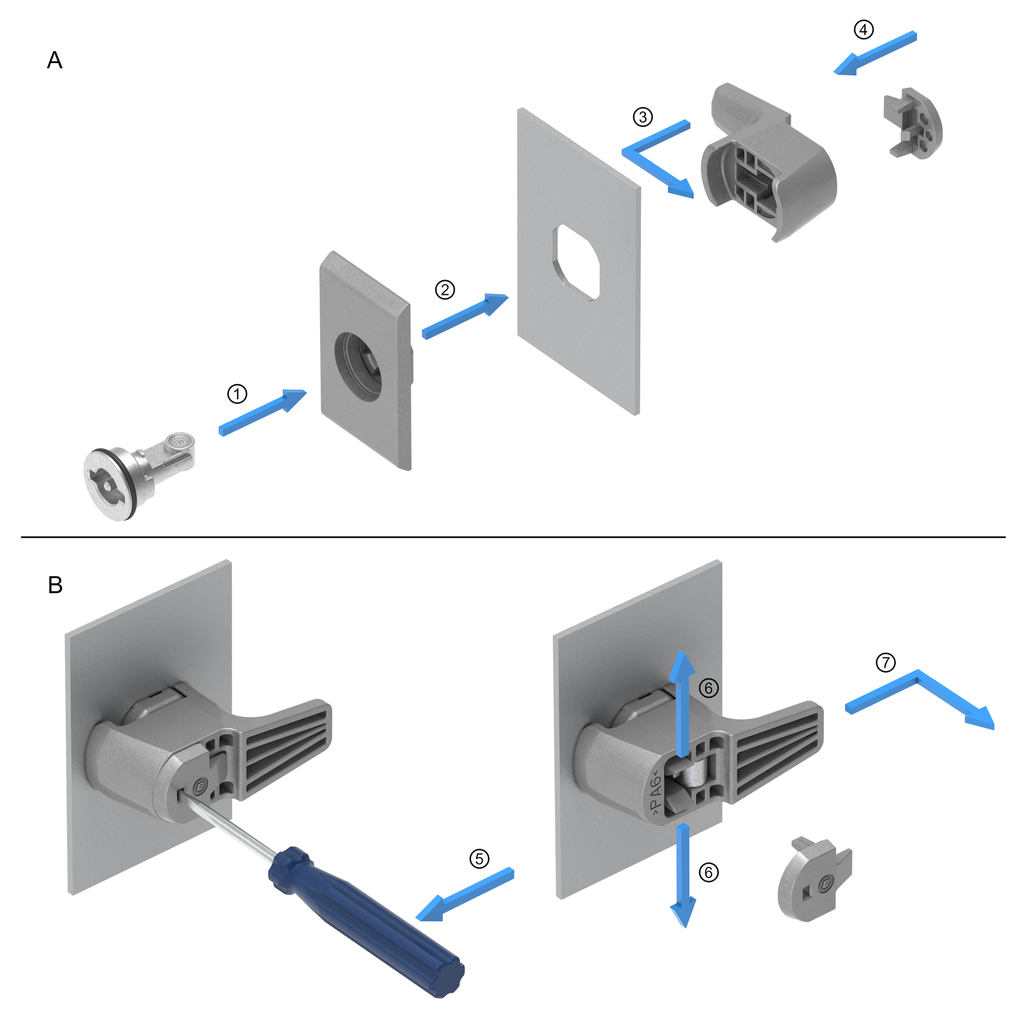

A = Assembly: example right-hand version
B = Disassembly
Internal Reference:
1000-U972
Product Type:
Housing
Program:
1000
Catalog sheet:
1B-170
Material of the module :
Polyamide GF
Surface of the module:
silver grey metallic
Number of Possible Locking Points:
1 point
Fixing type of housing :
clamp-on / clip fix
Mounting Positions :
Inside the sealing

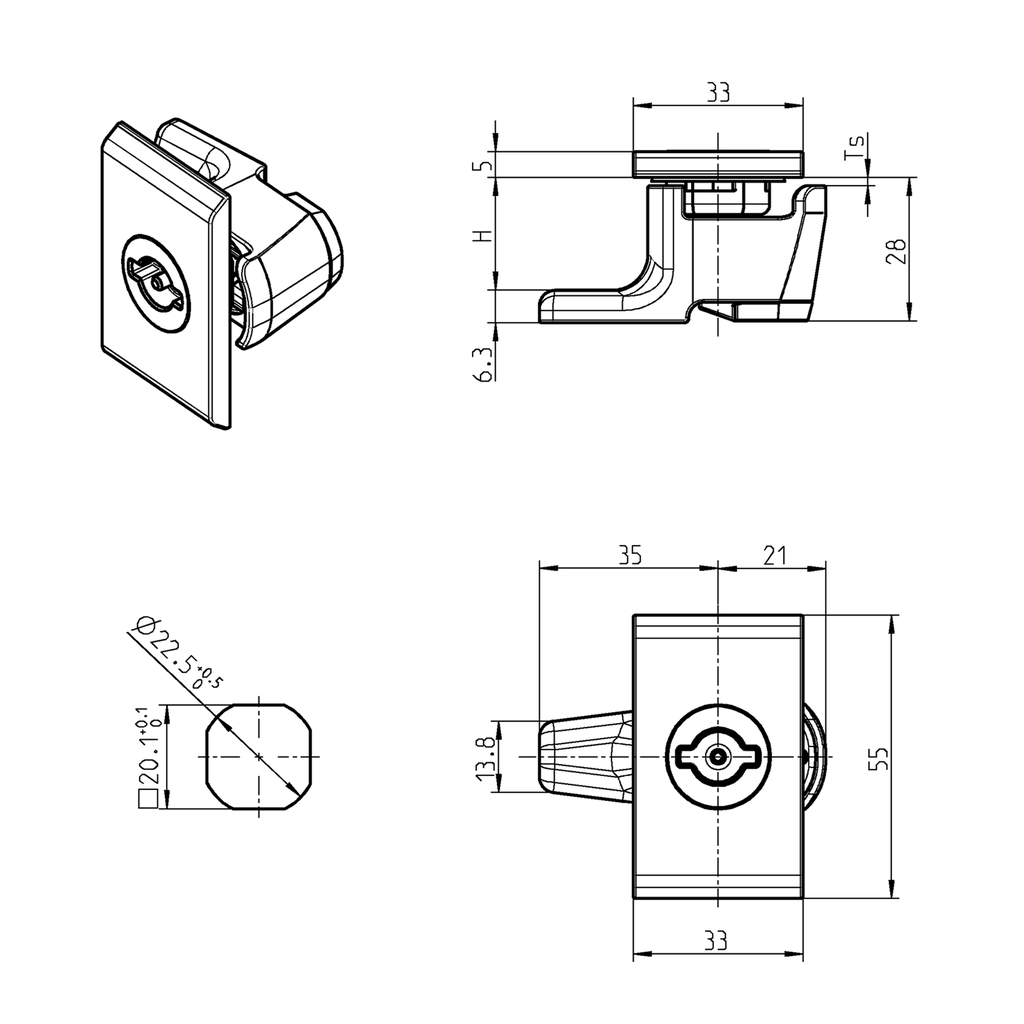

Housing Head Shape:
Square
Housing Head Size:
33 x 55 x 5 mm
Integrated seal:
Yes
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn for assembly without tools
