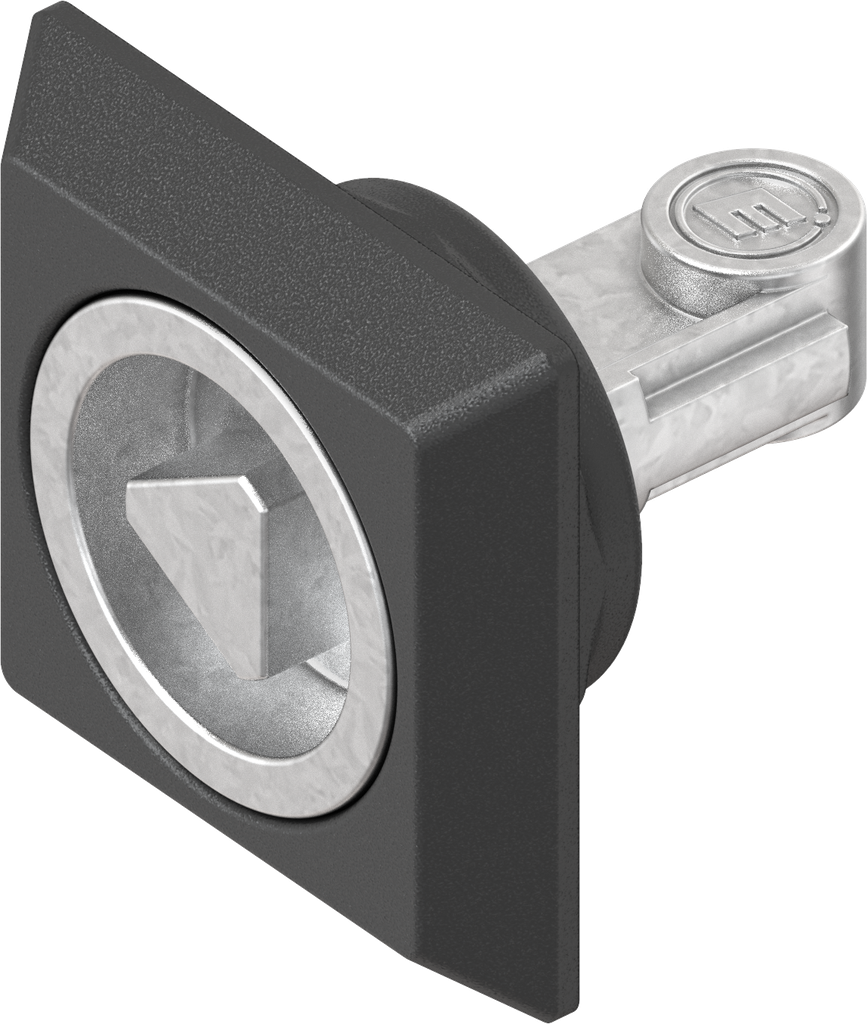

Insert part triangular 8, Zinc die zinc-plated; 1000-U904

https://www.emka.com/products/1000-u904 https://www.emka.com/web/image/product.template/205948/image_1920?unique=1dde554


    This combination does not exist.

    clamp-on / clip fix Inside the sealing Protection class IP 65 Left Right


    Product Benefits:

    • Cost savings due to assembly without tools within seconds
    • Smooth operation (no inner rotation due to design)
    • Snap-in cam with safety cap
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

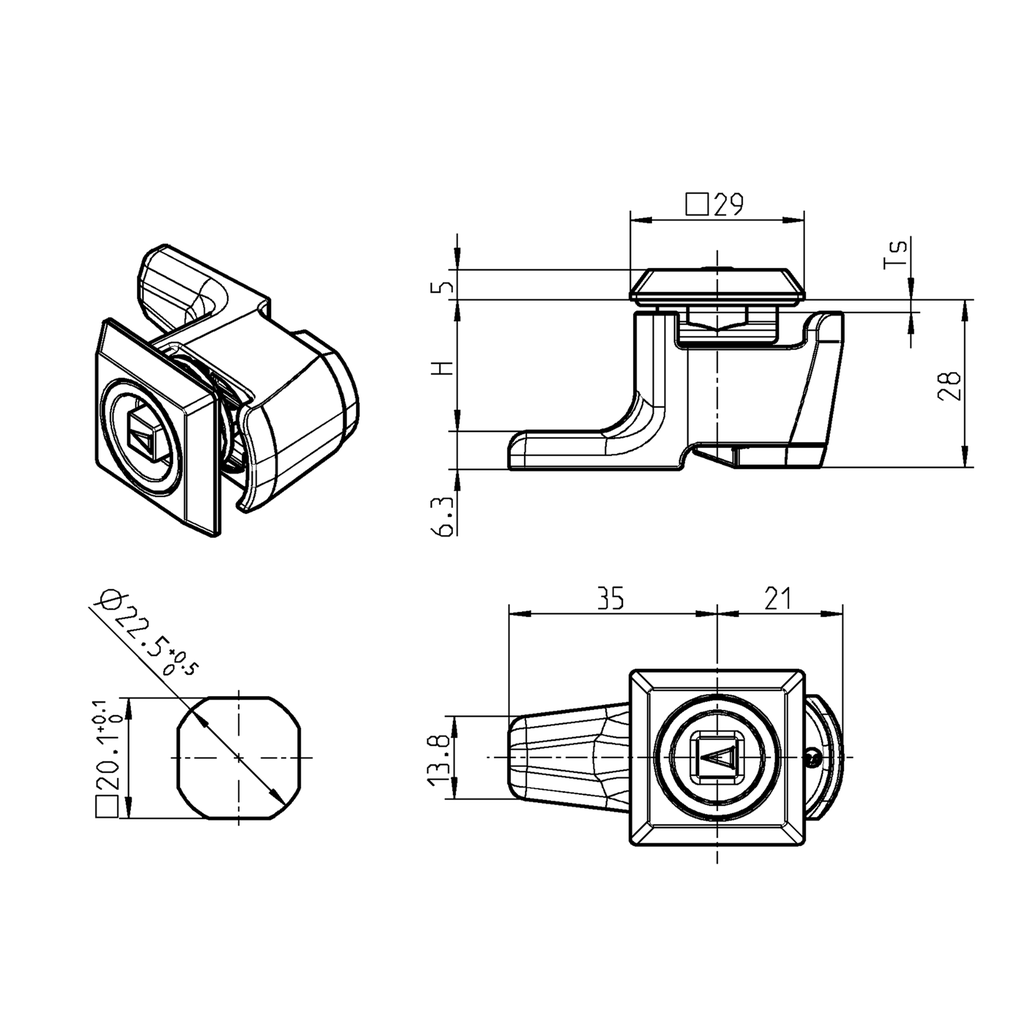

    A = Assembly: example right-hand version
    B = Disassembly

    Internal Reference: 1000-U904
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-170
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : clamp-on / clip fix
    Type of actuation: Triangular 8
    Mounting Positions : Inside the sealing
    Housing Head Shape: Square
    Housing Head Size: 29 x 5 mm
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 3 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
