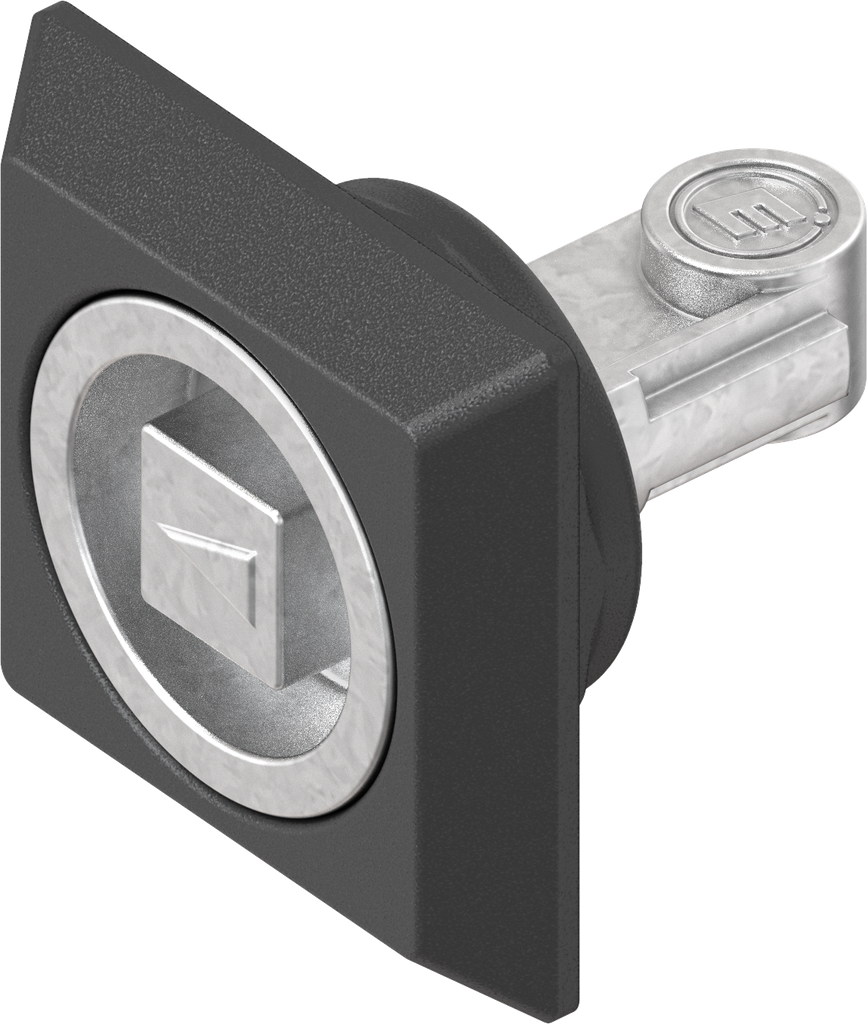

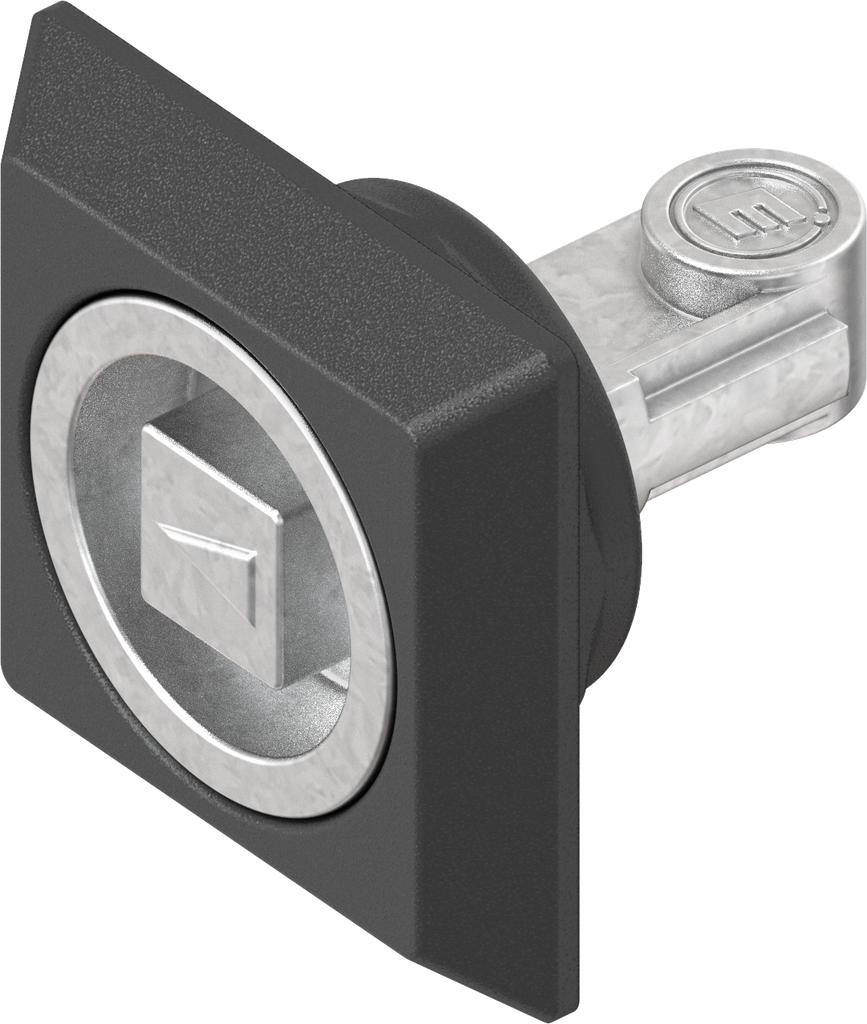

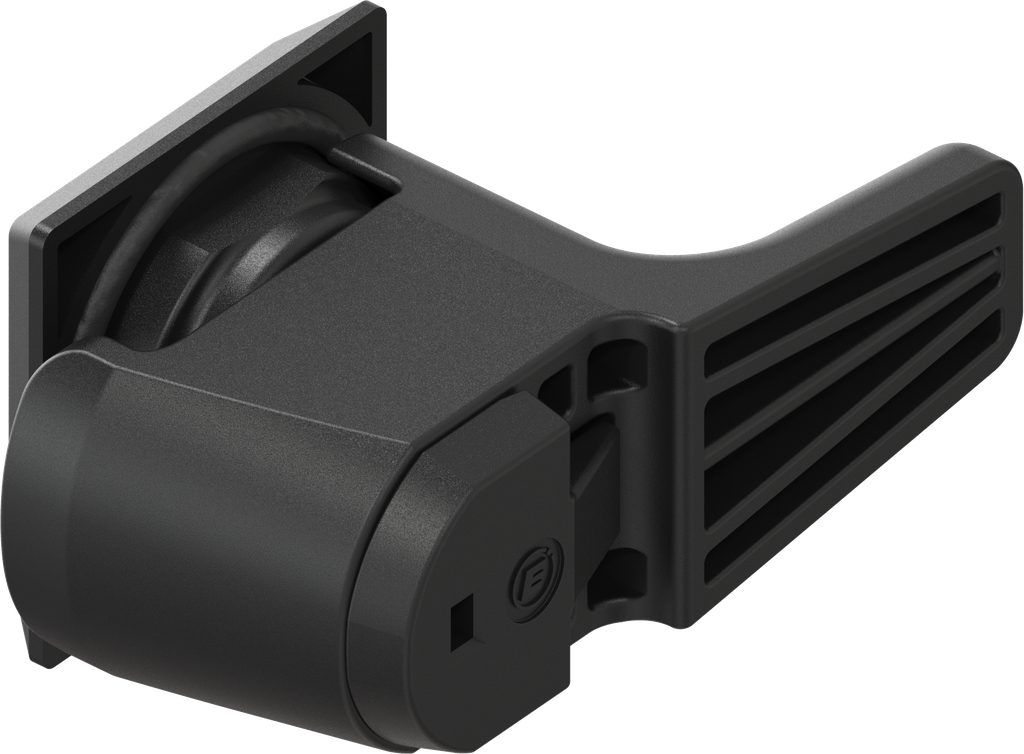

Insert part square 7, Zinc die zinc-plated
Insert part triangular 8, Zinc die zinc-plated
Product Benefits:
- Cost savings due to assembly without tools within seconds
- Smooth operation (no inner rotation due to design)
- Snap-in cam with safety cap
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented

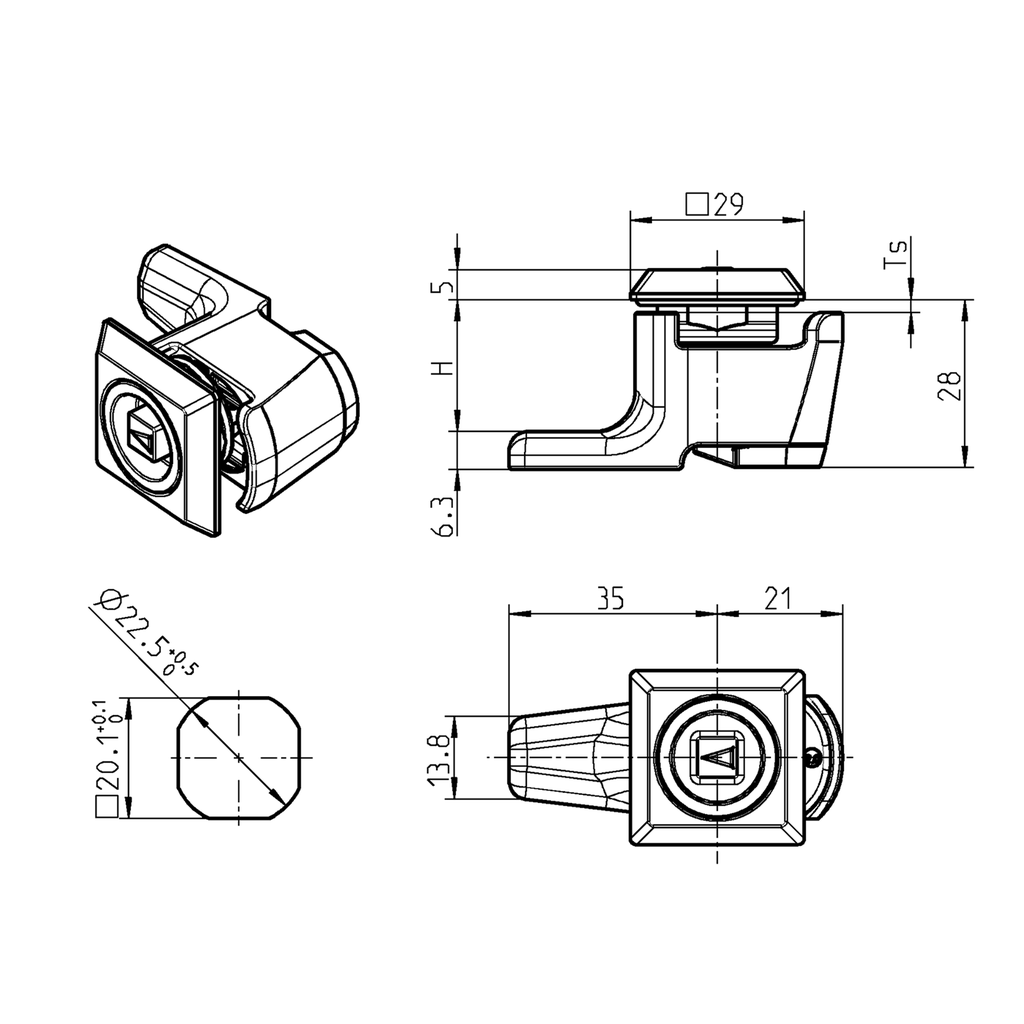

Product information:

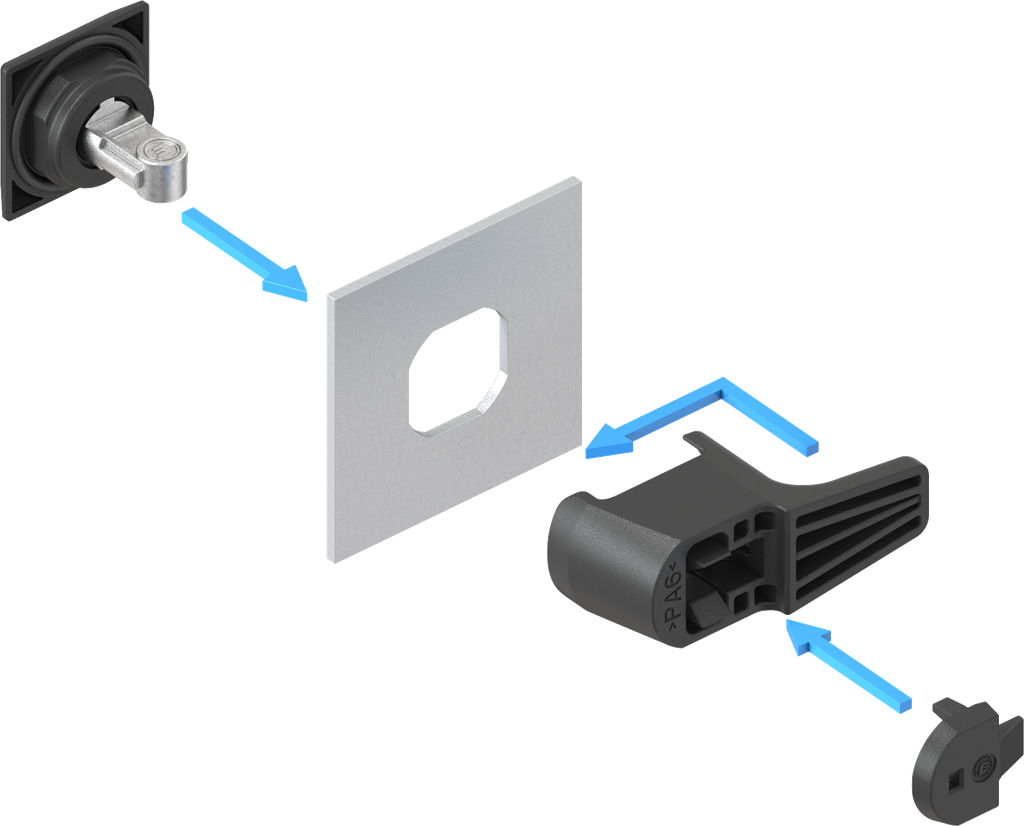

A = Assembly: example right-hand version
B = Disassembly
Internal Reference:
1000-U903
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-170
Material of the module :
Zinc die
Surface of the module:
zinc-plated
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Fixing type of housing :
clamp-on / clip fix
Type of actuation:
Square 8 with arrow
Mounting Positions :
Inside the sealing
Housing Head Shape:
Square
Housing Head Size:
29 x 5 mm
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert,Quarter turn for assembly without tools
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
