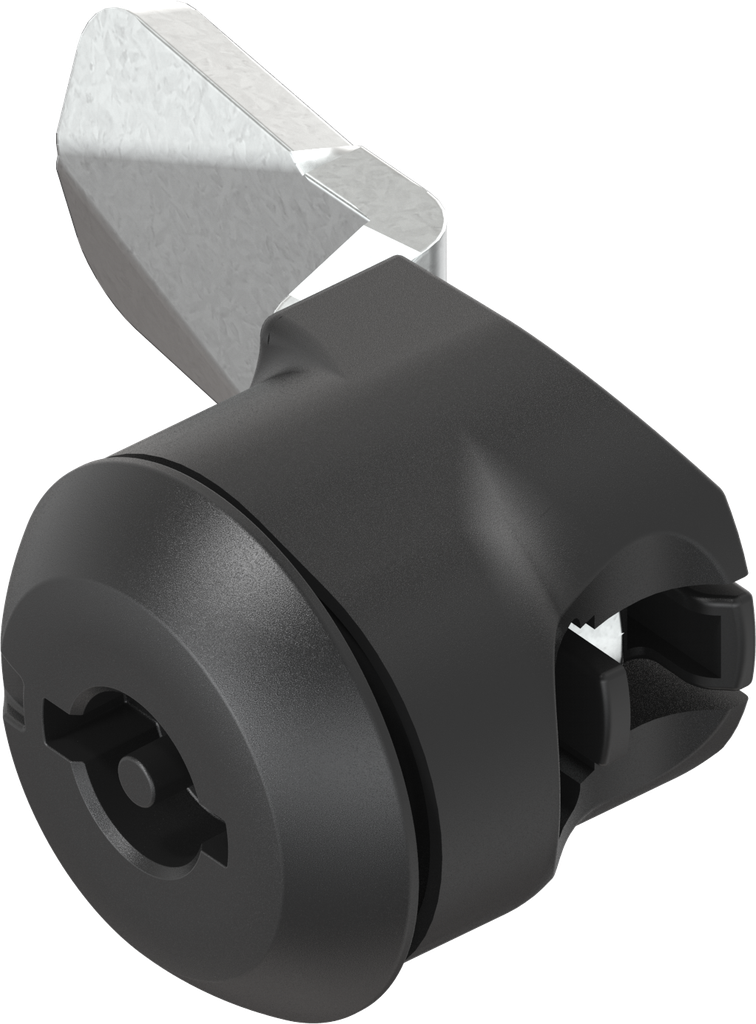

Rod control for multi-point locking, Stainless steel AISI 316
Compression latch double bit 3, Stainless steel AISI 316
Product Benefits:
- Cost savings due to assembly and disassembly without tools within seconds
- Optionally available with polyamide or steel cam
- Suitable for many standard cams
- Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
- Smooth operation (no inner rotation due to design)
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Product information:
Door gauge incl. surface coating
A = Assembly
① = Insert the insert part into the cut out
② = Place the click-in housing and shift it laterally
③ = Insert the cam into the click-in housing acoustic and visual verification of clicking in place of click-in housing
B = Disassembly
④ = Lift locking arm of the cam
⑤ = Pull out the cam of the click-in housing
⑥ = Lift locking arm of the click-in housing
⑦ = Shift the click-in housing laterally and remove it
Internal Reference:
1000-U895
Product Type:

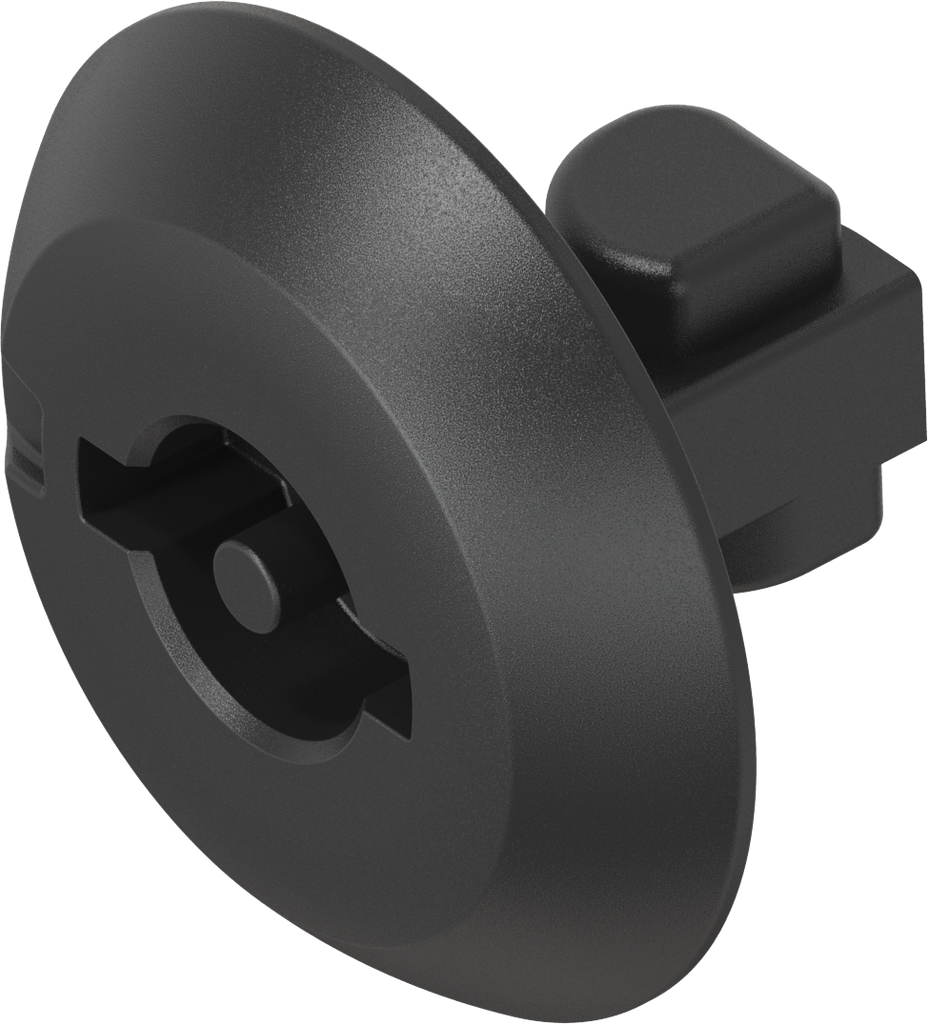

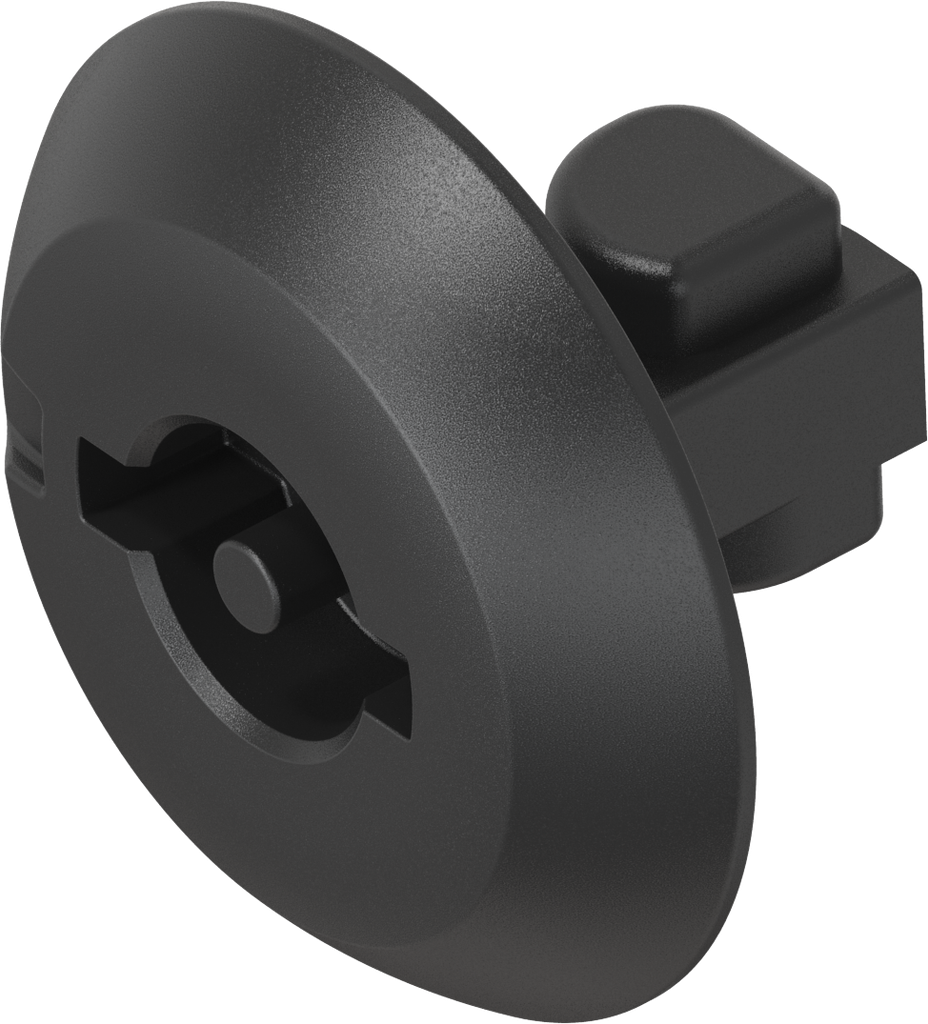

Insert
Program:
1000
Catalog sheet:
1B-180
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Insert for:
Insert for housing with quick mounting
Type of actuation:
Double bit 3
For GH measure:
18 mm
Locking set:
Insert
No Specifications
