Adapter, Stainless steel AISI 303
Compression latch with wing knob insert, Zinc die black powder-coated

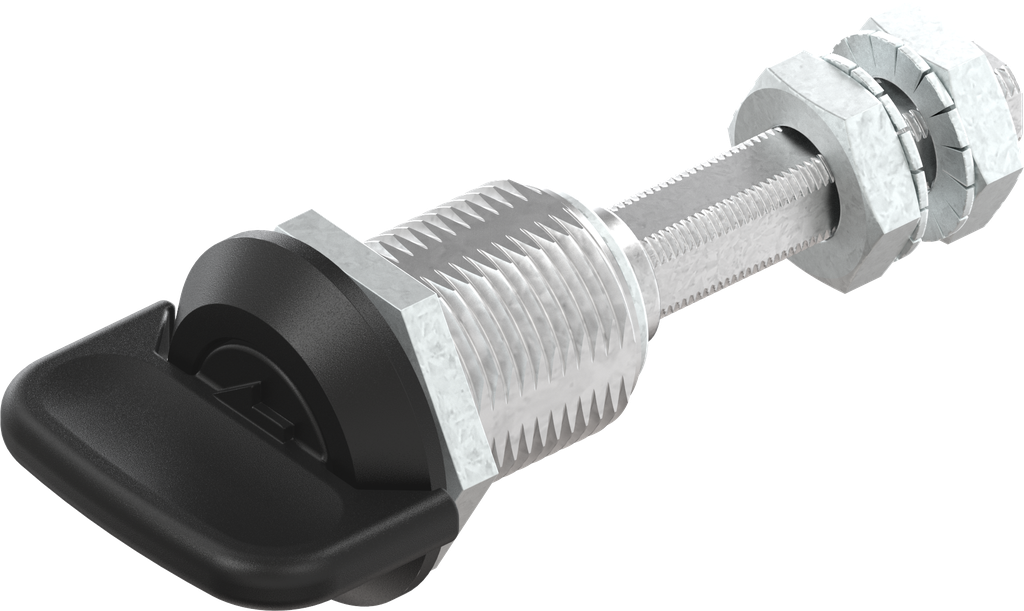

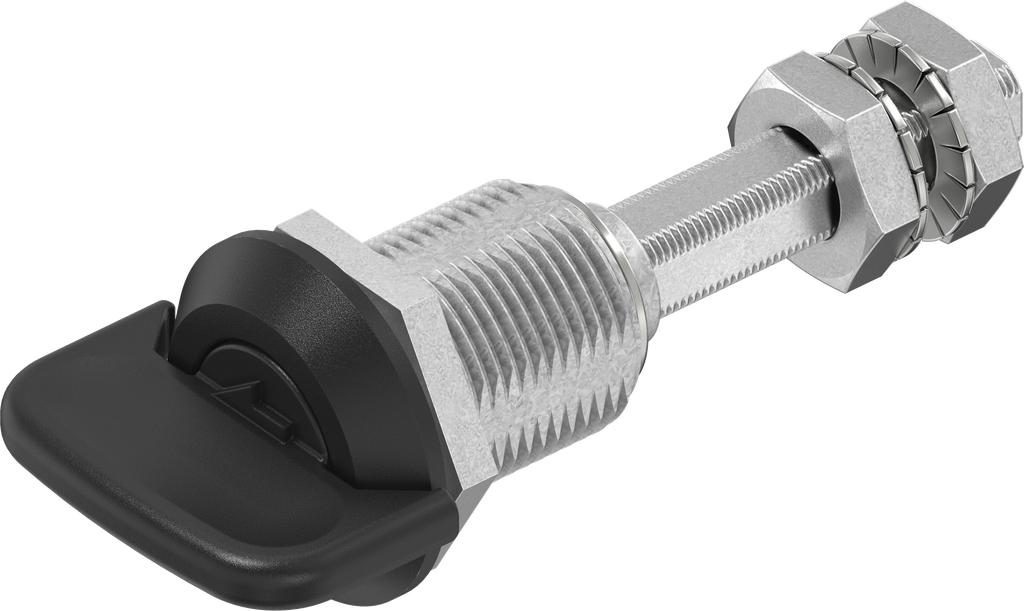

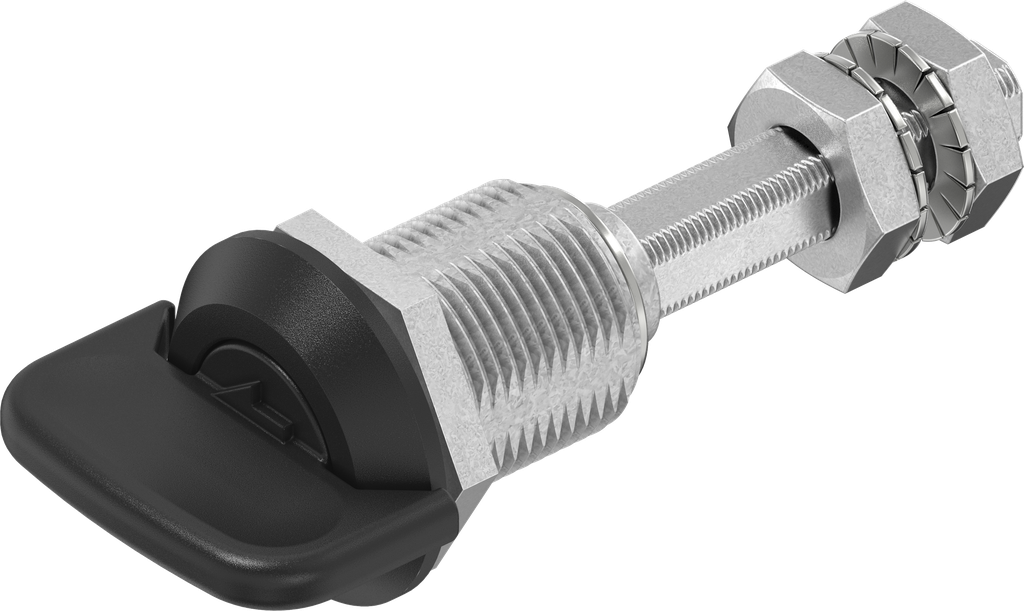

Compression latch with wing knob with adjustable cam height, Zinc die black powder-coated; 1000-U880
with nut
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U880
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-222
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Wing knob insert
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Handle Art:
Wing knob
IP 65 on request:
Yes
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with handle
No Specifications
