Cylinder quarter turn, keyed different, Zinc die black powder-coated
Swinghandle "short" with RC2 for iLOQ profile half cylinder, Zinc die grey powder-coated RAL 7038

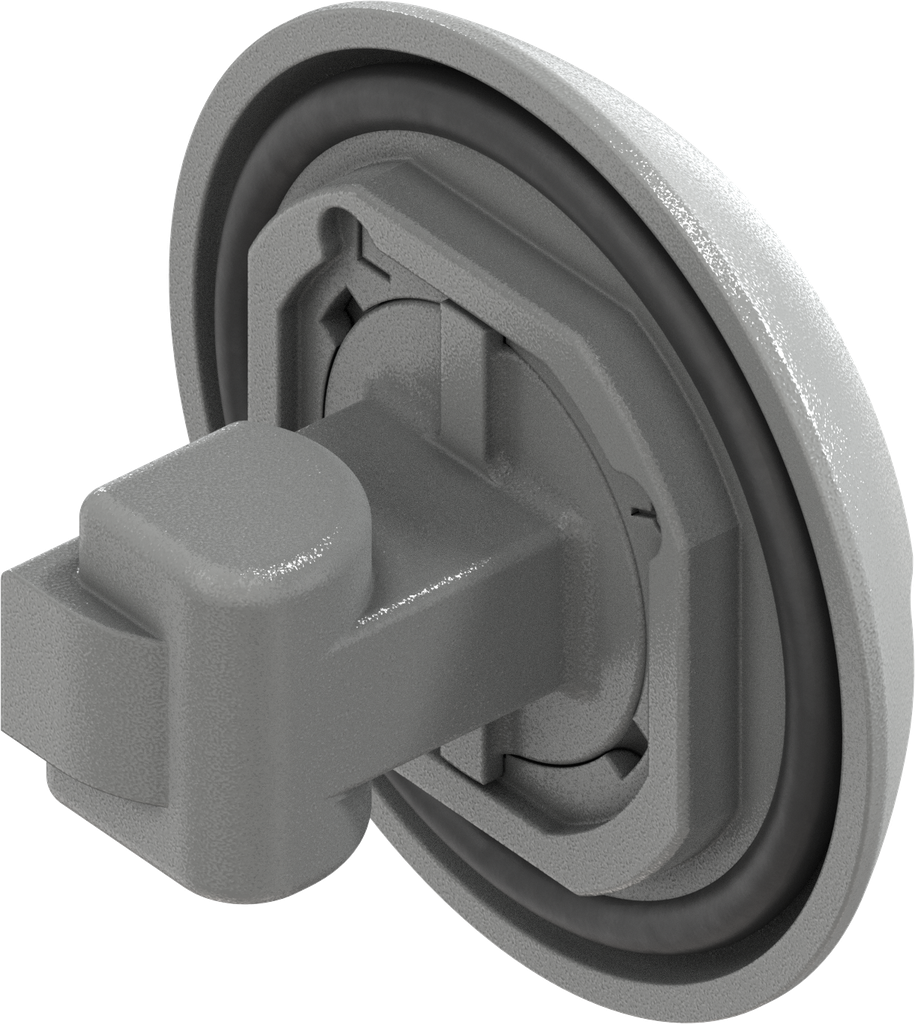

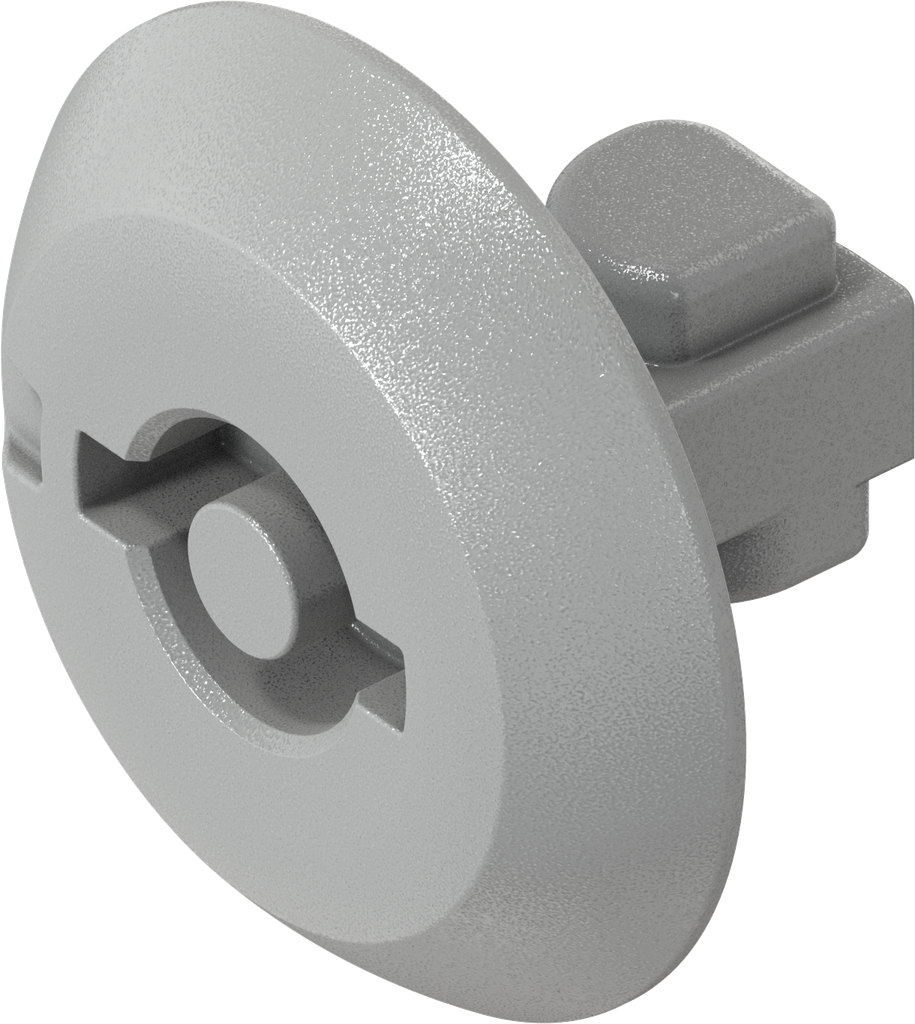

Insert part double bit 5 for assembly without tools, Polyamide GF dust grey; 1000-U873-BQ

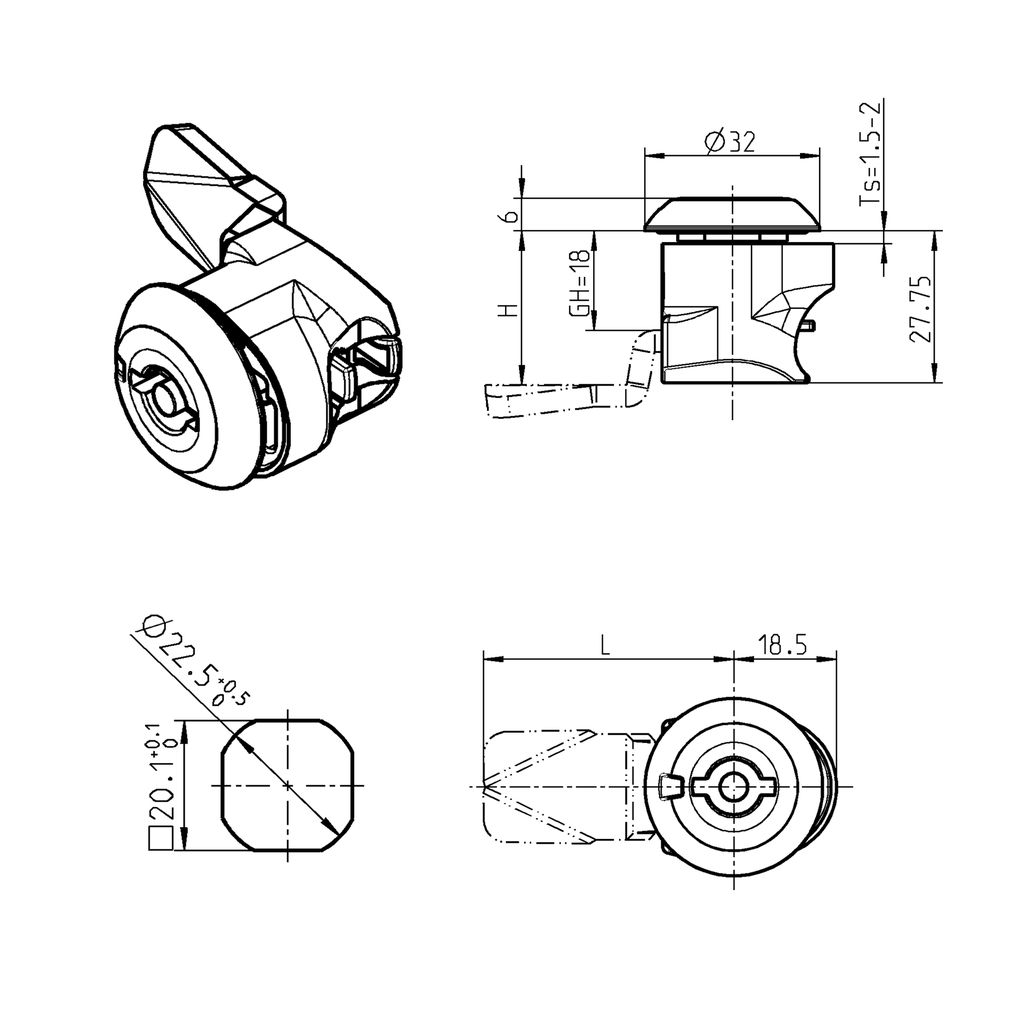

Length of housing (GH) = 18 mm
Product Benefits:
- Cost savings due to assembly and disassembly without tools within seconds
- Optionally available with polyamide or steel cam
- Suitable for many standard cams
- Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
- Smooth operation (no inner rotation due to design)
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented

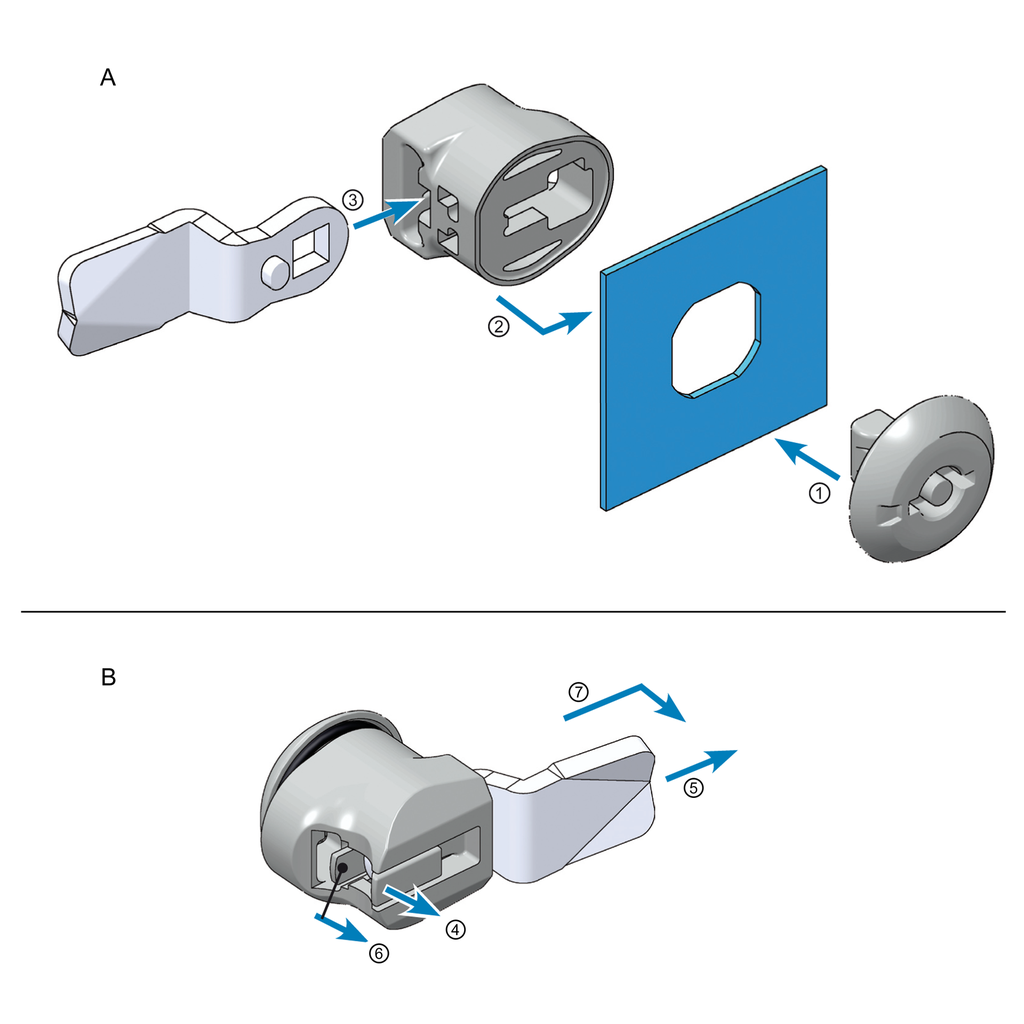

Assembly instruction:
- Assembly door stop on the right:
Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing. - Assembly door stop on the left:
Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
Internal Reference:
1000-U873-BQ
Standards:
Protection class IP 69K
Barcode:
1000-U00873-00000BQ
Product Type:
Insert
Program:
1000
Material of the module :
Polyamide GF
Surface of the module:
dust grey
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Insert for:
Insert for housing with quick mounting
Type of actuation:
Double bit 5
For GH measure:
18 mm
Locking set:
Insert
