L-handle quarter turn for padlock, Stainless steel AISI 316
L-handle quarter turn for padlock, Stainless steel AISI 316
L-handle quarter turn for padlock, Zinc die chrome-plated
L-handle quarter turn for padlock, Zinc die chrome-plated

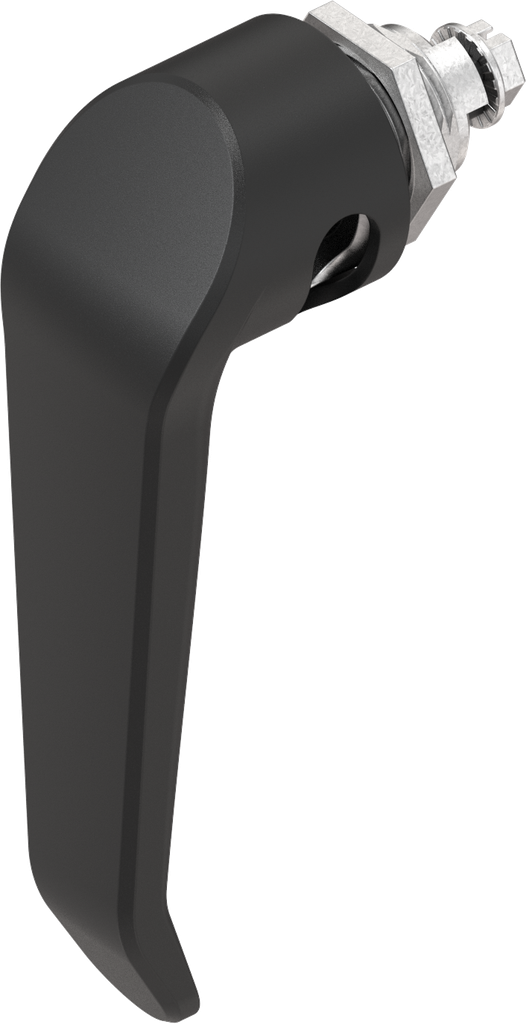

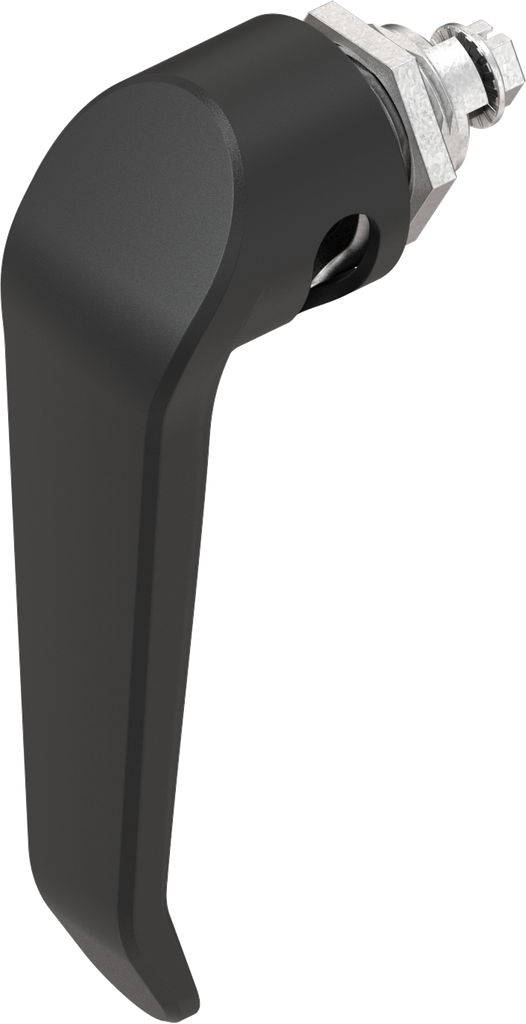

L-handle quarter turn for padlock, Zinc die black powder-coated; 1000-U860-01AA

https://www.emka.com/products/1000-u860-01aa https://www.emka.com/web/image/product.template/60387/image_1920?unique=2b412e9

with nut

    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 Left Right
    Contact Us

    Product information:

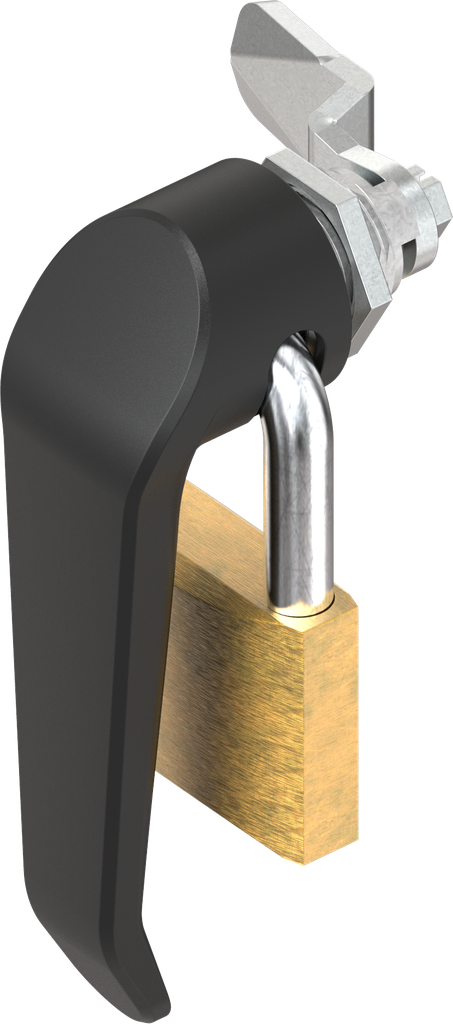

    Attention: L-handle is locked when a padlock is fitted.
    Internal Reference: 1000-U860-01AA
    Product Type: Quarter turn
    Program: 1000

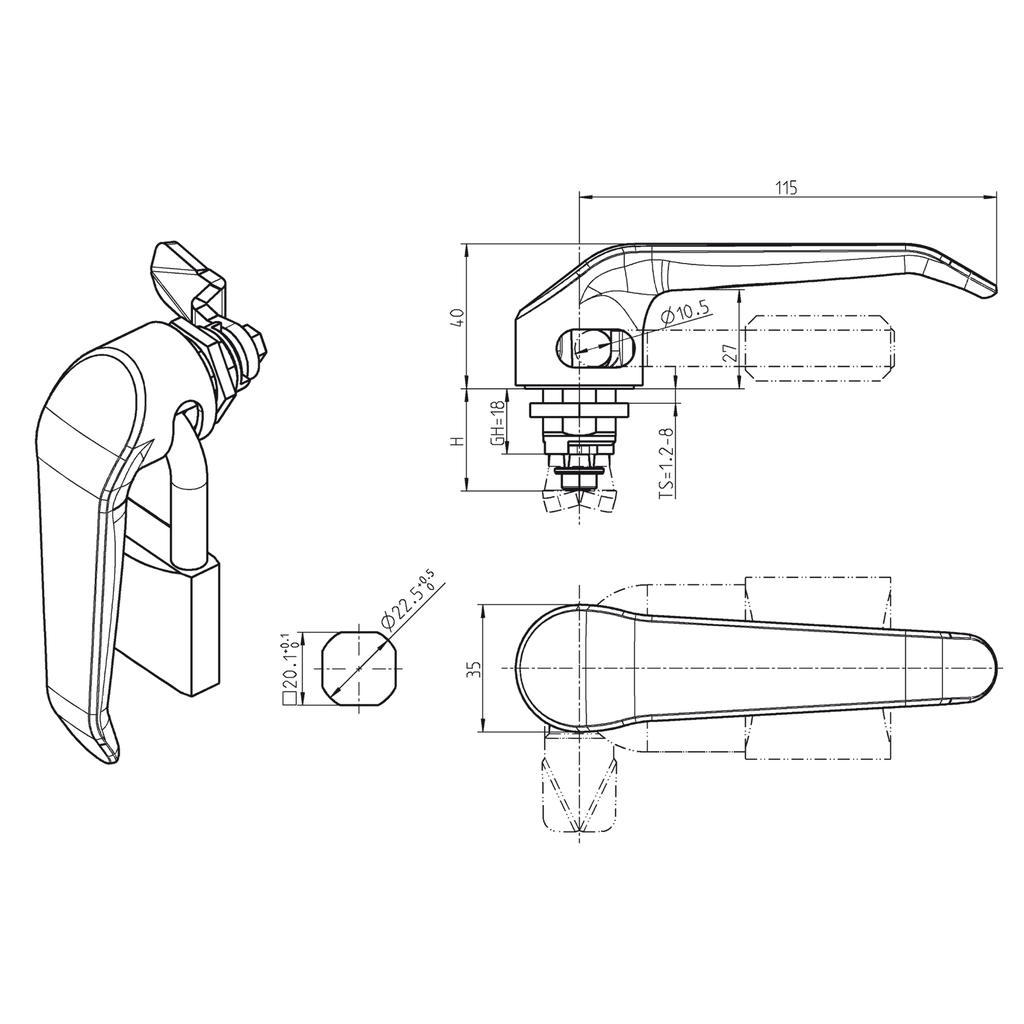

    Catalog sheet: 1B-650
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 10.5
    Quarter turn types: Quarter turn with handle,Quarter turn for padlock
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control
    Other latch
    Here you can find the product data sheets and CAD files of this product
