Ramp self-adhesive, Polyamide black
Ramp self-adhesive, Polyamide black
L-handle quarter turn for padlock, Zinc die black powder-coated
L-handle quarter turn for padlock, Zinc die black powder-coated

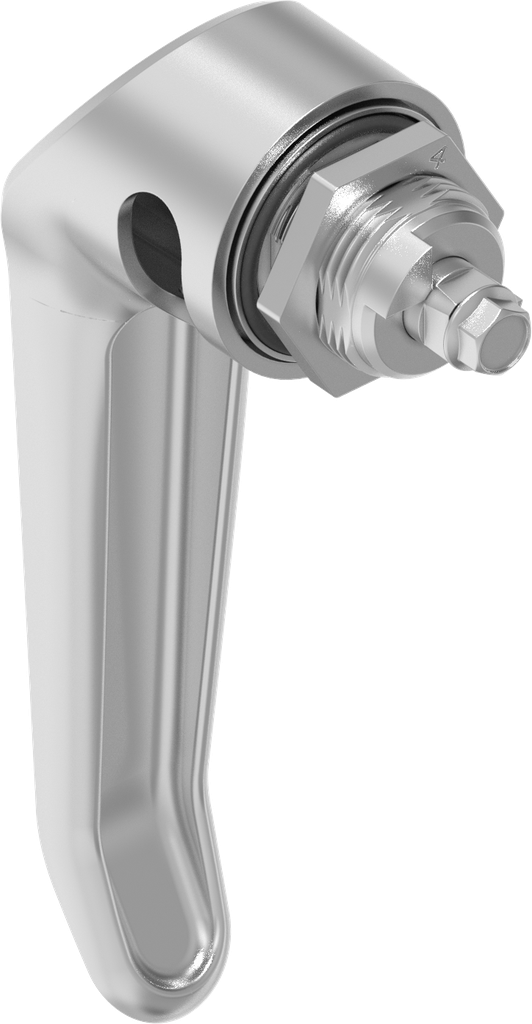

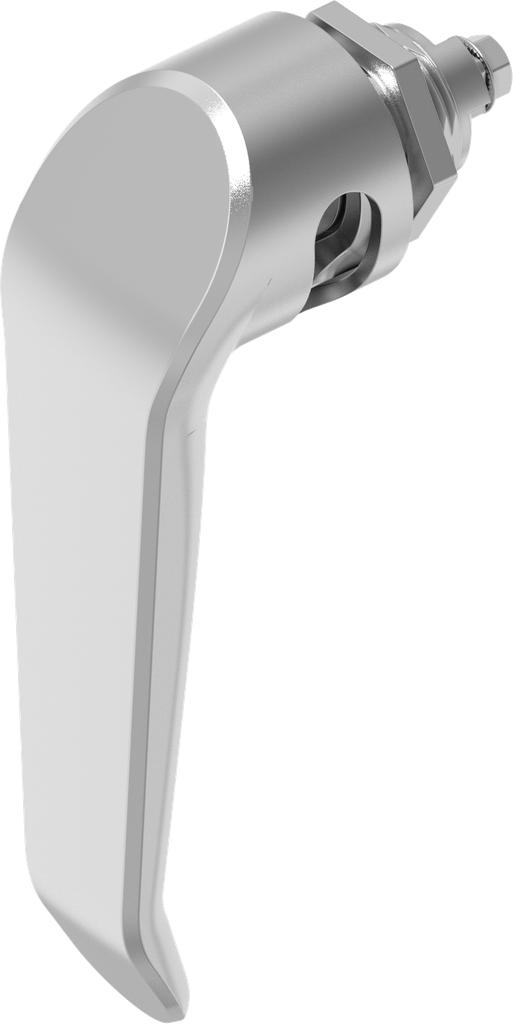

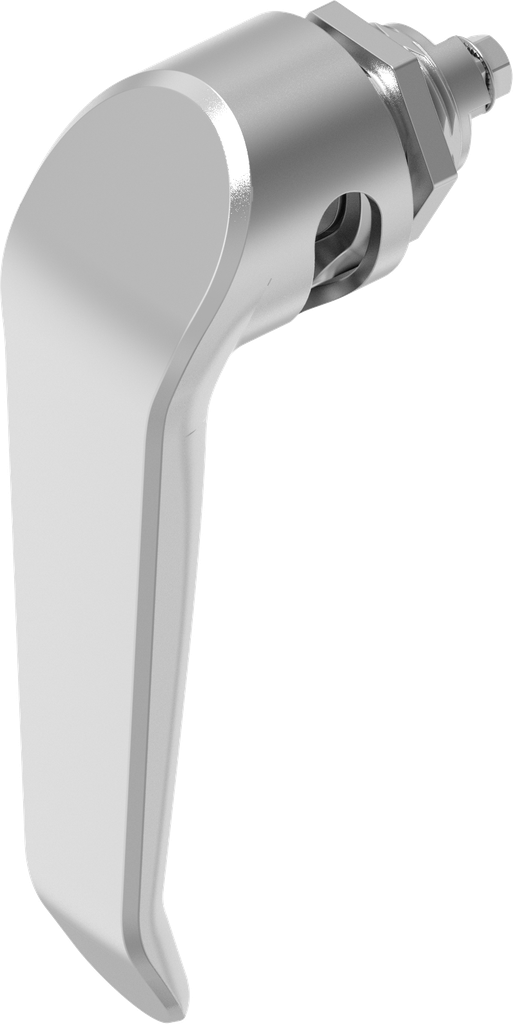

L-handle quarter turn for padlock, Stainless steel AISI 316; 1000-U860

https://www.emka.com/products/1000-u860 https://www.emka.com/web/image/product.template/60386/image_1920?unique=8e3e2d5

with stainless steel nut

    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 Left Right
    Contact Us

    Product information:

    Attention:

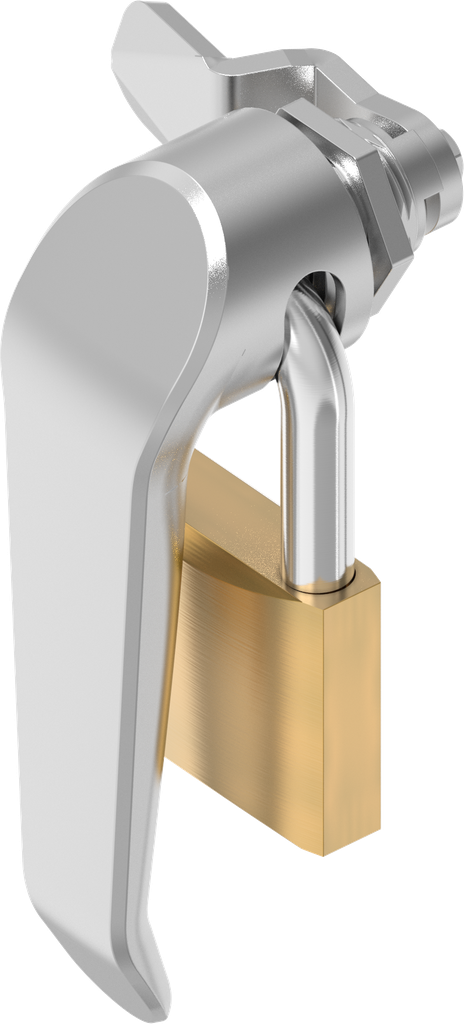

    L-handle is locked when a padlock is fitted.
    Internal Reference: 1000-U860
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-650
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 10.5
    Quarter turn types: Quarter turn with handle,Quarter turn for padlock
