Compression latch railway version, Stainless steel AISI 316

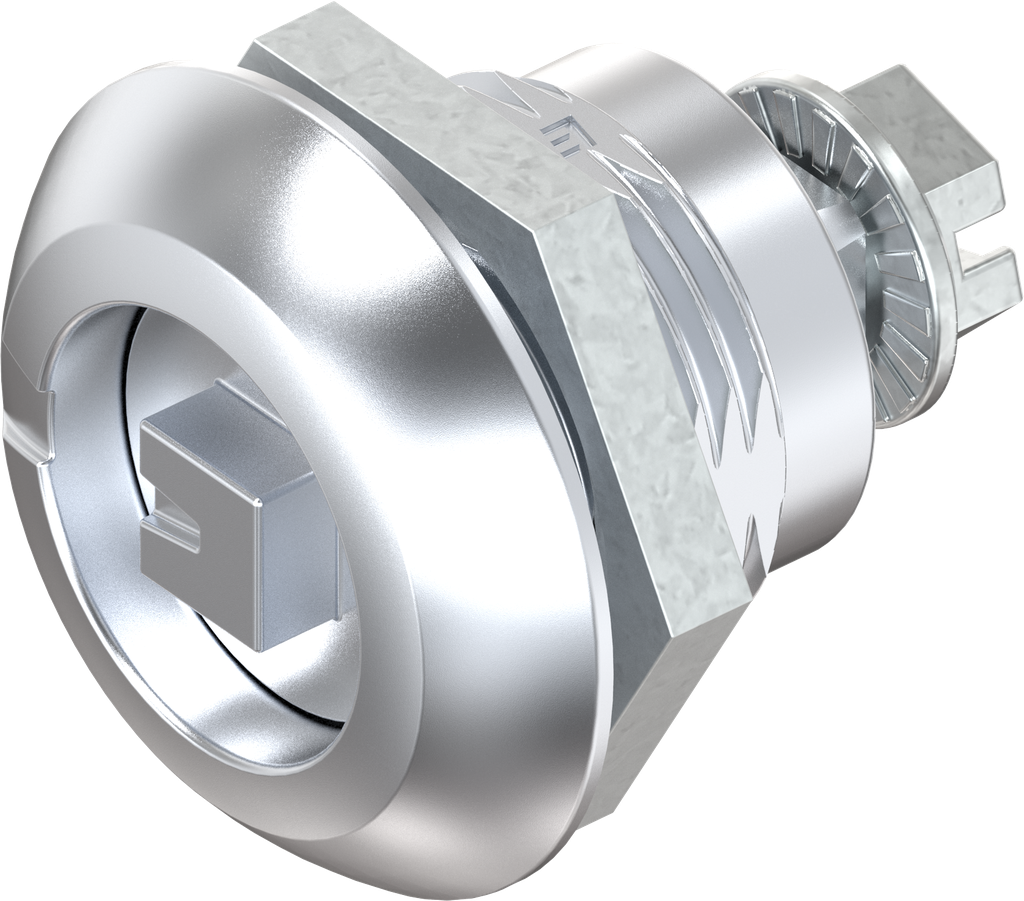

Compression latch, square 7, Stainless steel AISI 316
Product Benefits:
- Compact design
- Compatible with other quarter turns with GH = 18 mm
- Fire protection according to DIN EN 45545-2 with E20
- Short housing GH = 18 mm
- Foamed sealing
- Standard cut out
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U859-IA
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-210
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 7
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

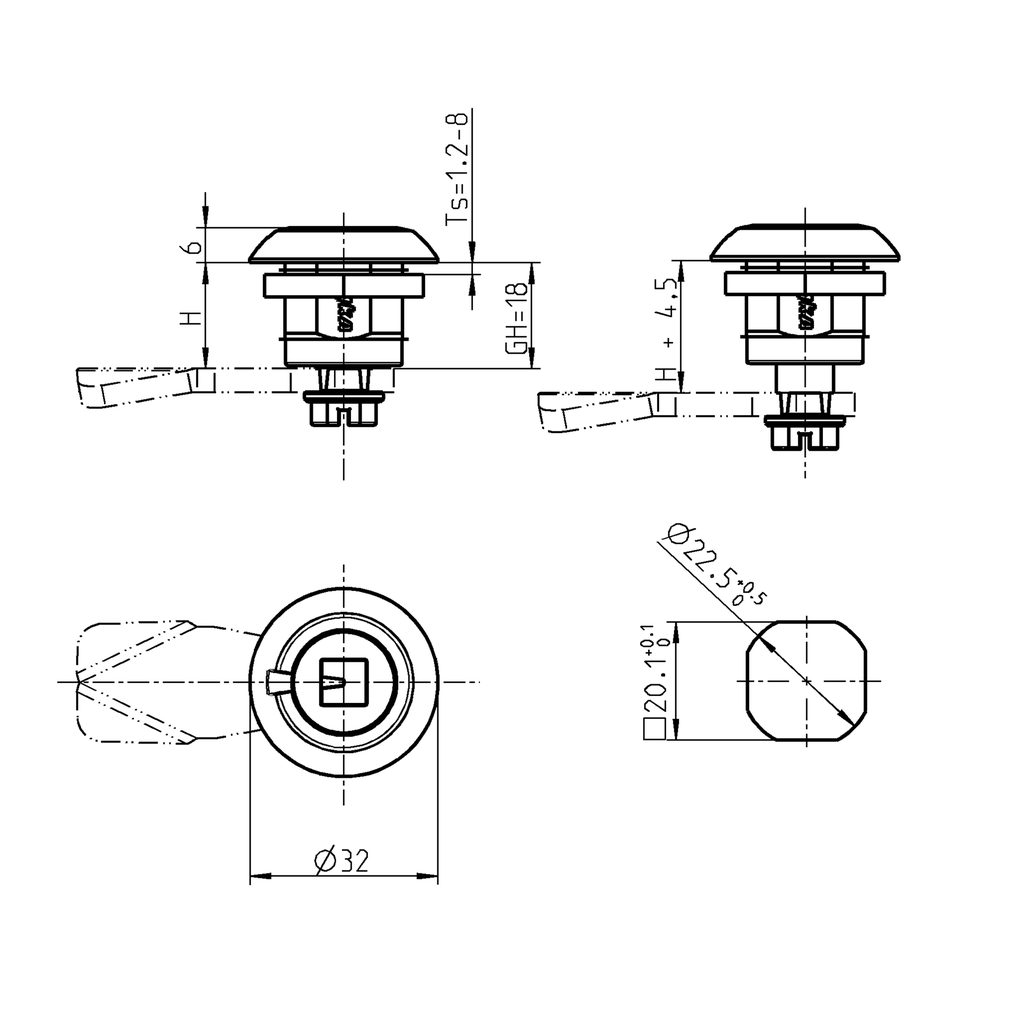

Housing Head Size:
32 x 6 mm
Foamed gasket:
Yes
GH Mass:
18 mm
Compression Value :
4.5 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right

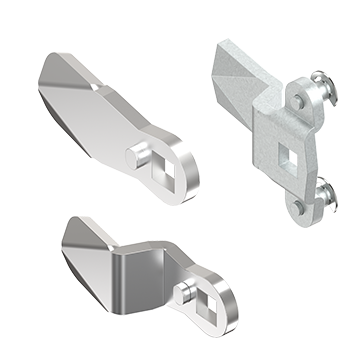

Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
