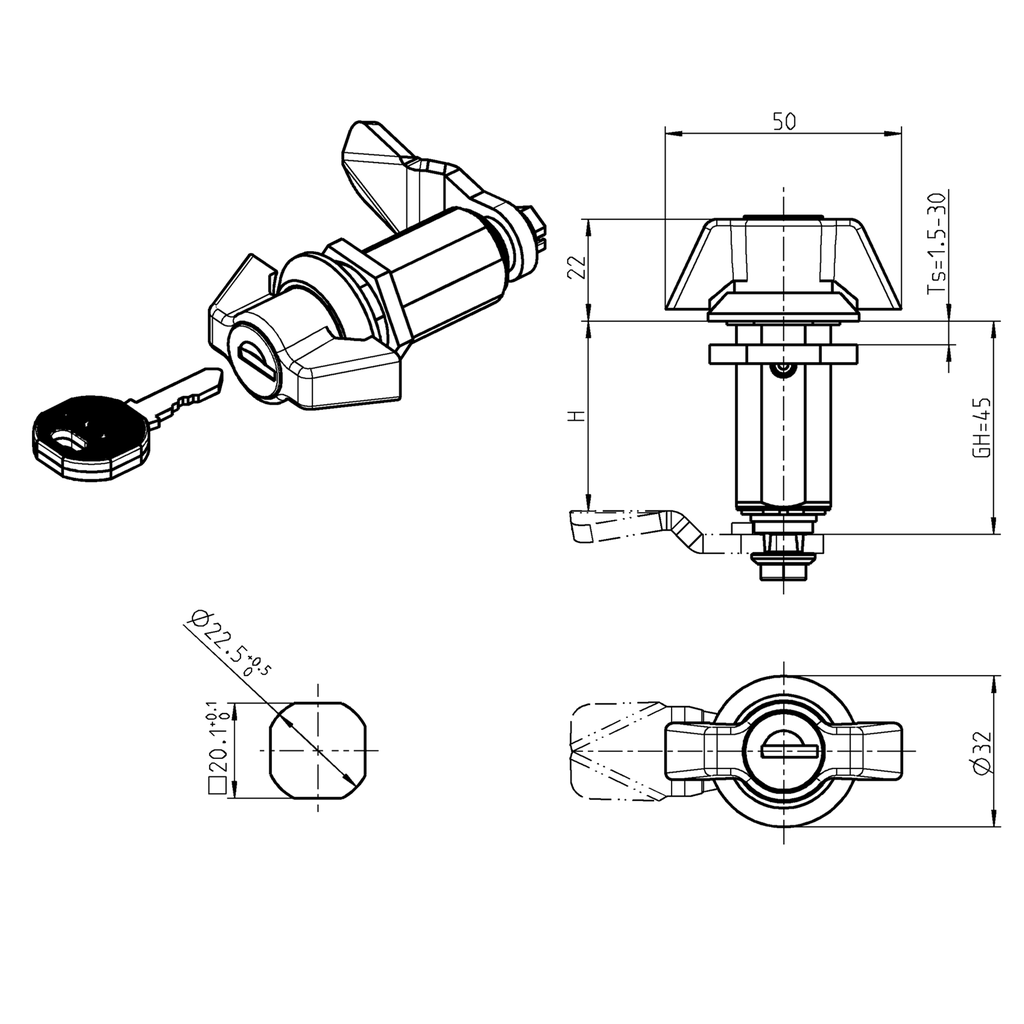

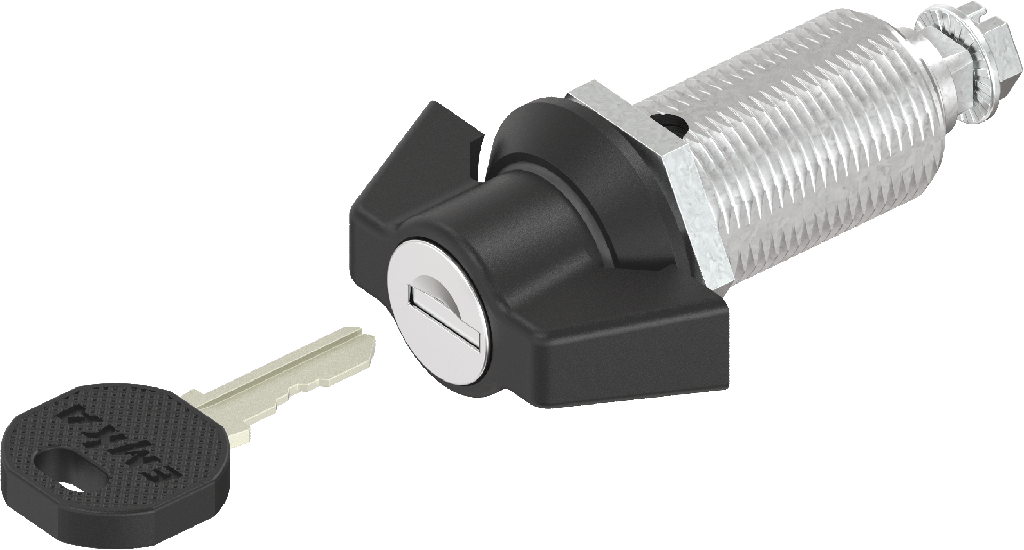

Compression latch with L-handle, keyed different, Zinc die black powder-coated
L-handle - inside handle, Polyamide GF black
Product information:
The compression latch is designed to be vibration-proof as such. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Key removable in both positions.
Internal Reference:
1000-U828
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-230
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
Foamed gasket:
Yes
GH Mass:
45 mm
Handle Art:
Wing knob
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
30 mm
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with handle
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
