Safety quarter turn square 7, Zinc die chrome-plated

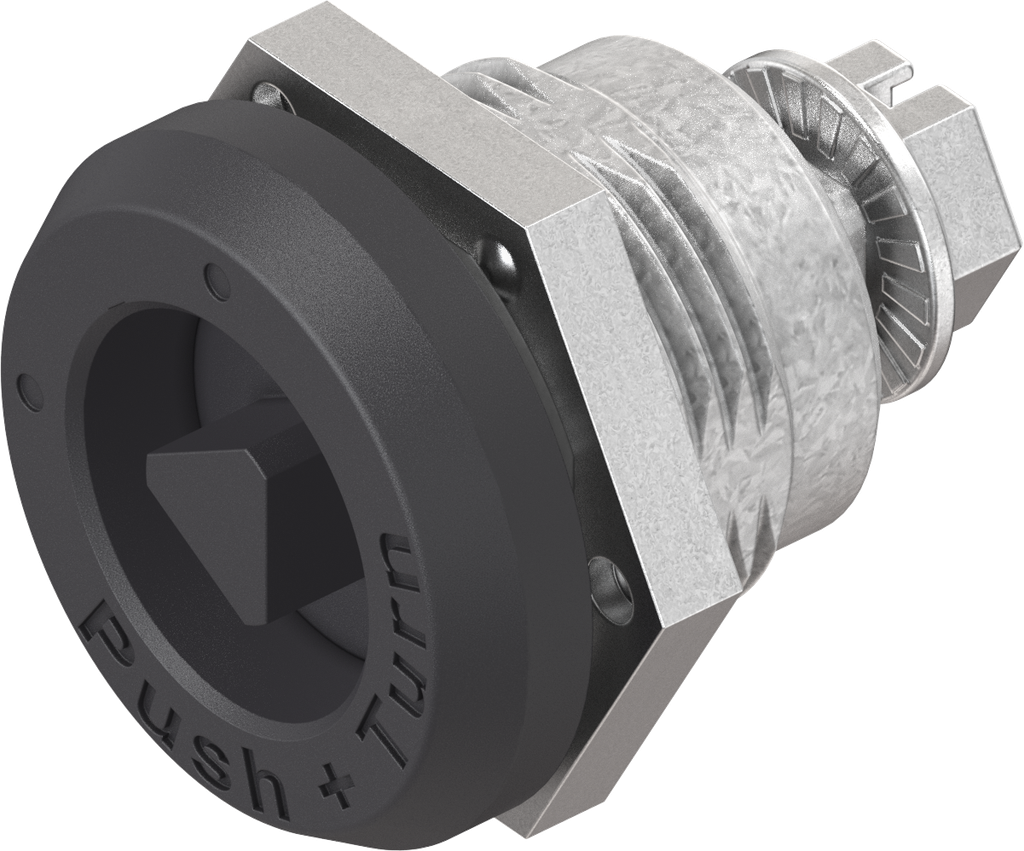

Safety quarter turn triangular 7, Zinc die chrome-plated
Internal Reference:
1000-U817-04AA
Standards:
Protection class IP 65, DIN EN 61373 (shock and vibration testing)
Barcode:
1000-U00817-00004AA
Product Type:
Quarter turn
Program:
1000
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Type of actuation:
Triangular 7
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round

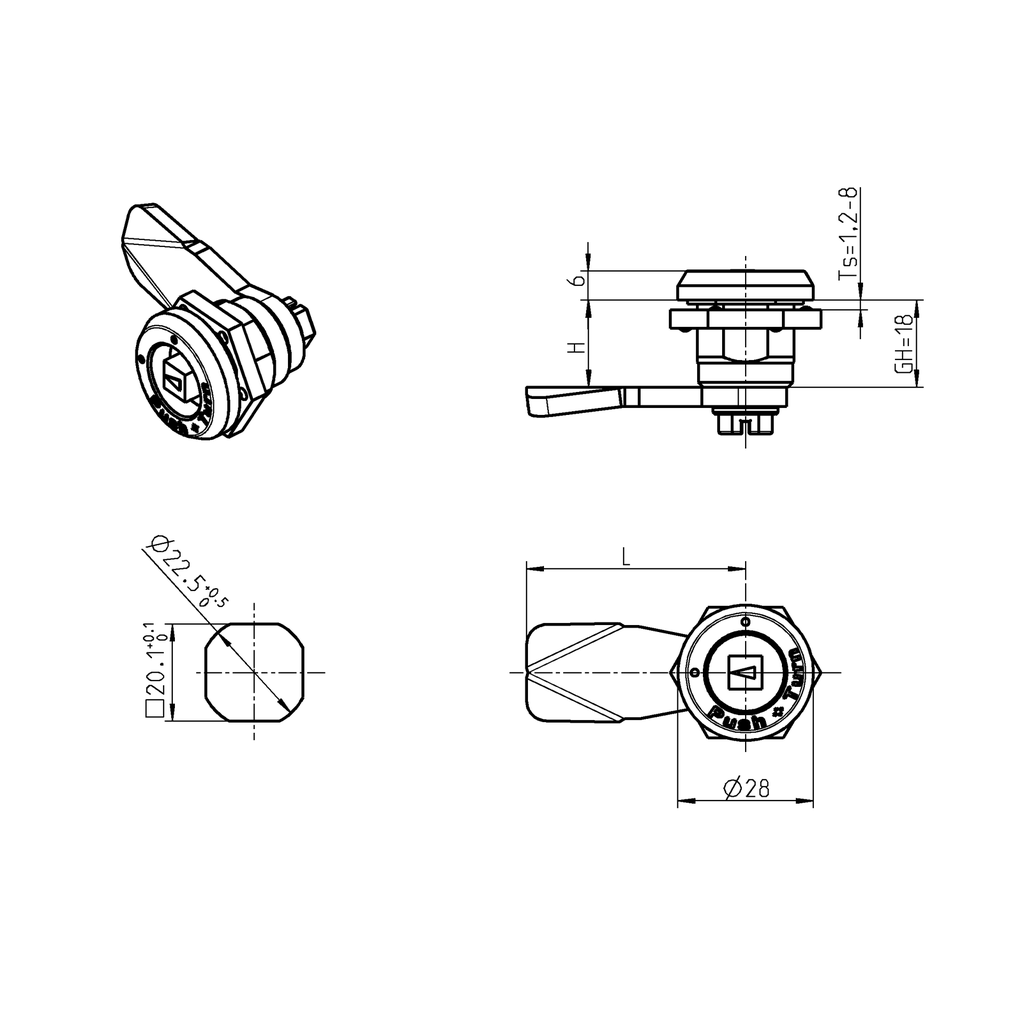

Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
