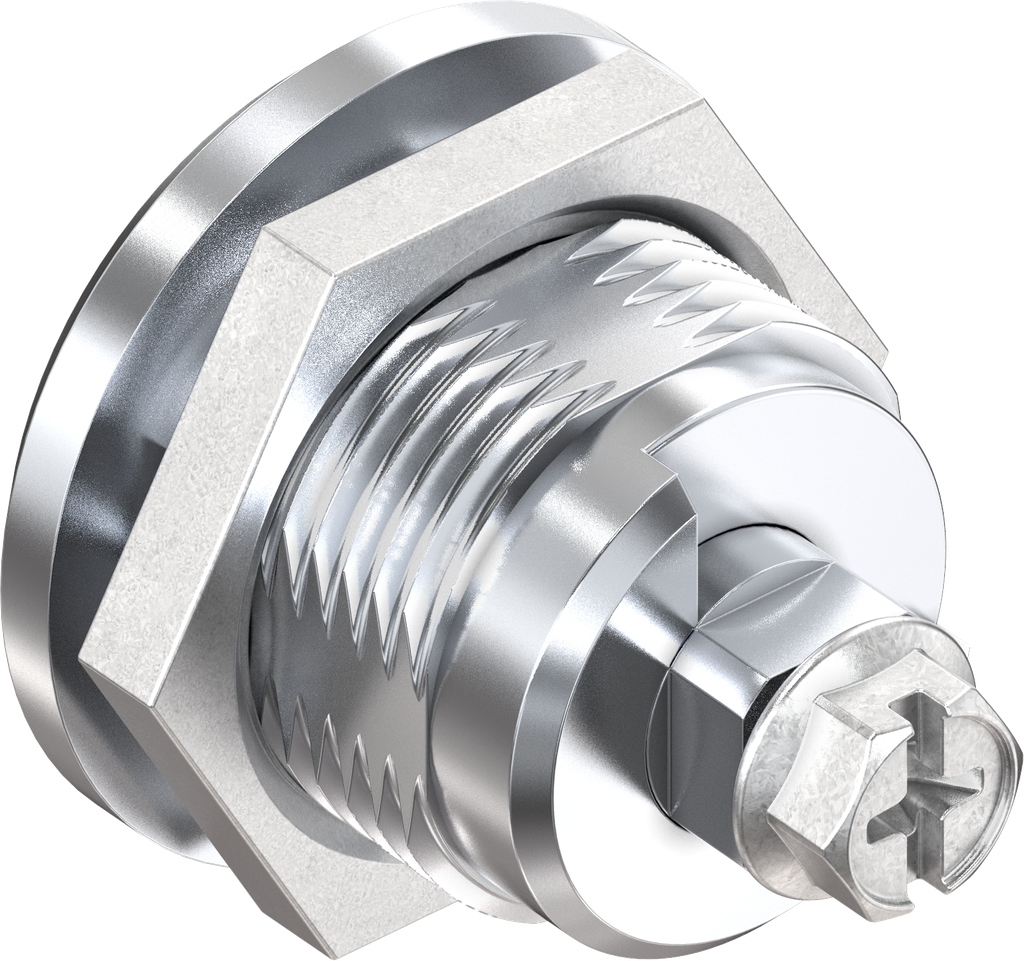

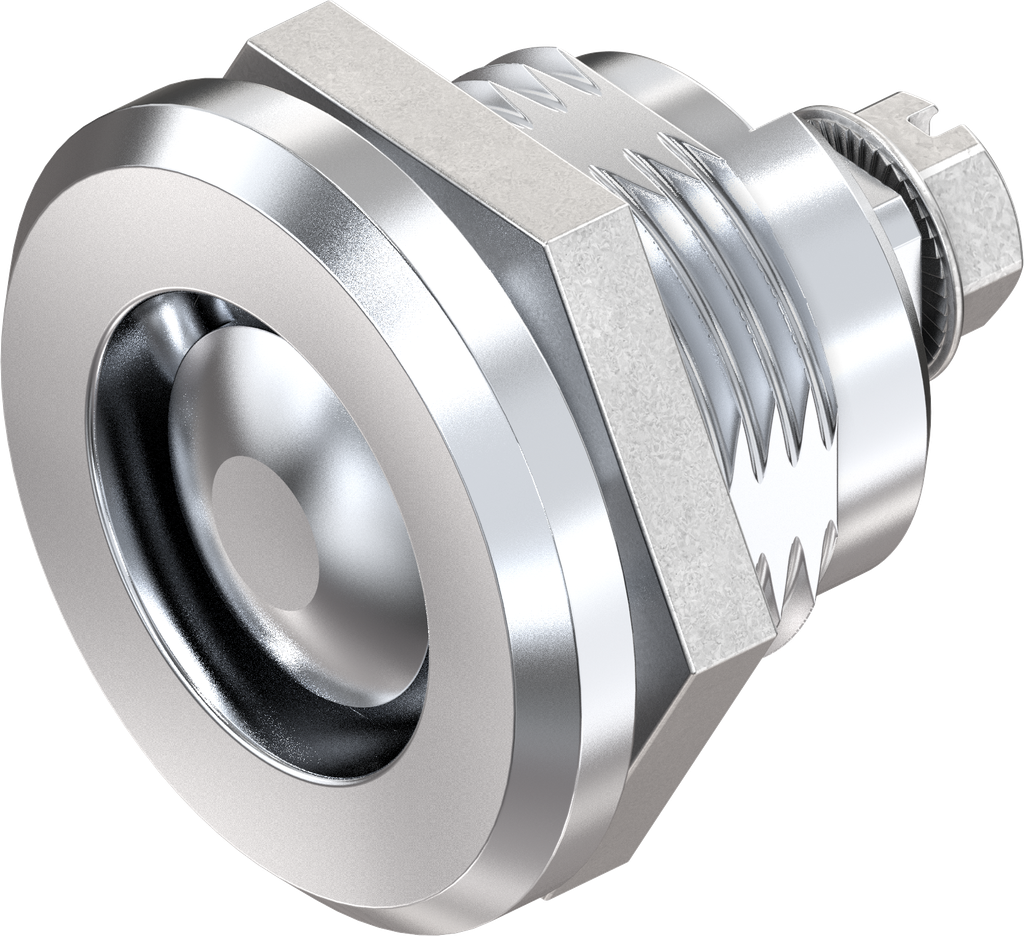

Radial pin-push cylinder, keyed different, Zinc die black powder-coated

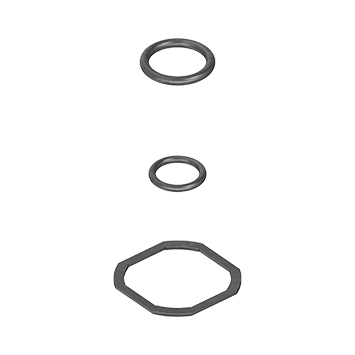

Seal set IP 66 with assembly;
Product information:
EBR standard
Internal Reference:
1000-U768
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-840
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
CEWE with 2 pins
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
30 x 4 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
