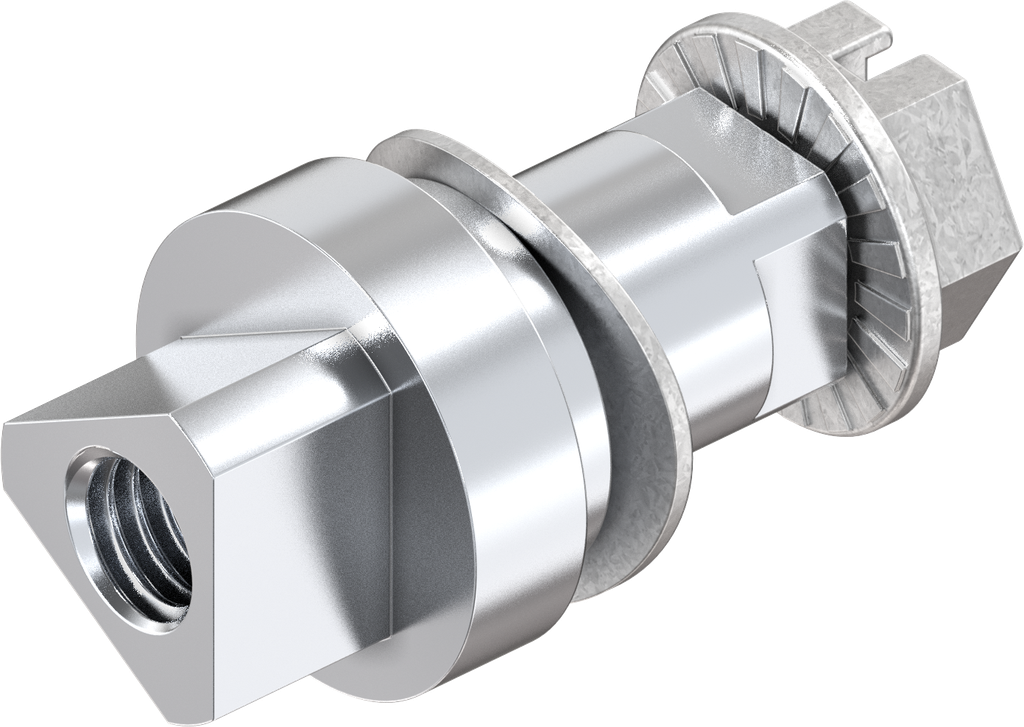

Insert with female thread M6 triangular 10, Zinc die chrome-plated; 1000-U763

https://www.emka.com/products/1000-u763 https://www.emka.com/web/image/product.template/60301/image_1920?unique=03d9382


    This combination does not exist.



    Key features:

    This product is a modular component of a UL-certified closure.

    Internal Reference: 1000-U763
    Product Type: Insert
    Program: 1000
    Catalog sheet: 1B-720
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Insert for: Insert for housing, classic,Insert for housing for door lock, prominent
    Type of actuation: Triangular 10 top with M6 female thread
    For GH measure: 18 mm
    O-ring position: Hub
    Locking set: Insert
    Screw Fastening: Metric
    No Specifications
    View All Products

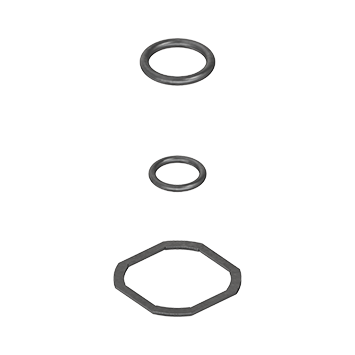

    O-ring and flat seal

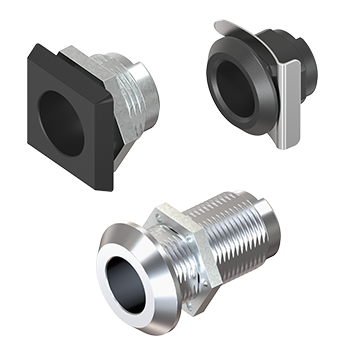

    Housing

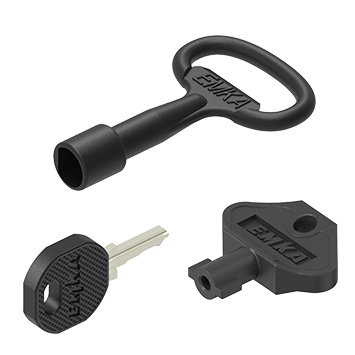

    Keys
    Here you can find the product data sheets and CAD files of this product
