Radial pin-push cylinder, keyed 20001, Zinc die black powder-coated
Radial pin-push cylinder, keyed 20001, Zinc die black powder-coated
Wing knob quarter turn, keyed EK 333, Polyamide black
Wing knob quarter turn, keyed EK 333, Polyamide black

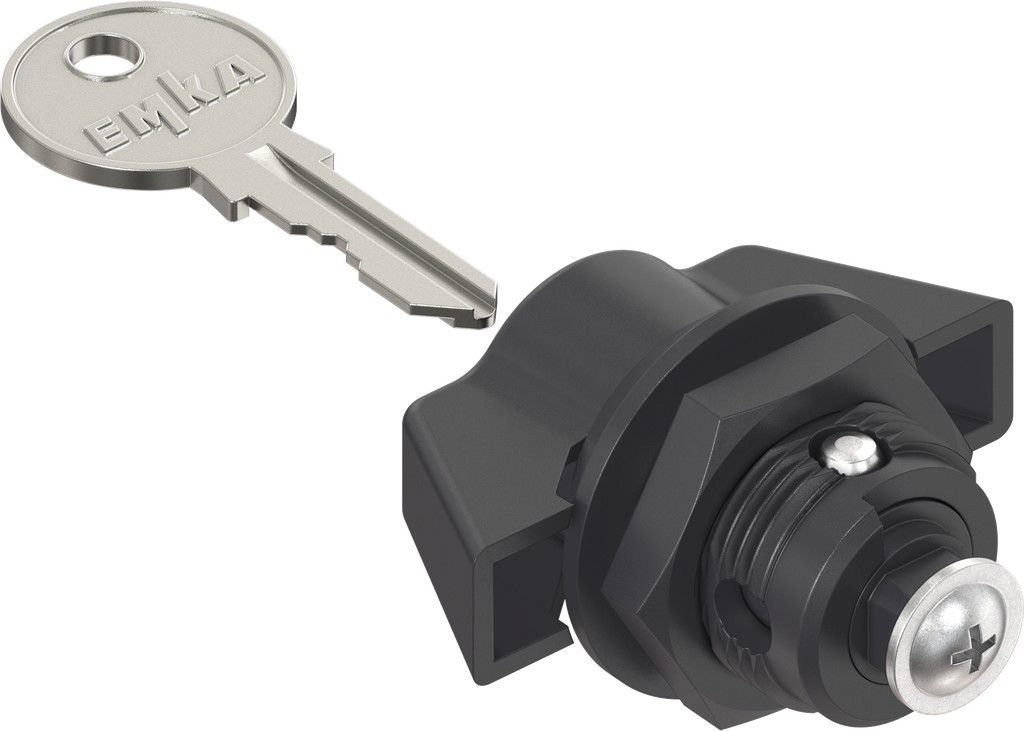

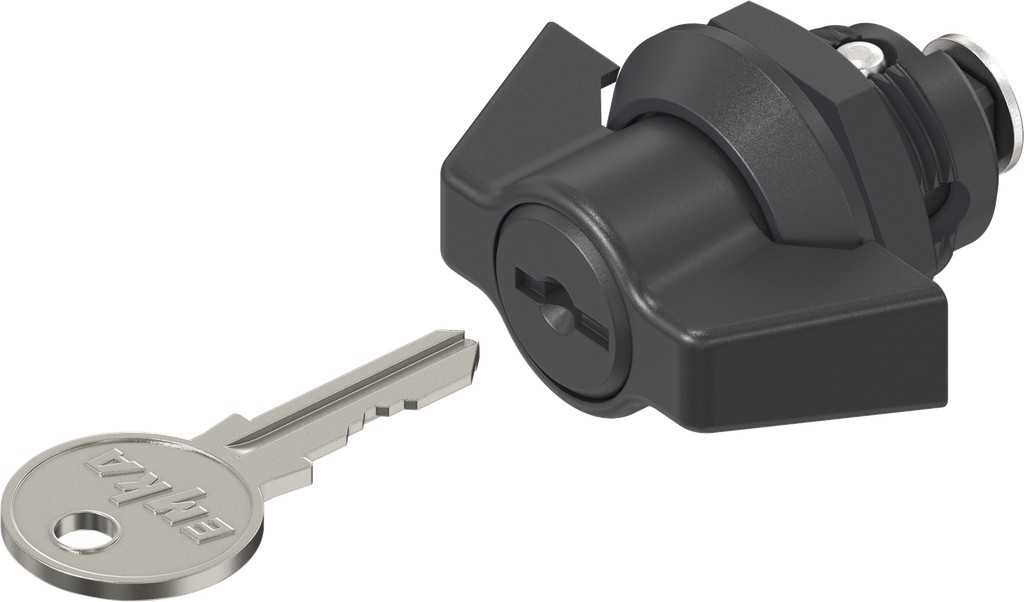

Wing knob quarter turn, keyed different, Polyamide black; 1000-U753

https://www.emka.com/products/1000-u753 https://www.emka.com/web/image/product.template/60292/image_1920?unique=2380851

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 40 Left Right


    Product information:

    Key removable in both positions.

    Internal Reference: 1000-U753
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-540
    Material of the module : Polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control

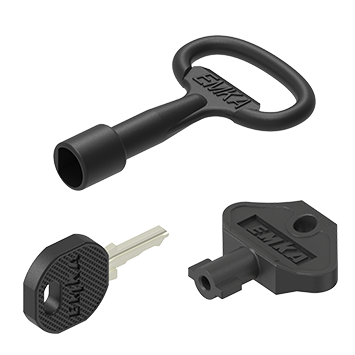

    Keys
    Here you can find the product data sheets and CAD files of this product
