Housing, right version, Polyamide GF black
Radial pin-push cylinder, keyed different, Zinc die black powder-coated

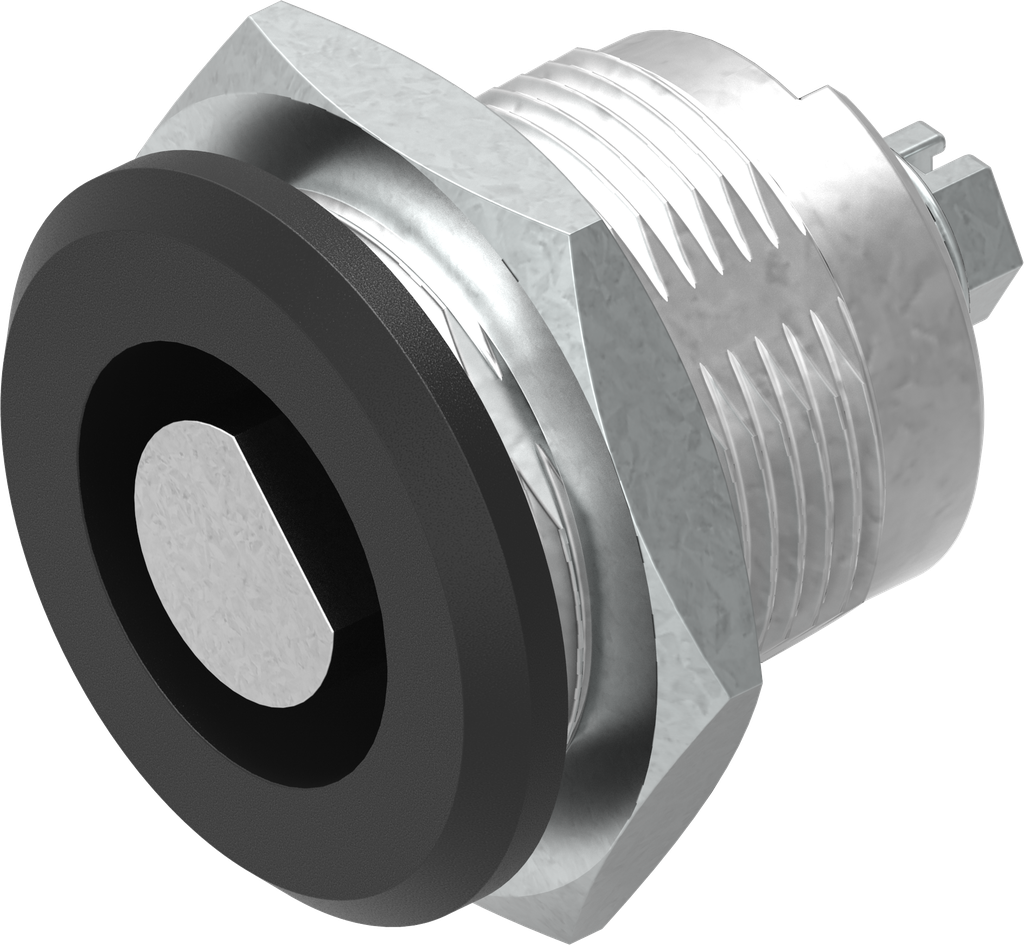

Safety quarter turn Eastern Europe Ø 13 half-round, Zinc die black powder-coated; 1000-U746-01
with nut
Product information:

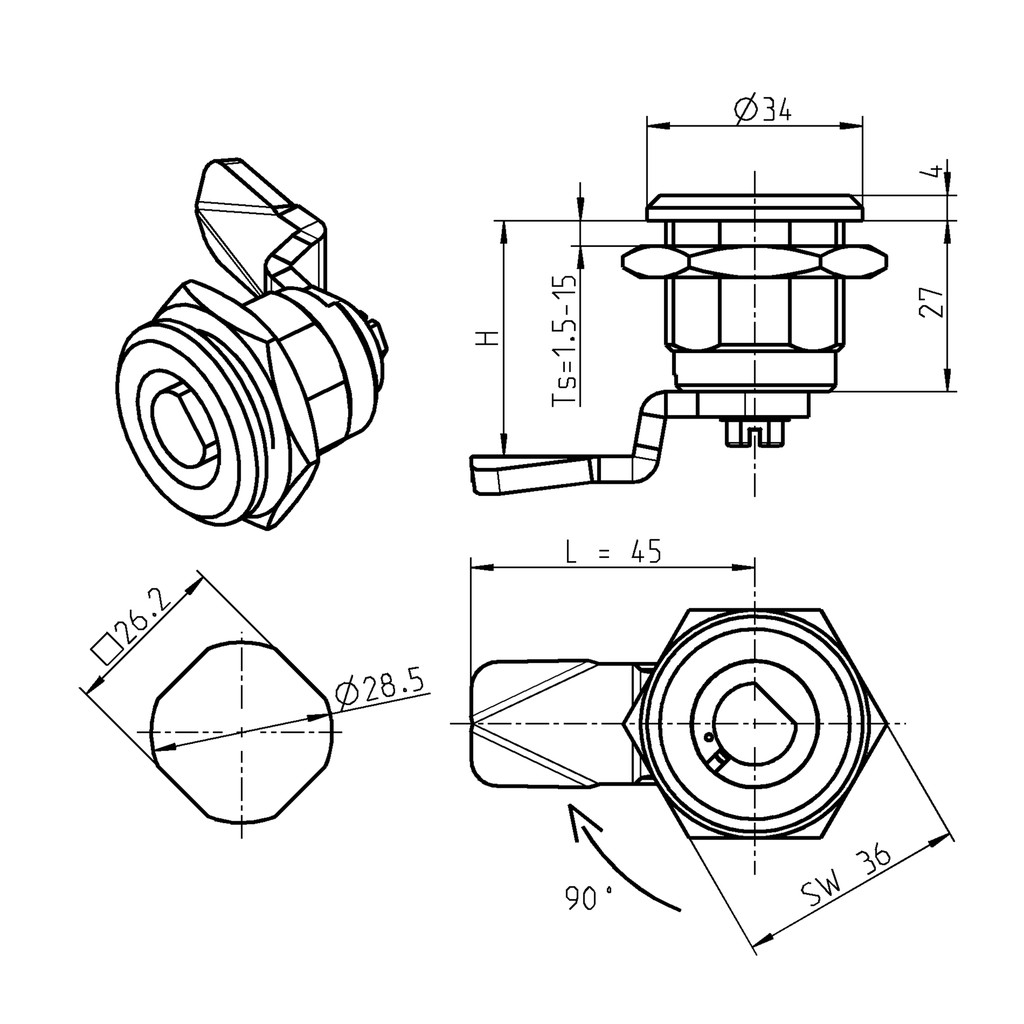

Attention: cut out differs from standard
The spring-loaded insert (direction of arrow) (type: Eastern Europe Ø 13 half-round) can only be operated with a special key. This special key is only removable in locked position.
Internal Reference:
1000-U746-01
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-340
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Eastern Europe Ø 13 half-round
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
34 x 4 mm
GH Mass:
27 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
15 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
