Housing, right version, Polyamide GF black
Safety quarter turn Eastern Europe Ø 13 half-round, Zinc die black powder-coated

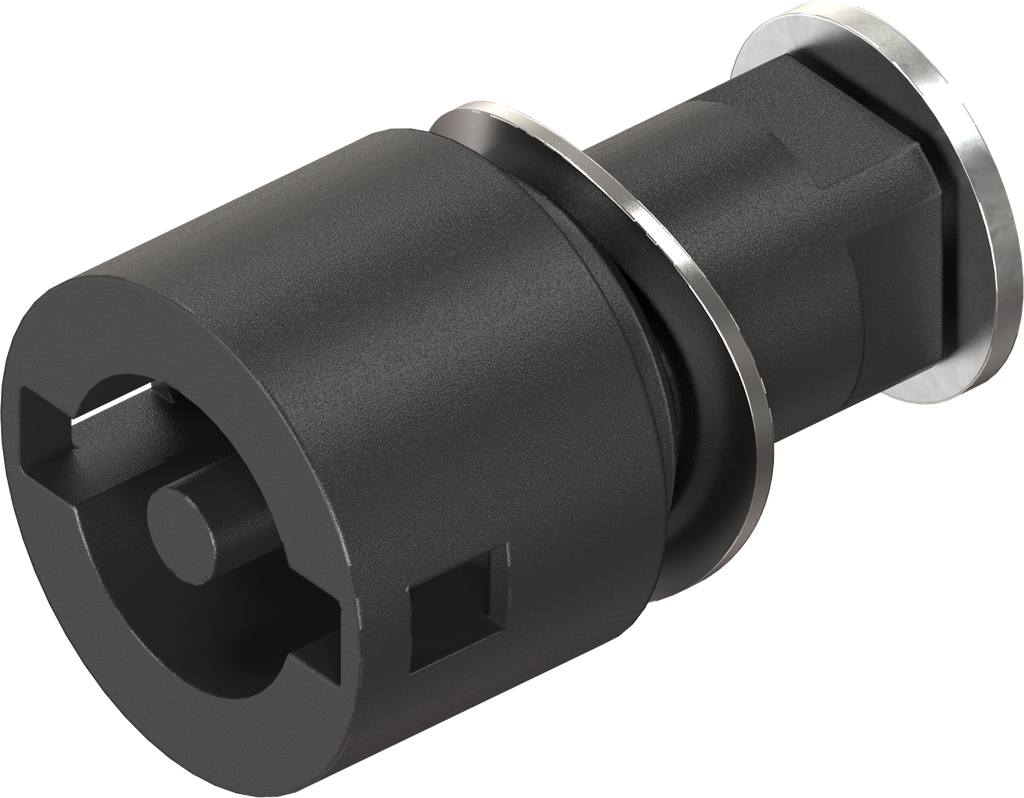

Insert double bit 3 for clip-in key, Polyamide black; 1000-U745
No stock item, please ask for availability
Product Benefits:
Key can be used as handleFunction:

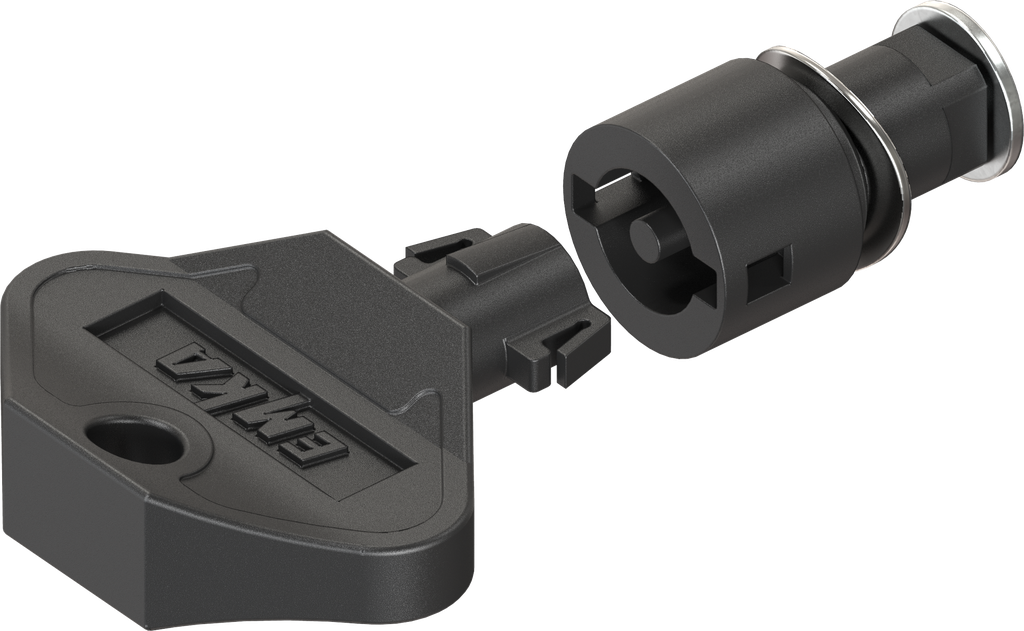

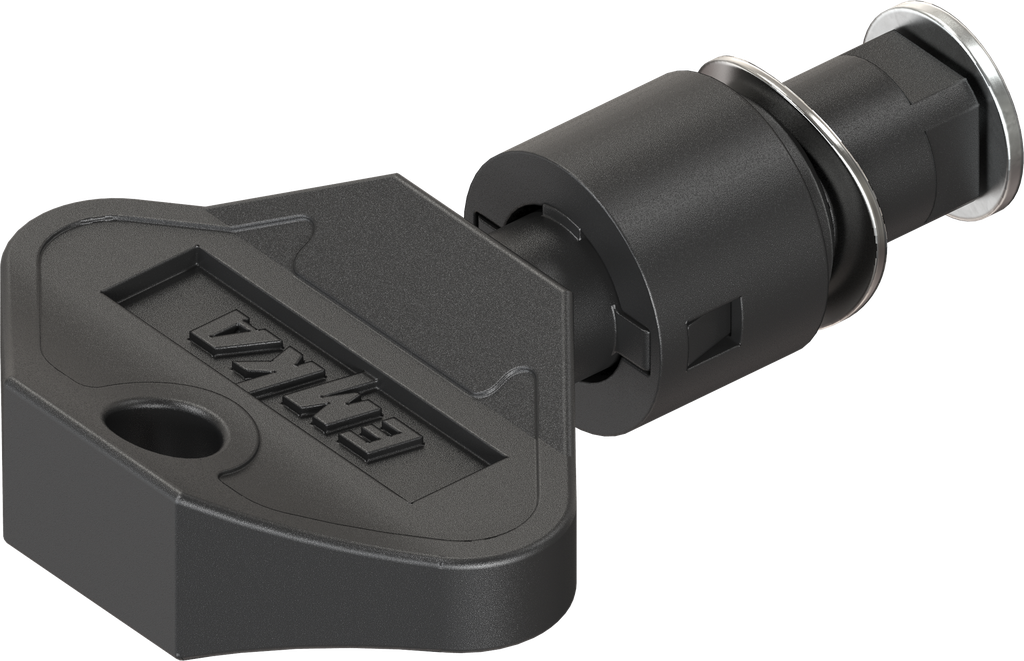

The key clips into the insert with its clip-in arms and is captivated.The key cannot be removed without destruction unless lock is disassembled.
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U745
Barcode:
1000-U00745-0000000
Product Type:
Insert
Program:
1000
Catalog sheet:
1B-720
Material of the module :
Polyamide
Surface of the module:
black
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Insert for:
Insert for housing, classic
Type of actuation:
Double bit 3
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Self-cutting
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
