Radial pin-push cylinder, keyed different, Zinc die chrome-plated
Compression latch double bit 5, Zinc die black powder-coated

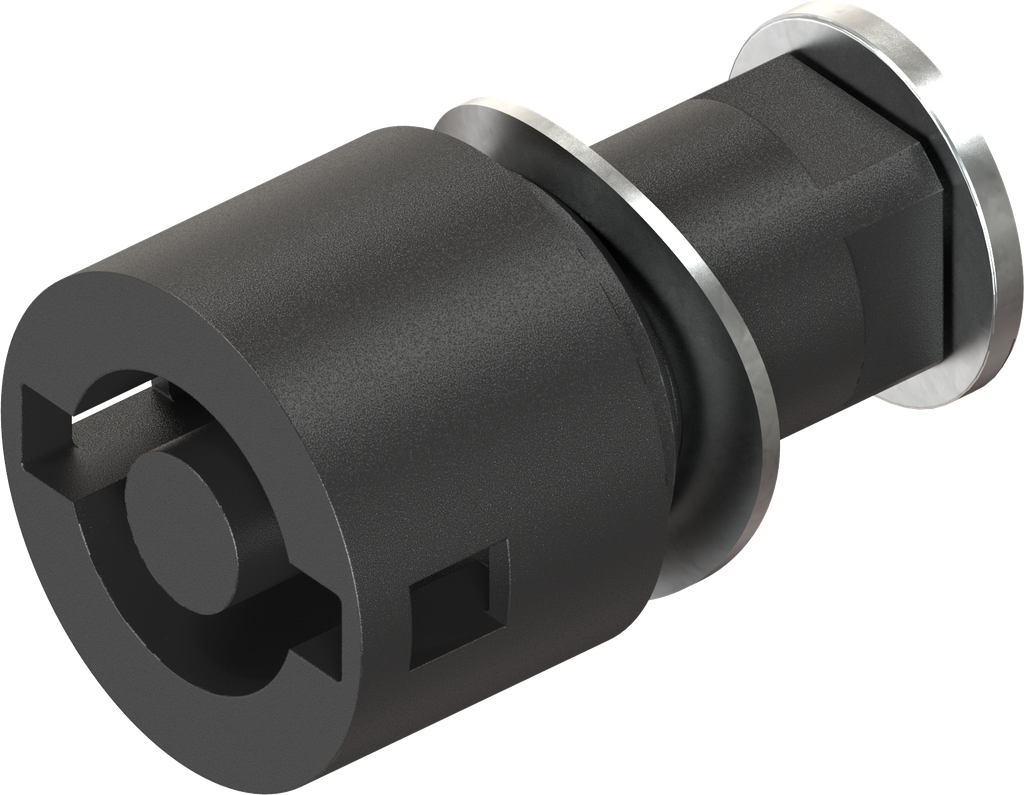

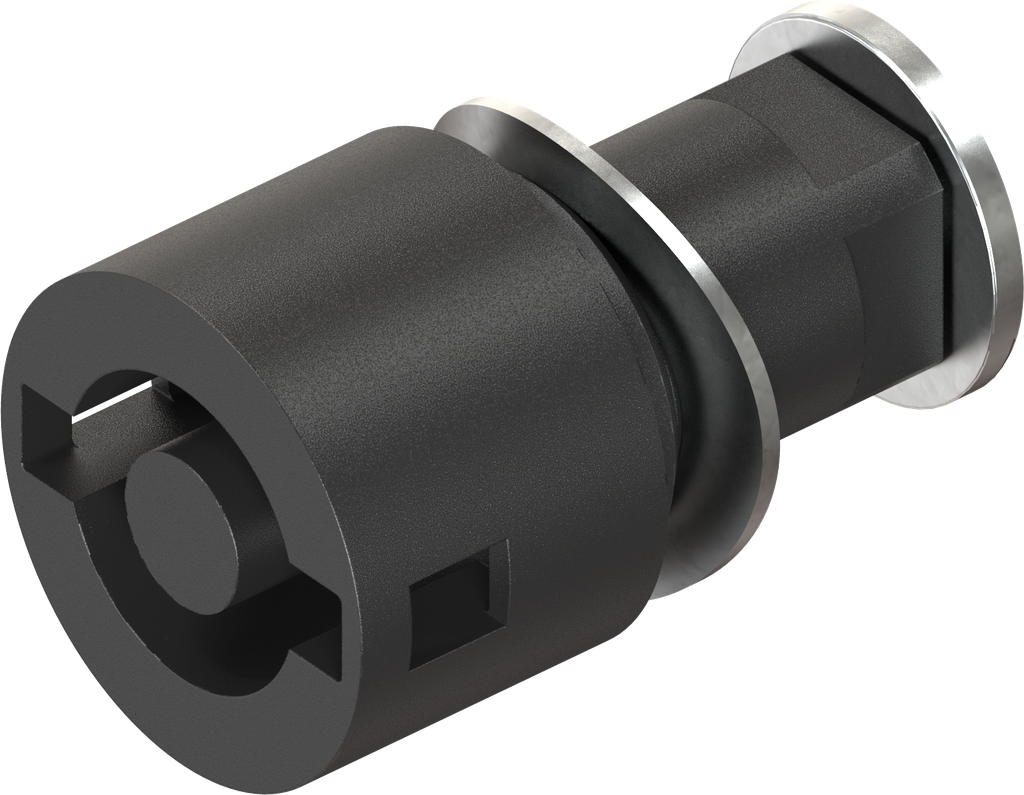

Insert double bit 5 for clip-in key, Polyamide black; 1000-U744
This product has no valid combination.
Product Benefits:
Key can be used as handle
Function:

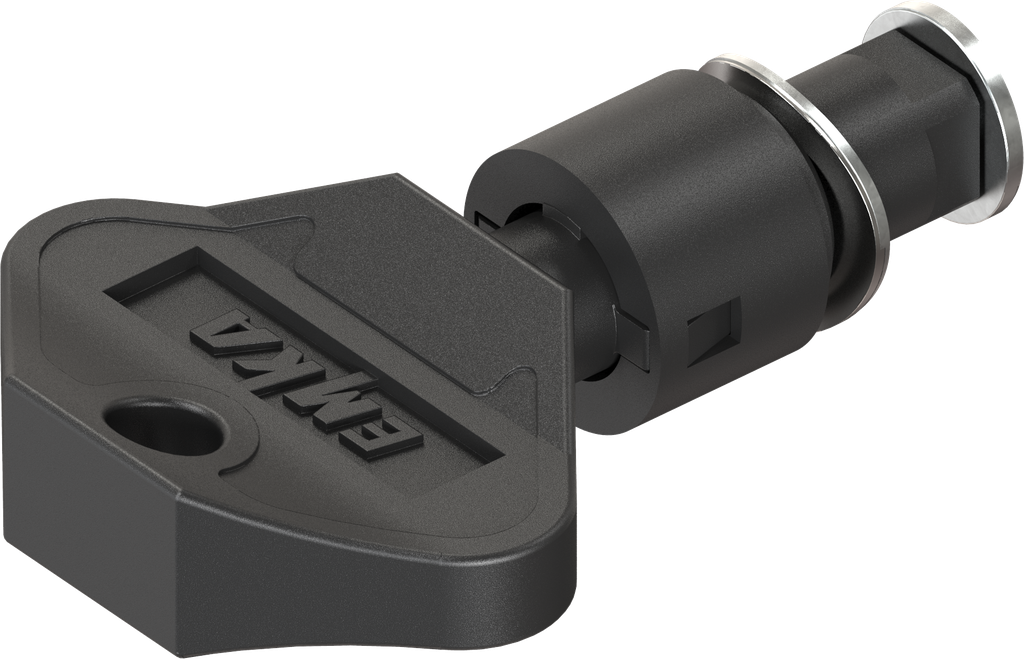

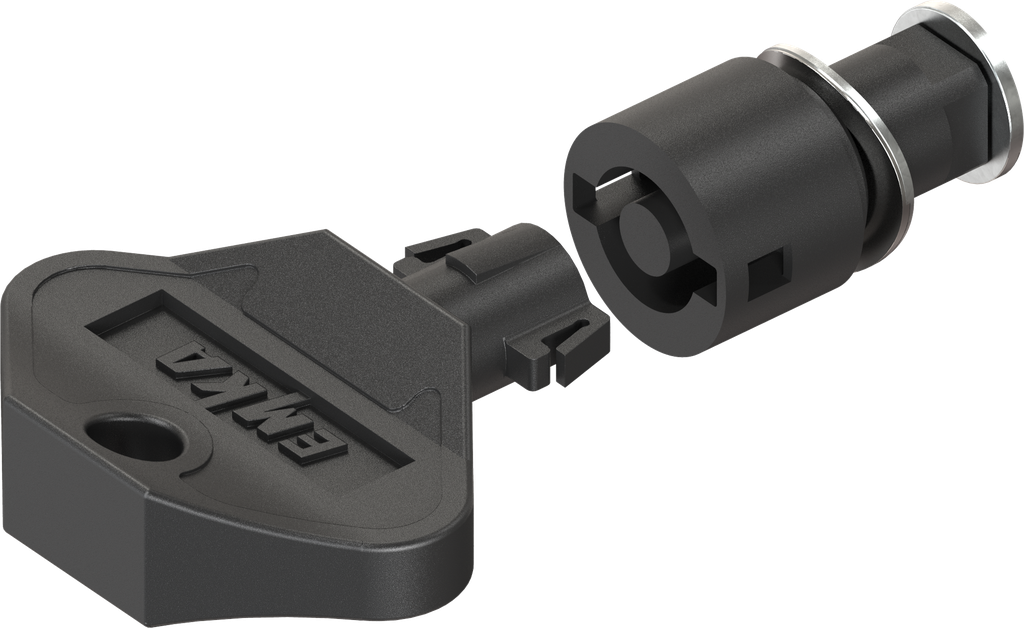

The key clips into the insert with its clip-in arms and is captivated.
The key cannot be removed without destruction unless lock is disassembled.
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U744
Product Type:
Insert
Program:
1000
Catalog sheet:
1B-720
Material of the module :
Polyamide
Surface of the module:
black
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Insert for:
Insert for housing, classic
Type of actuation:
Double bit 5
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Self-cutting
