Housing, left version, Polyamide GF black

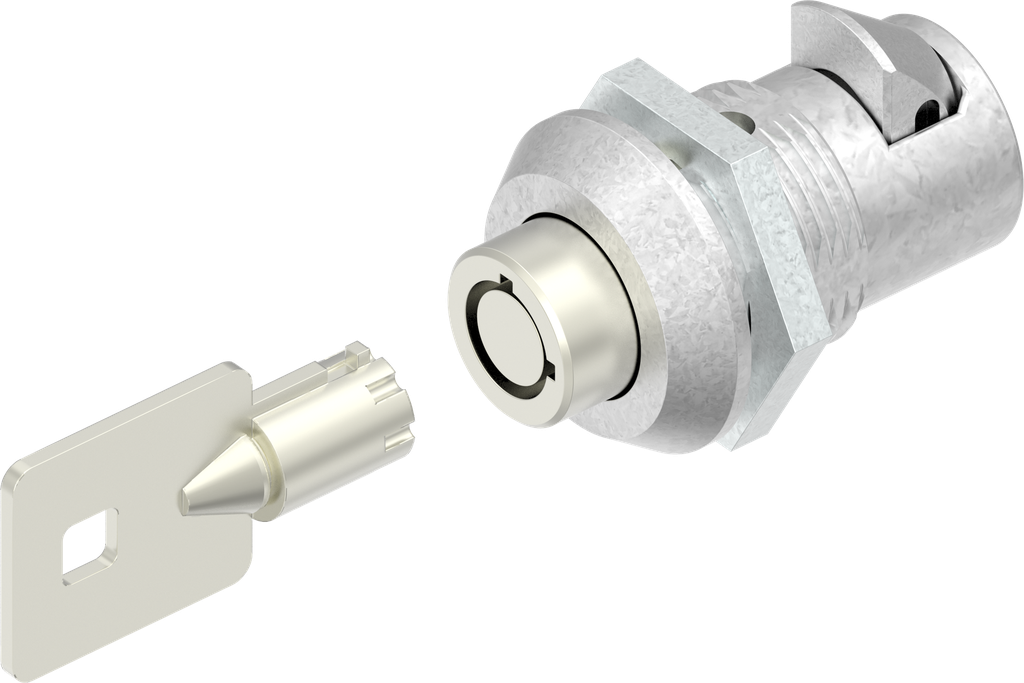

Radial pin-push cylinder, keyed different, Zinc die chrome-plated
Function:
By turning the key 90° the push button is unlocked and can be operated.
The key is removable in both positions.
Internal Reference:
1000-U742
Standards:
Protection class IP 40
Barcode:
1000-U00742-0000000
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-380
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
28 x 6 mm
GH Mass:
31 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
8 mm
Radial Pin Cylinder:
Keyed alike 20001
Locking set:
Radial cylinder
snap function:
Yes
Door Version :
Left,Right
Quarter turn types:
Quarter turn with cylinder
