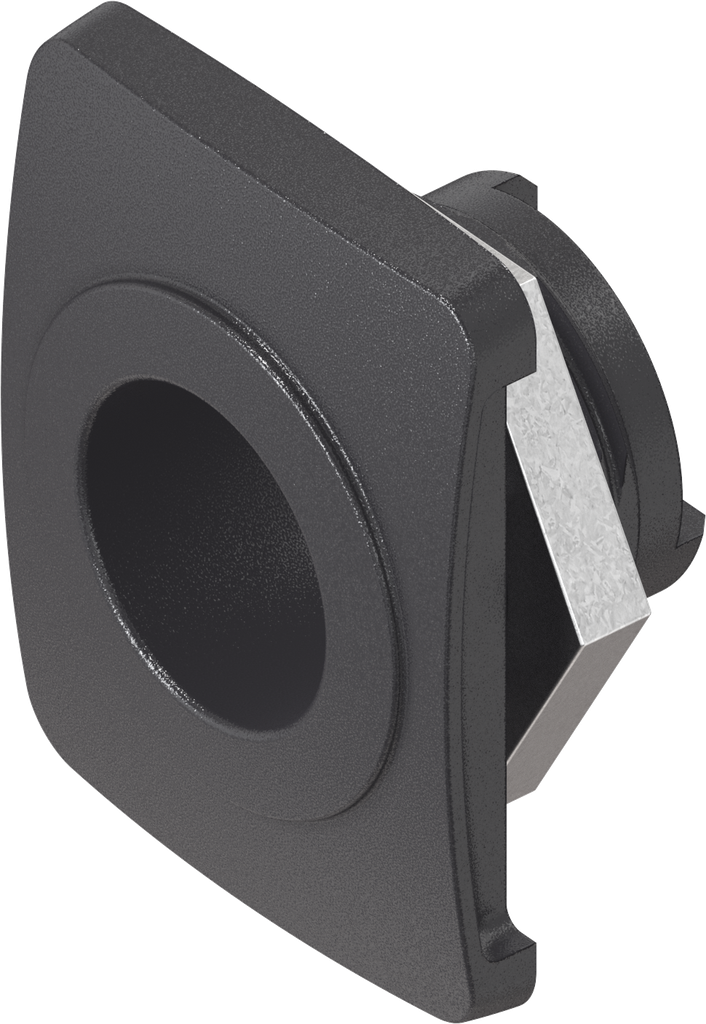

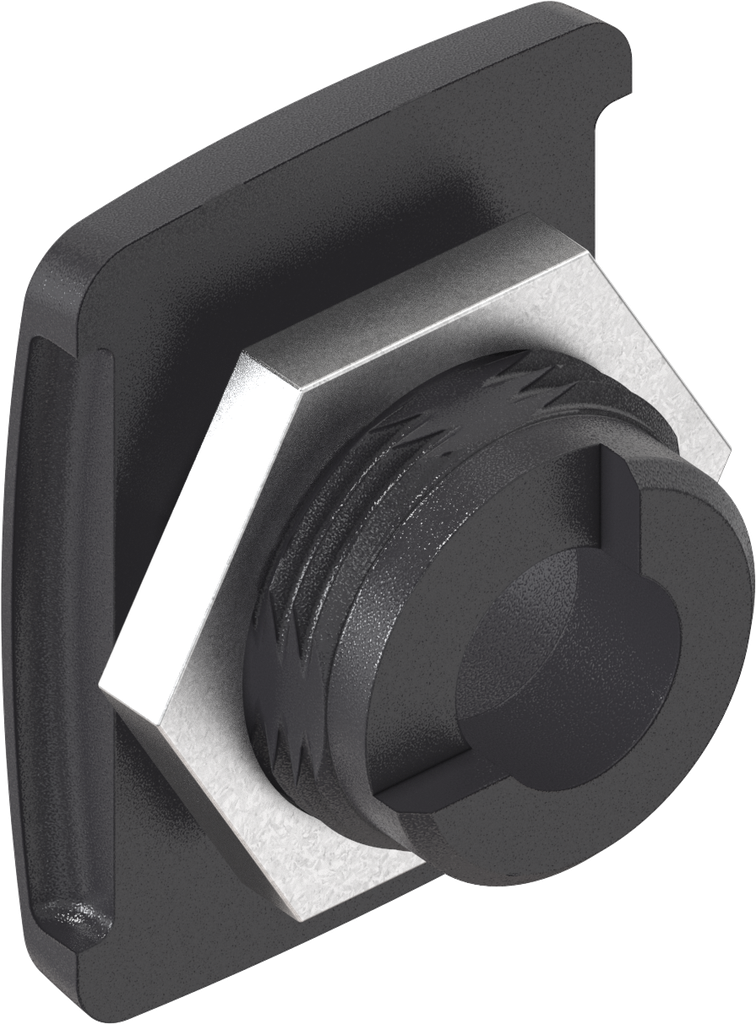

Housing, left version, Polyamide GF black; 1000-U740-01

https://www.emka.com/products/1000-u740-01 https://www.emka.com/web/image/product.template/60283/image_1920?unique=f86255a

with nut

    This combination does not exist.

    Inside the sealing Left
    Contact Us

    Product information:

    This housing has a length of 15 mm.
    Internal Reference: 1000-U740-01
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-760
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Square

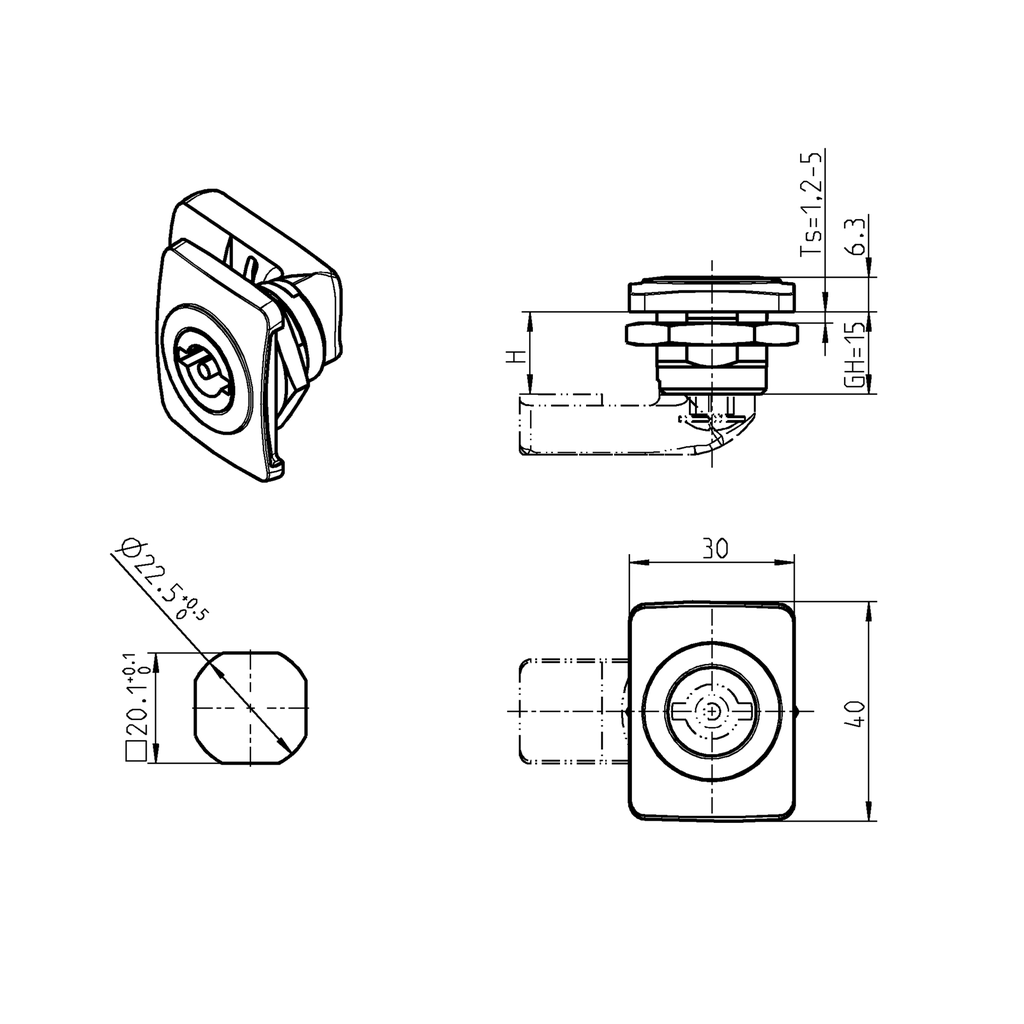

    Housing Head Size: 40 x 30 x 6,3 mm
    GH Mass: 15 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 5 mm
    Locking set: Insert
    Door Version : Left
    Locking components: Cam
    Cam Body Style: Housing for insert, classic
    Quarter turn types: Quarter turn with simple insert
