Product information:

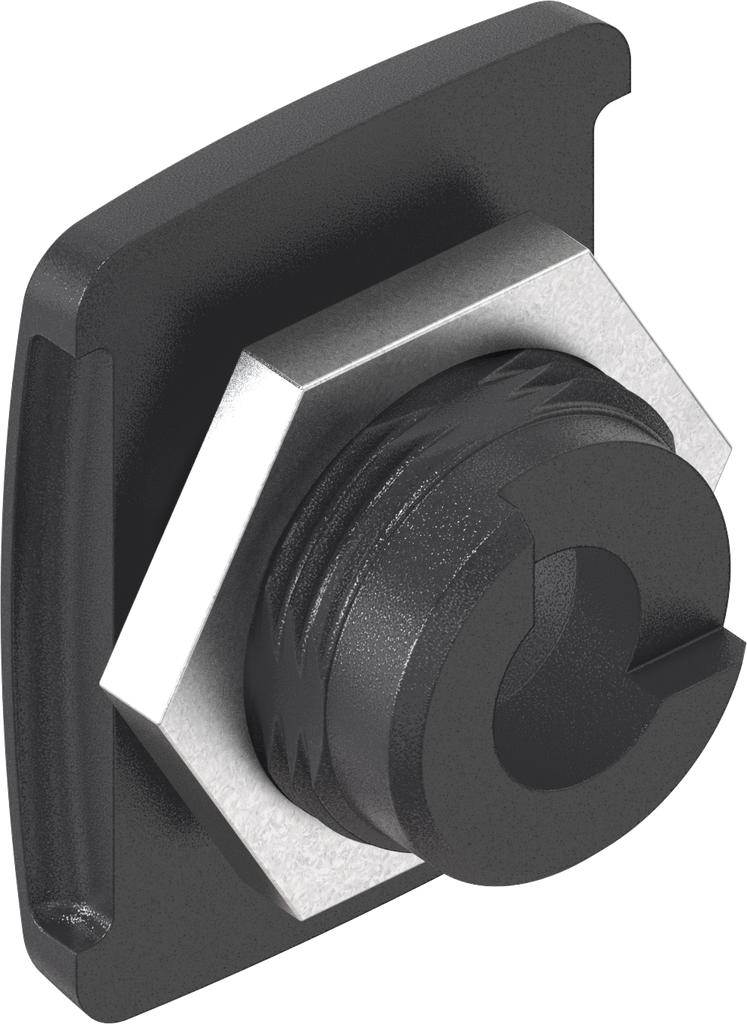

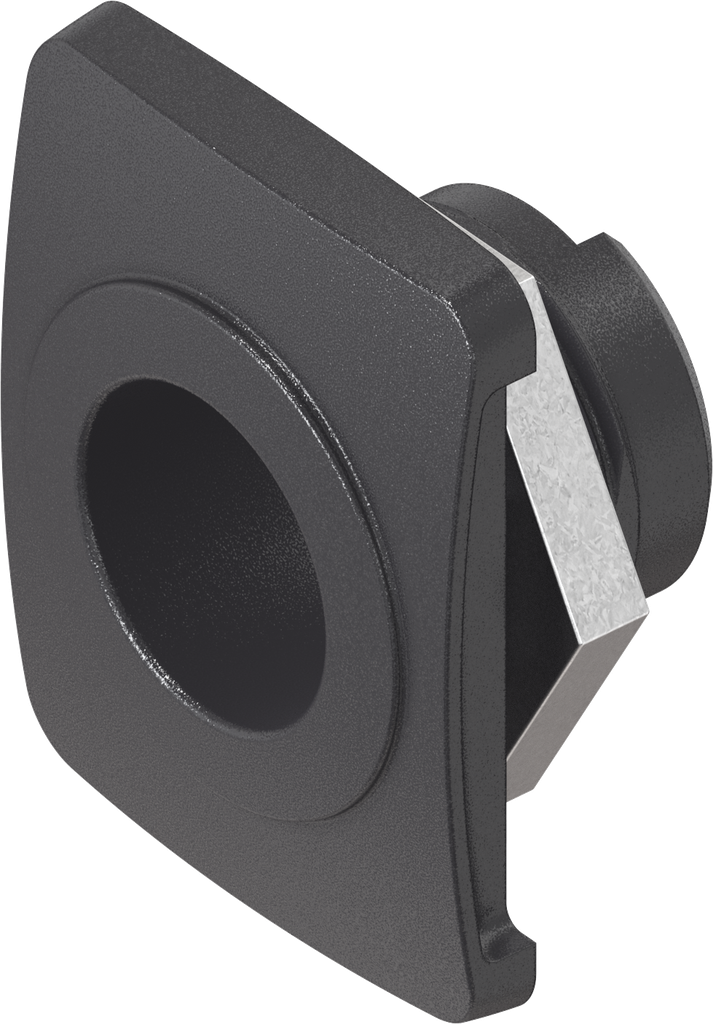

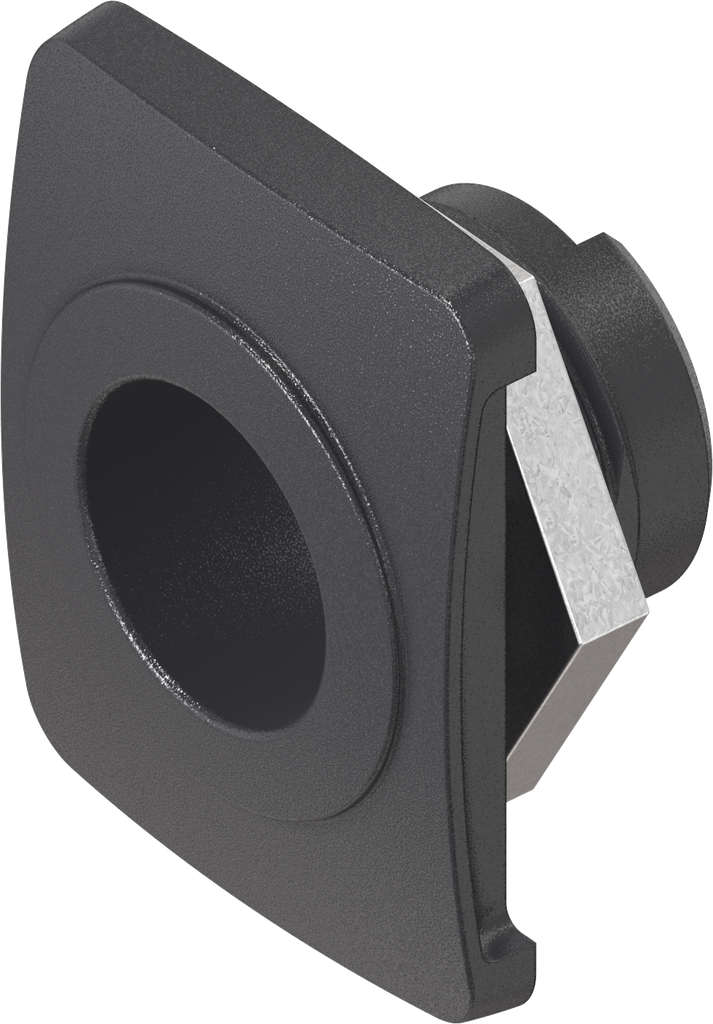

This housing has a length of 15 mm.
Internal Reference:
1000-U740
Product Type:
Housing
Program:
1000
Catalog sheet:
1B-760
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Square

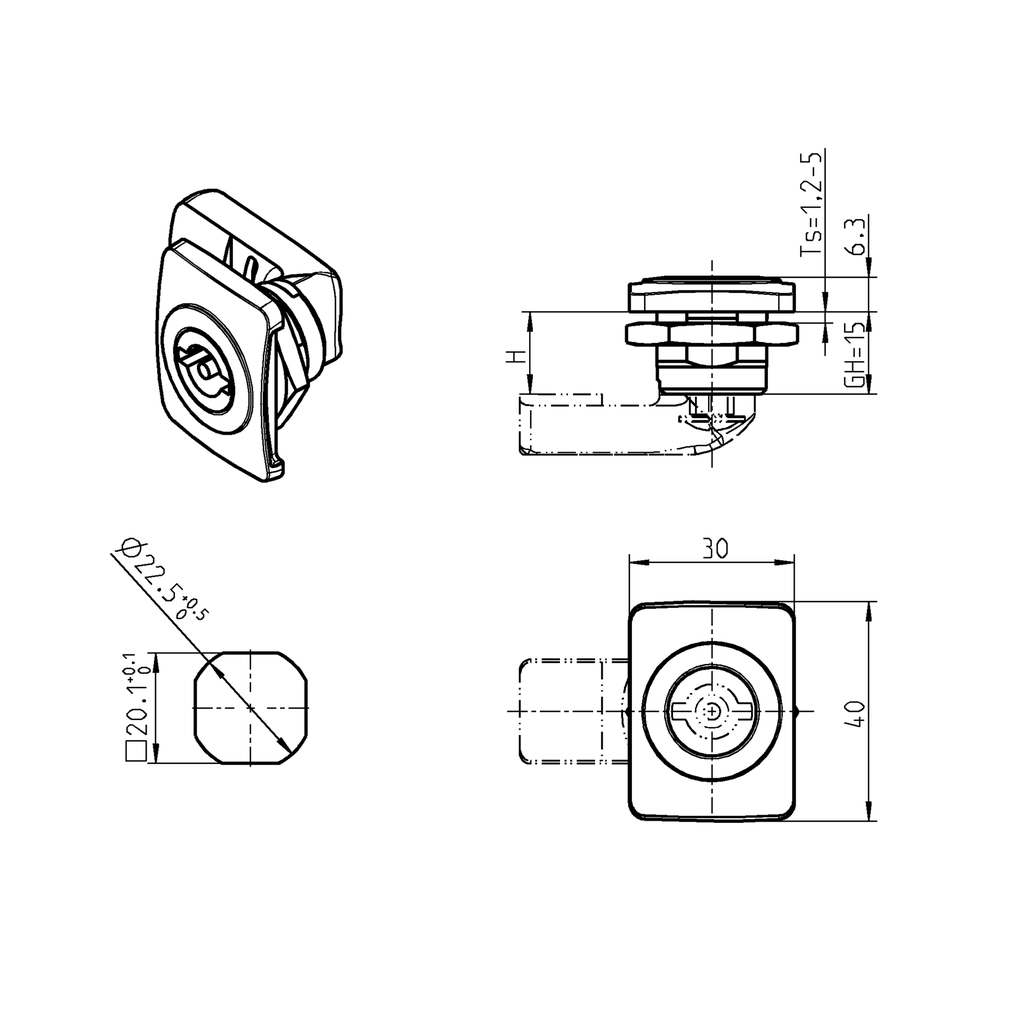

Housing Head Size:
40 x 30 x 6,3 mm
GH Mass:
15 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
5 mm
Locking set:
Insert
Door Version :
Right

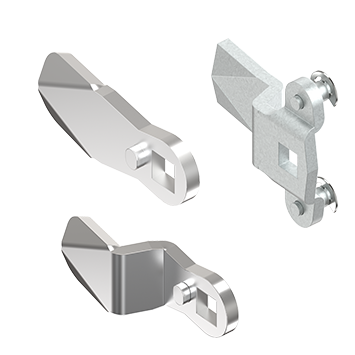

Locking components:
Cam
Cam Body Style:
Housing for insert, classic
Quarter turn types:
Quarter turn with simple insert
