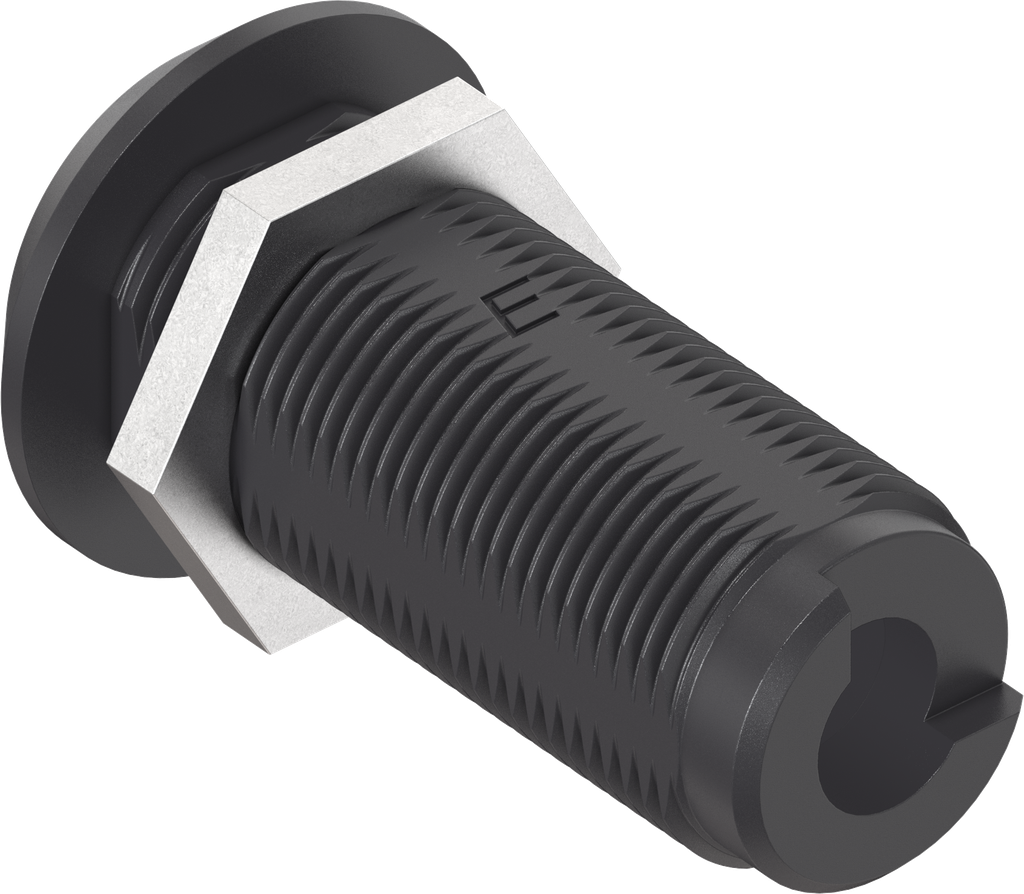

Housing, Polyamide black
Housing, Polyamide black

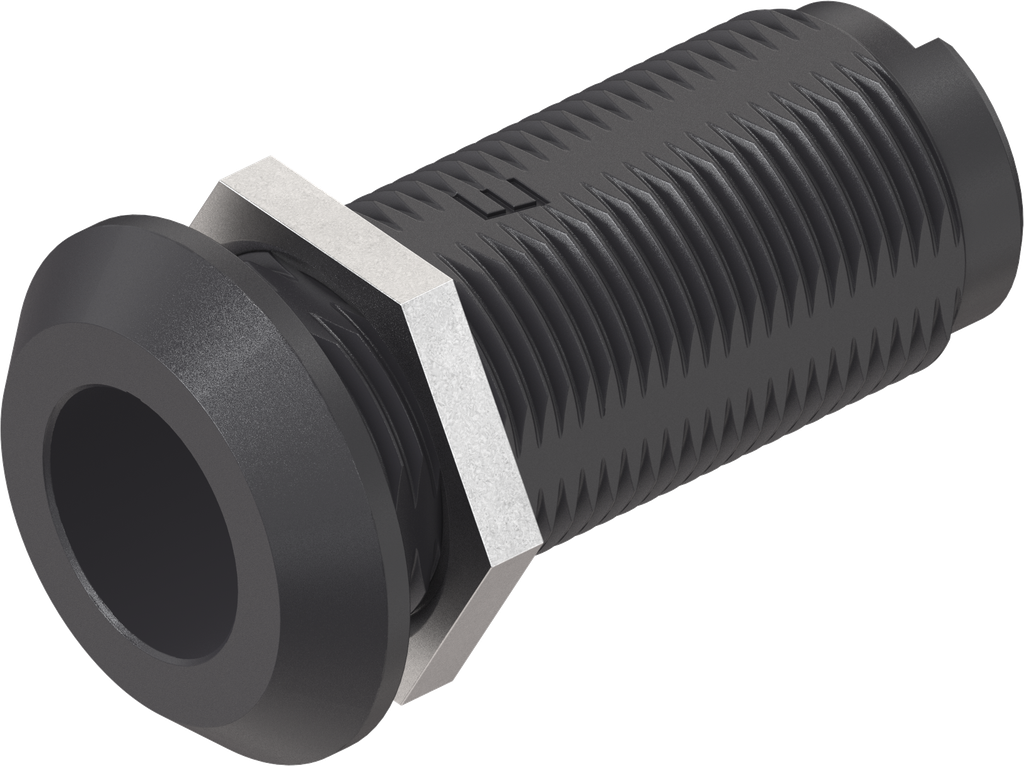

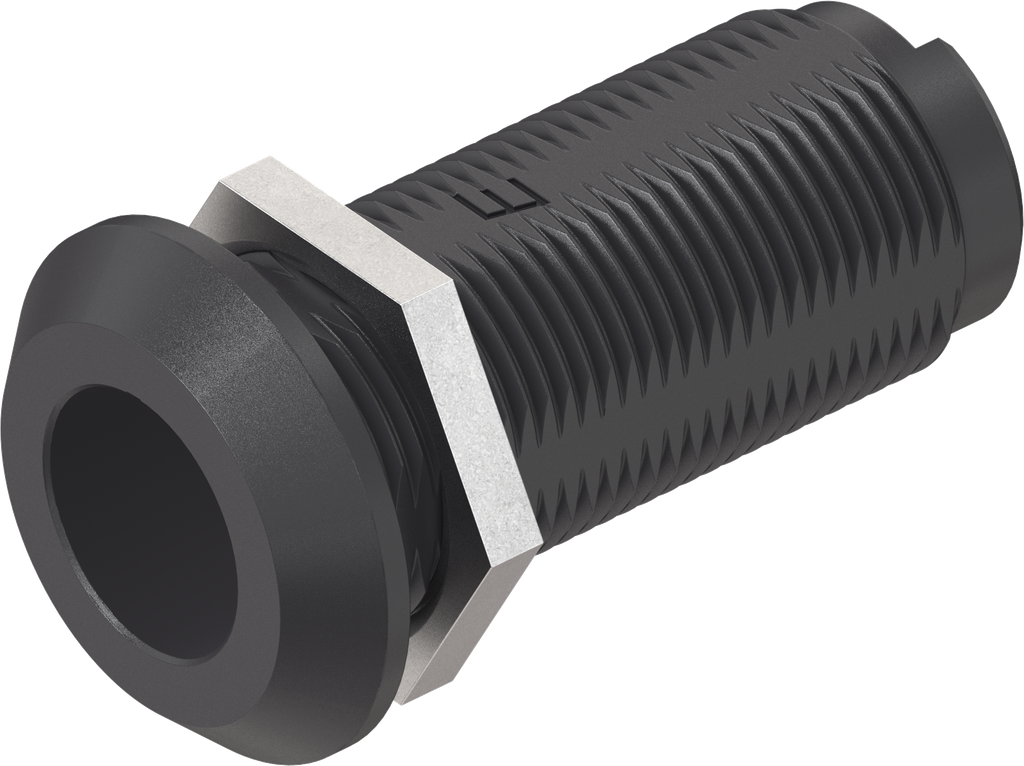

Housing, Polyamide black; 1000-U736

https://www.emka.com/products/1000-u736 https://www.emka.com/web/image/product.template/60279/image_1920?unique=f86255a

with nut


    This combination does not exist.

    Inside the sealing Left Right


    Internal Reference: 1000-U736
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-140
    Material of the module : Polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing

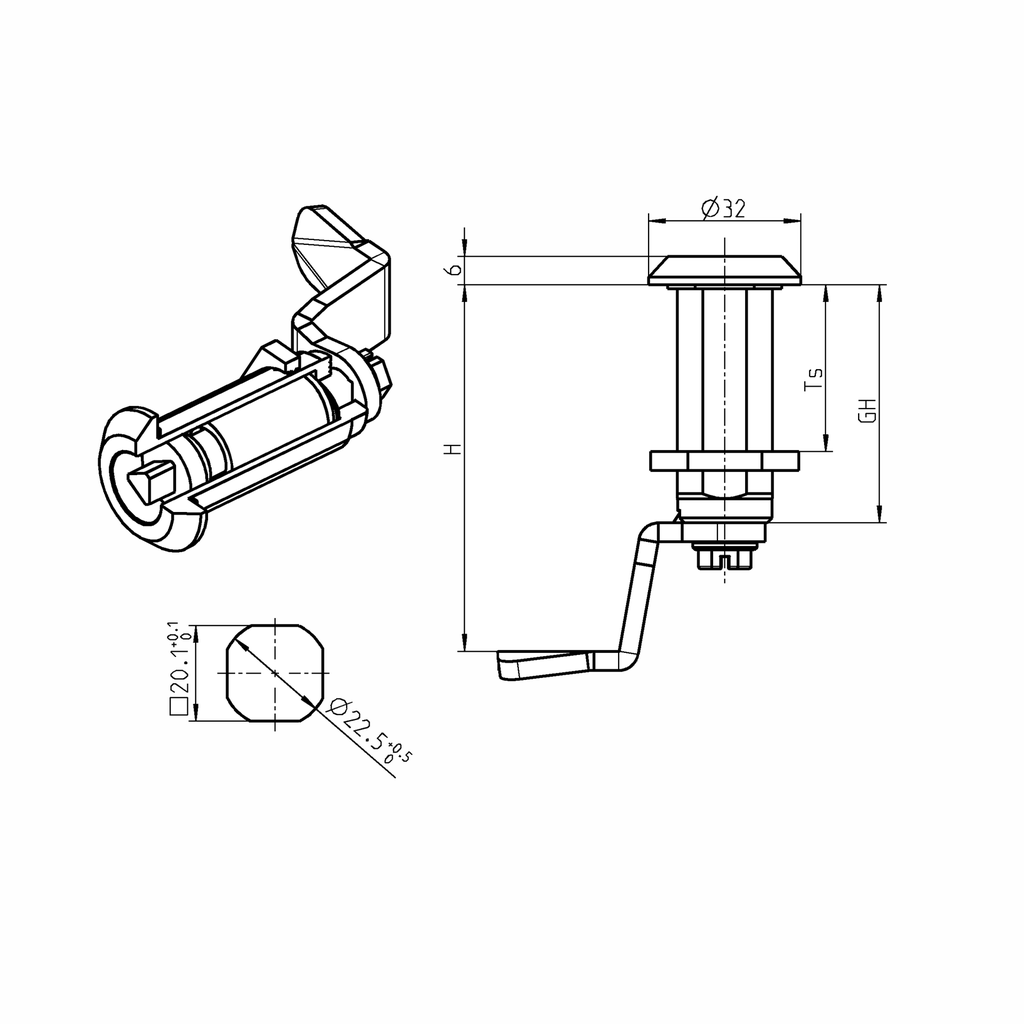

    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 50 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 40 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    O-ring and flat seal
    Quarter turn accessories

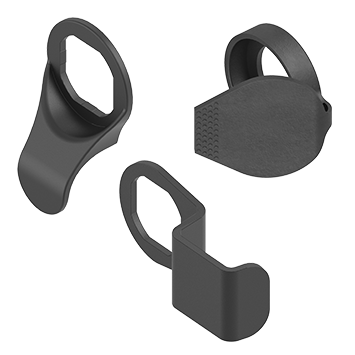

    Dust cap - Finger pull
    Assembly
    Insert
    Adapter
    Rod control
    Here you can find the product data sheets and CAD files of this product
