Safety quarter turn railway version, Brass and stainless steel chrome-plated
Housing, right version, Polyamide GF black
Product information:
For shackle ≤ Ø 13
Key features:
This product is a modular component of a UL-certified closure.
Akeneo Note:

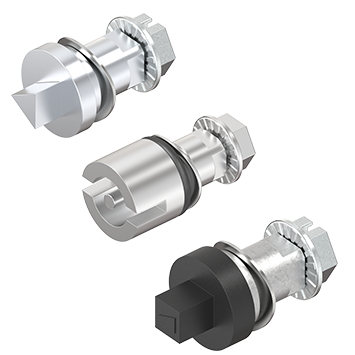

Key for insert must be of a length of at least 70 mm.
Internal Reference:
1000-U735
Product Type:
Housing
Program:
1000
Catalog sheet:
1B-680
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round
Housing Head Size:
32 x 24 mm
GH Mass:
42 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
33 mm
Locking set:
Insert,Padlock
Door Version :
Left,Right
Locking components:
Cam
Padlock Art:
Padlock with shackle dimension Ø 13
Quarter turn types:
Quarter turn with simple insert,Quarter turn for padlock
No Specifications
