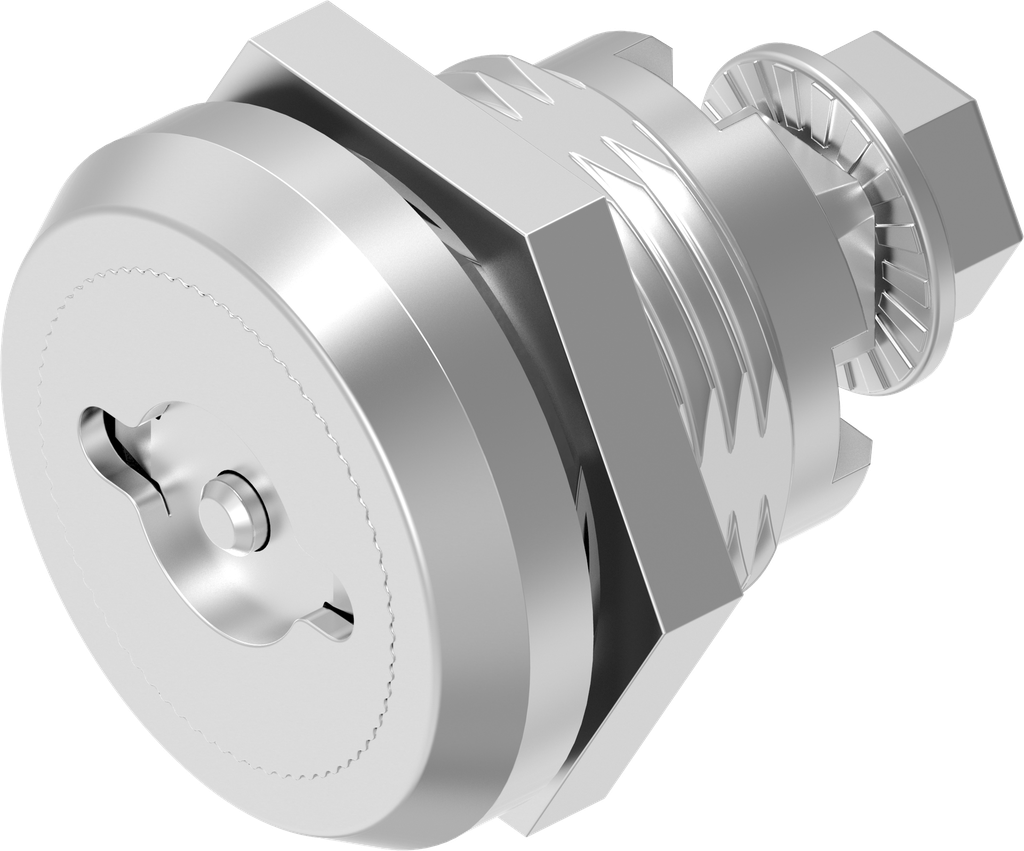

Safety quarter turn double bit 3 with dust cap, left version, Stainless steel AISI 303; 1000-U726
with stainless steel nut
Product information:
The safety quarter turn is of a vibration-proof design.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Keyhole for double bit according to key DIN 43668.
Function:
Push cam back using insert
Cam snaps into place
Double bit key not removable
Assembly instruction:
Only available with pre-assembled cam.
Internal Reference:
1000-U726
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-320
Material of the module :
Stainless steel AISI 303
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Double bit 3
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

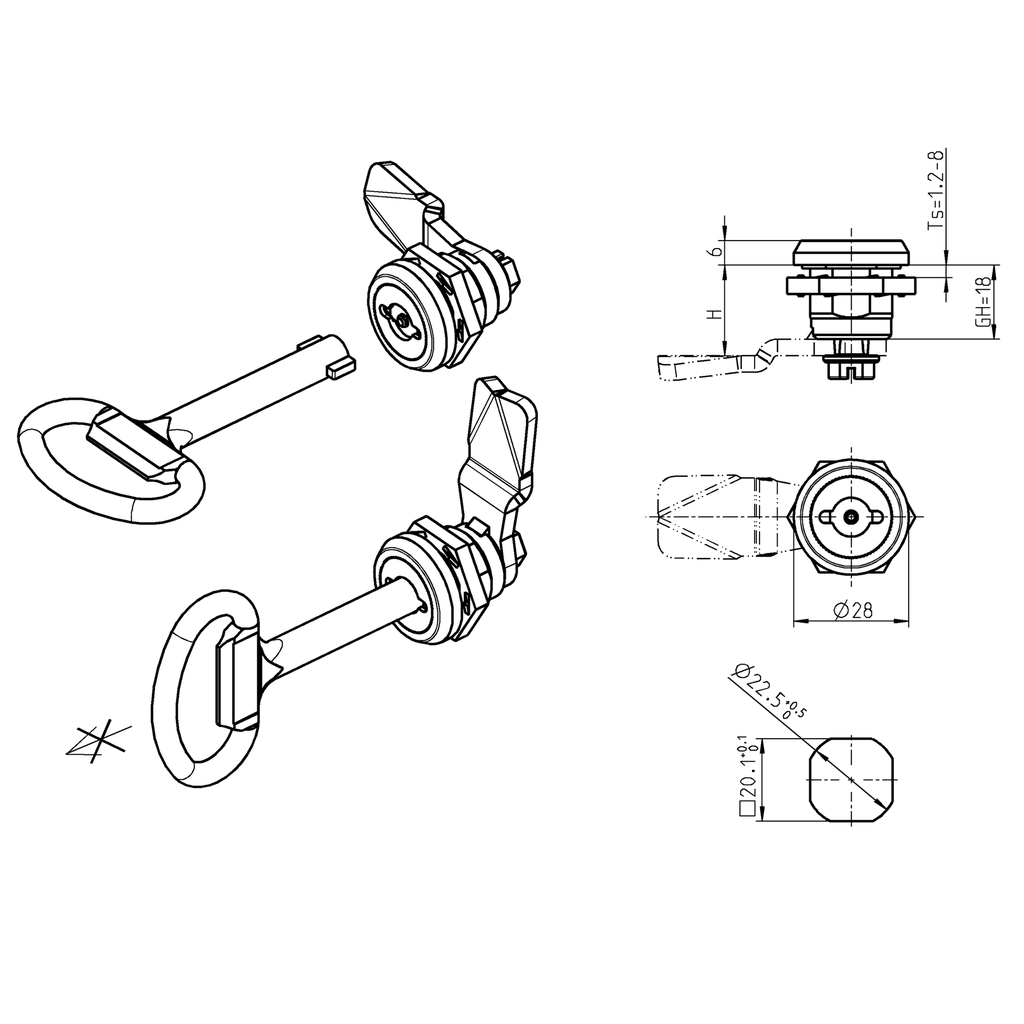

Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left
Locking components:
Cam
Quarter turn types:
Safety quarter turn
No Specifications
