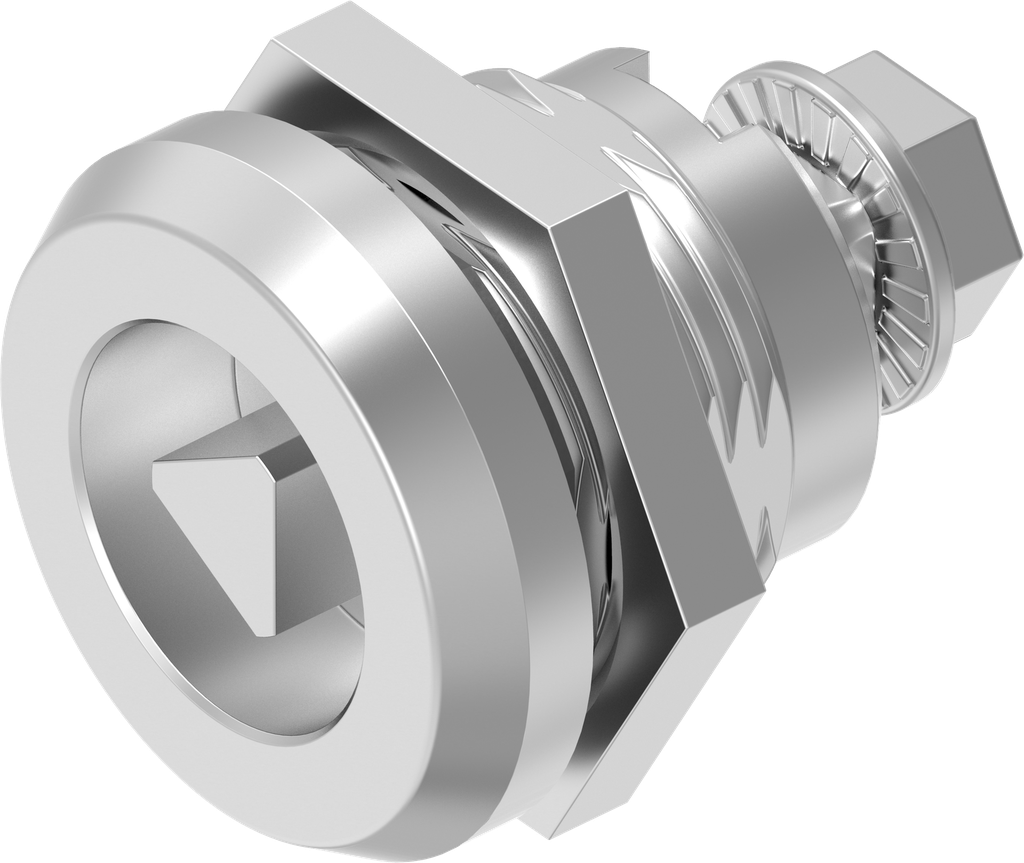

Safety quarter turn triangular 7, Stainless steel AISI 303; 1000-U721-01
with stainless steel nut
This product has no valid combination.
Product information:
The safety quarter turn is of a vibration-proof design.
Depending on the installation location and operational conditions specific checks are necessary and/or supplementary measures of fastening required.
Function:
Push cam back using insert
Cam snaps into place
Assembly instruction:
Only available with pre-assembled cam.
Internal Reference:
1000-U721-01
Standards:
Protection class IP 65, DIN EN 45545-2 class E20 (fire protection)
Barcode:
1000-U00721-0000001
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-320
Material of the module :
Stainless steel AISI 303
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Triangular 7
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
