Safety quarter turn double bit 3, left version, Stainless steel AISI 303
Safety quarter turn double bit 5, left version, Stainless steel AISI 303

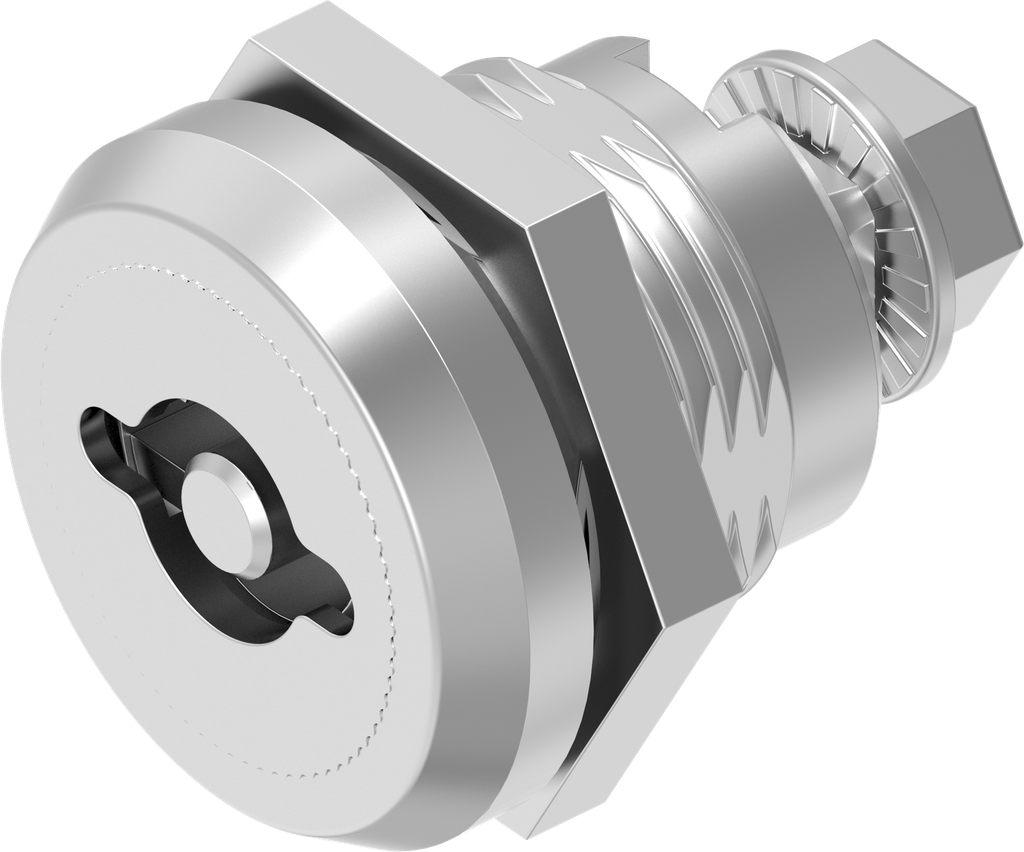

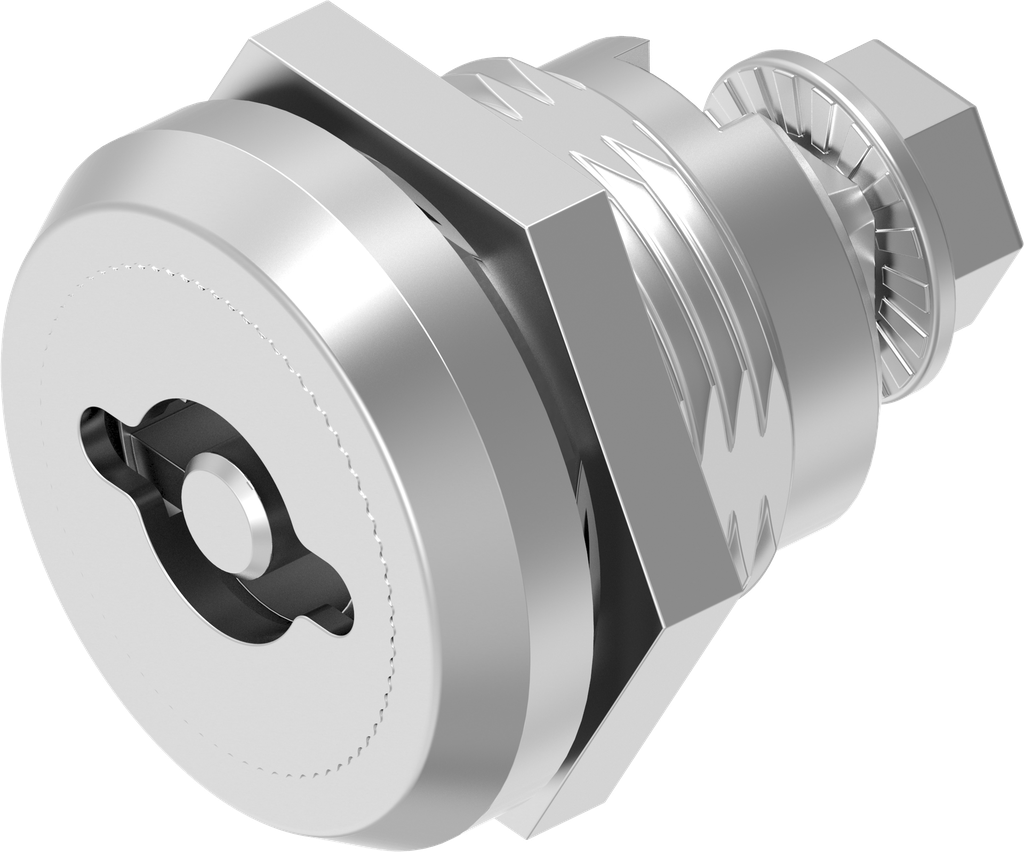

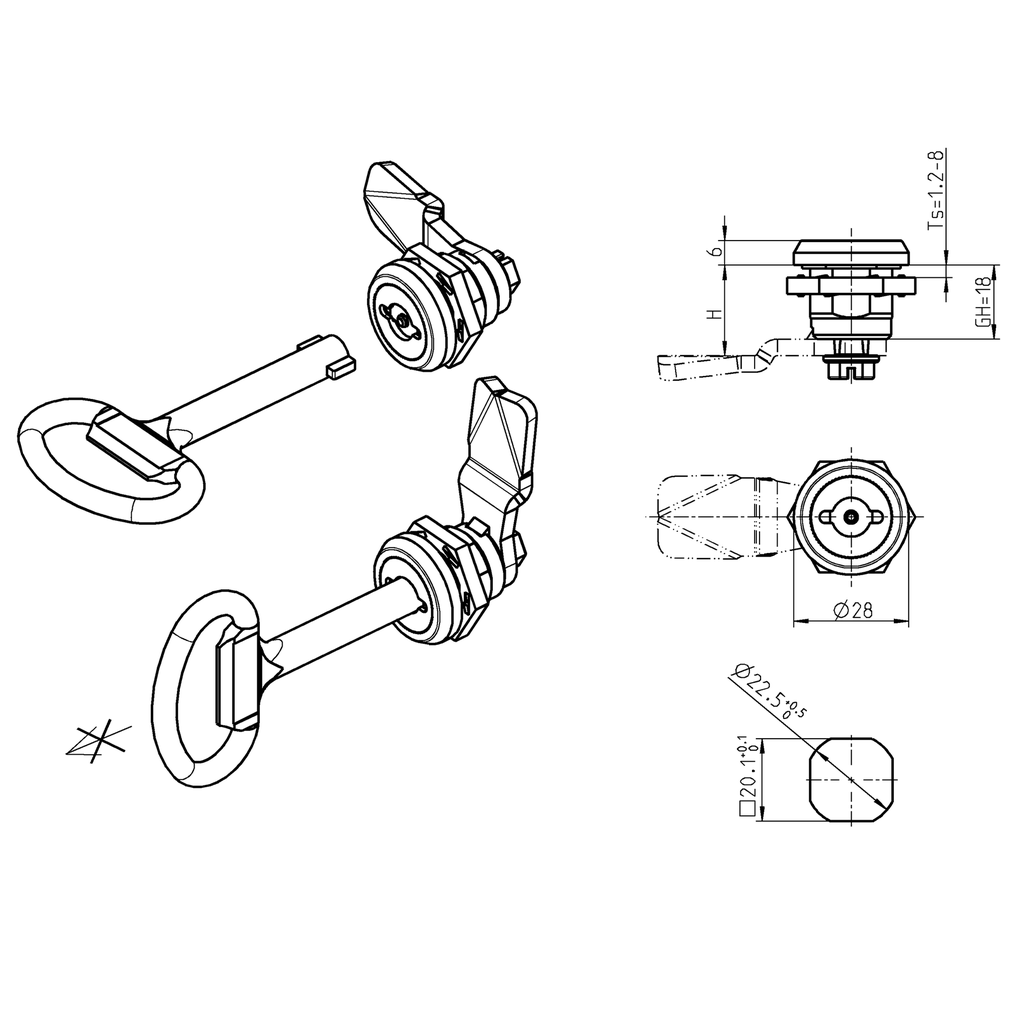

Safety quarter turn double bit 5, right version, Stainless steel AISI 303; 1000-U716-01
with stainless steel nut
Product information:
The safety quarter turn is of a vibration-proof design.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Keyhole for double bit according to key DIN 43668.
Function:
Push cam back using insert
Cam snaps into place
Double bit key not removable
Assembly instruction:
Only available with pre-assembled cam.
Internal Reference:
1000-U716-01
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-320
Material of the module :
Stainless steel AISI 303
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Double bit 5
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
No Specifications
