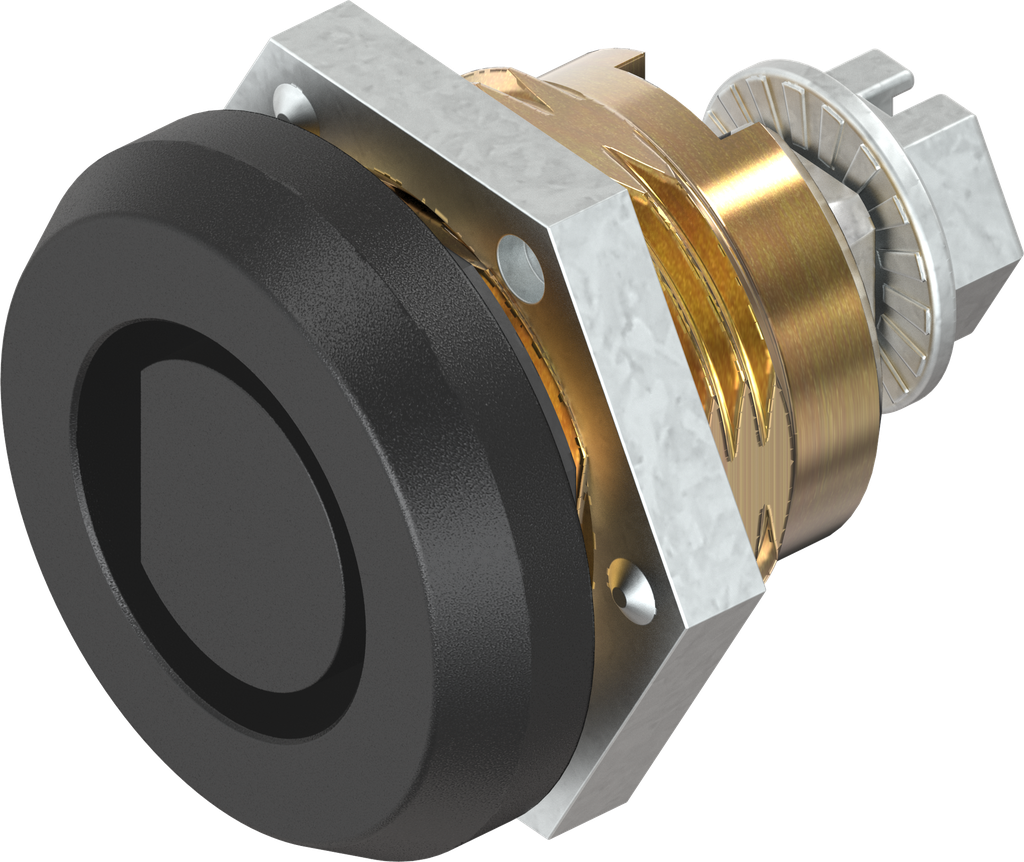

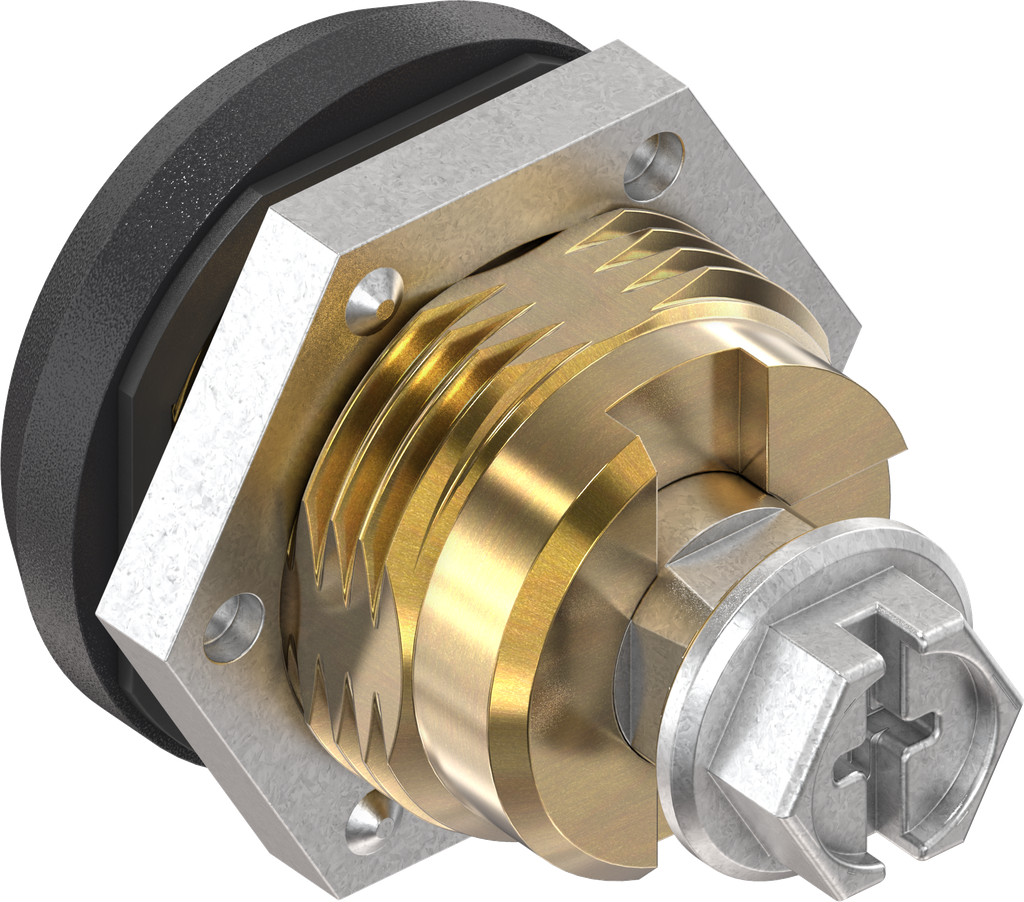

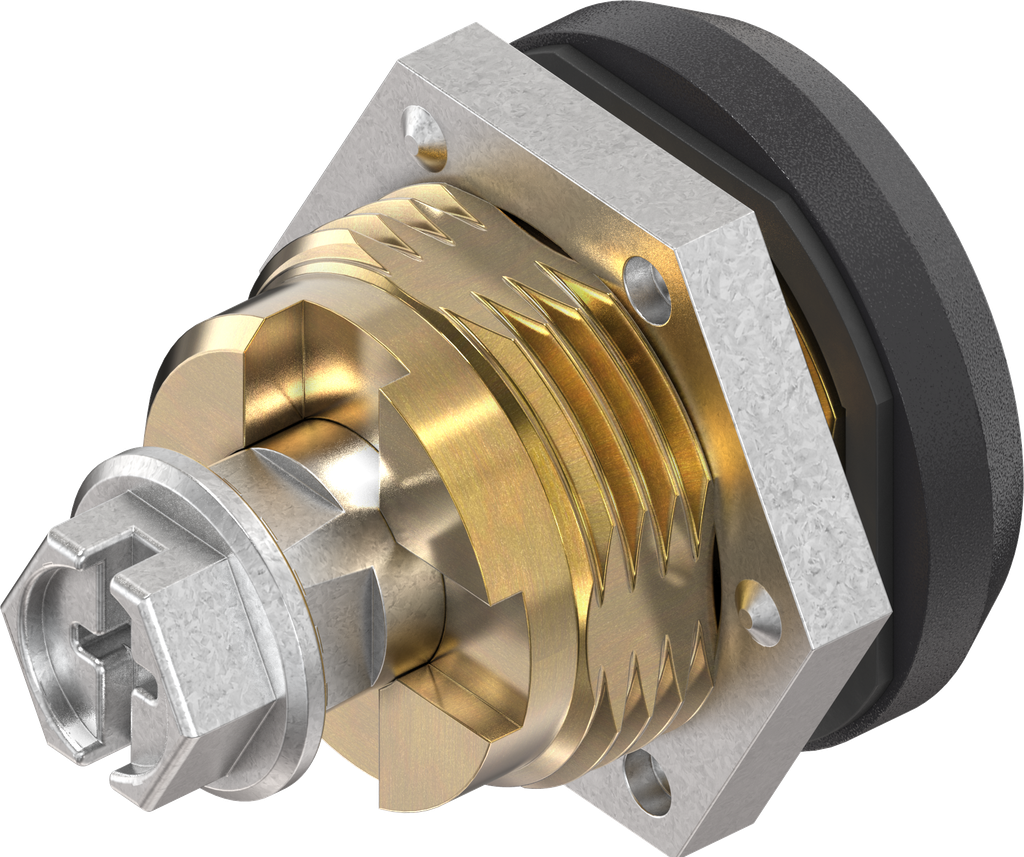

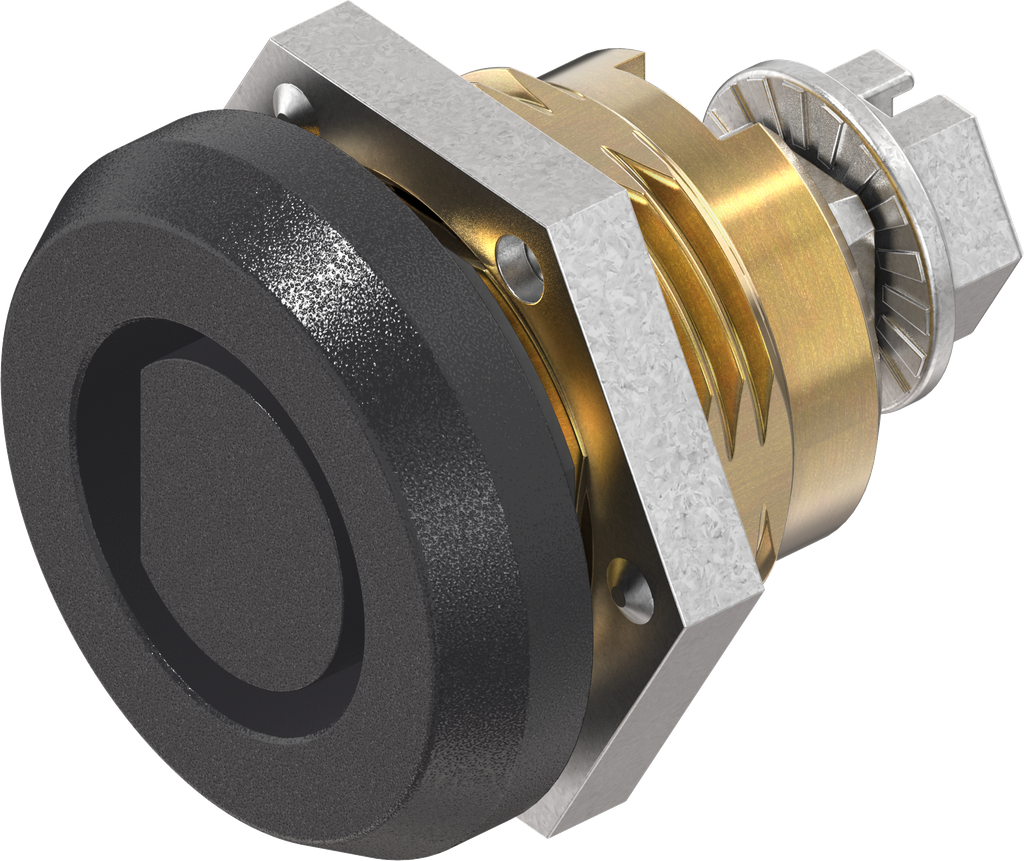

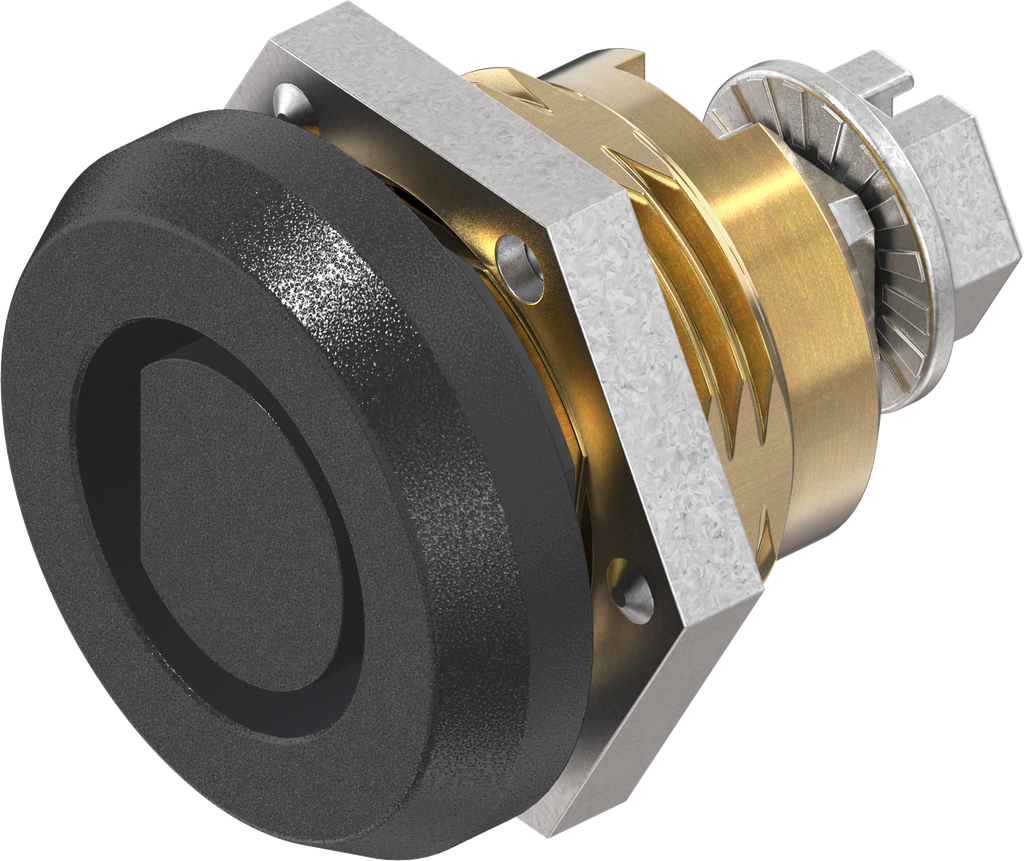

Safety quarter turn Eastern Europe Ø 13 half-round, Brass and zinc die black powder-coated; 1000-U713-01
with earthing nut
Function:
Push cam back using insert.
Assembly instruction:
Only available with pre-assembled cam.
Akeneo Note:
90° and 180° stopper
Internal Reference:
1000-U713-01
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-320
Material of the module :
Brass and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Eastern Europe Ø 13 half-round
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round

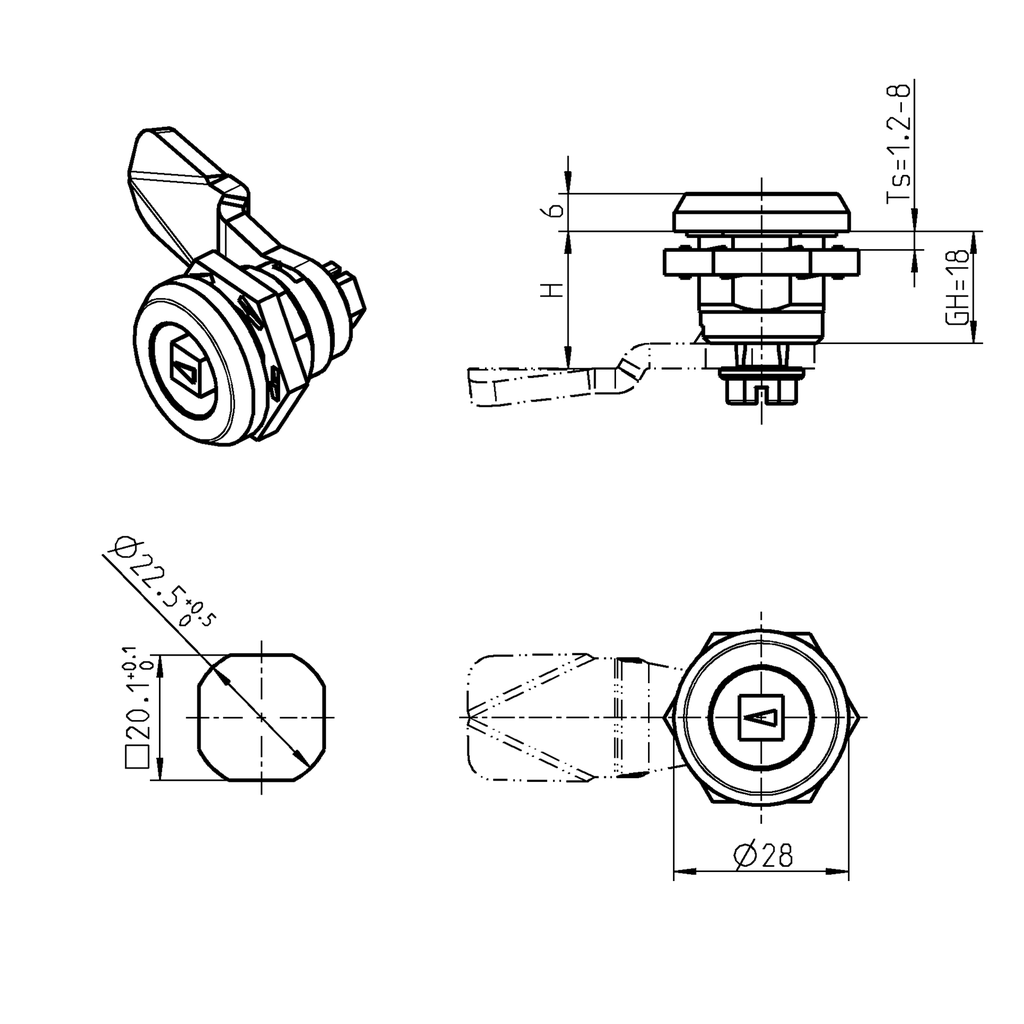

Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
