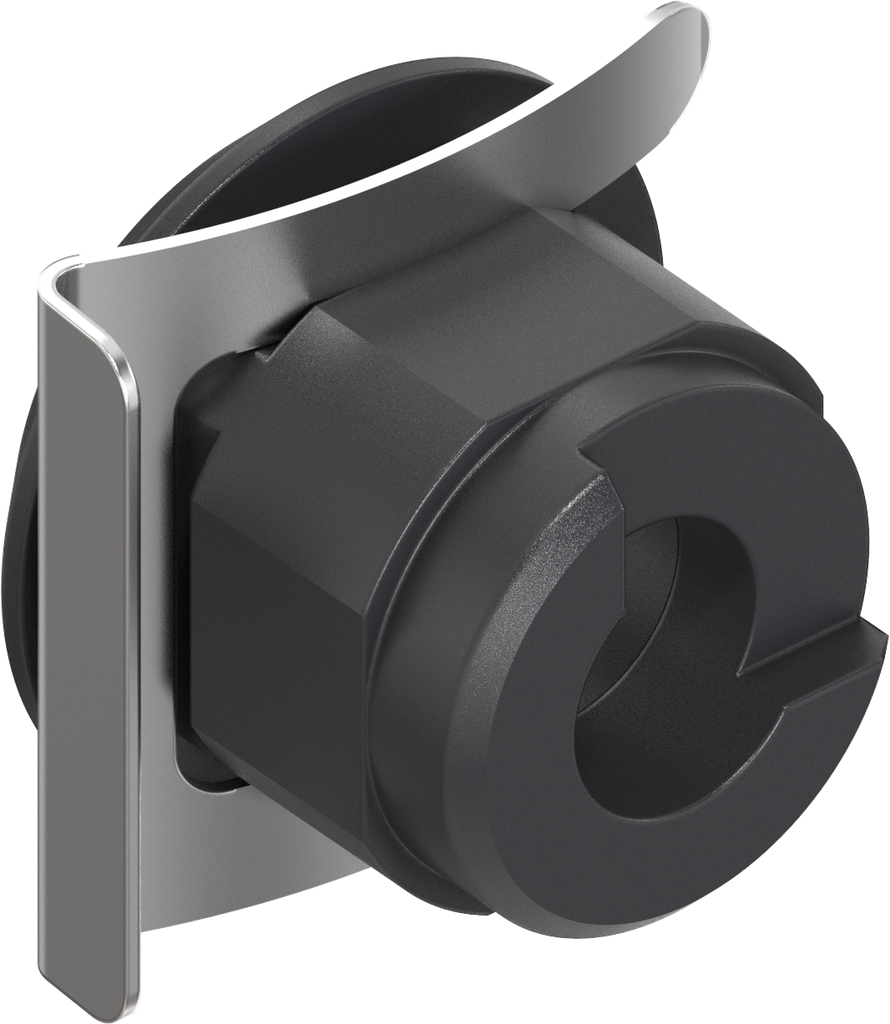

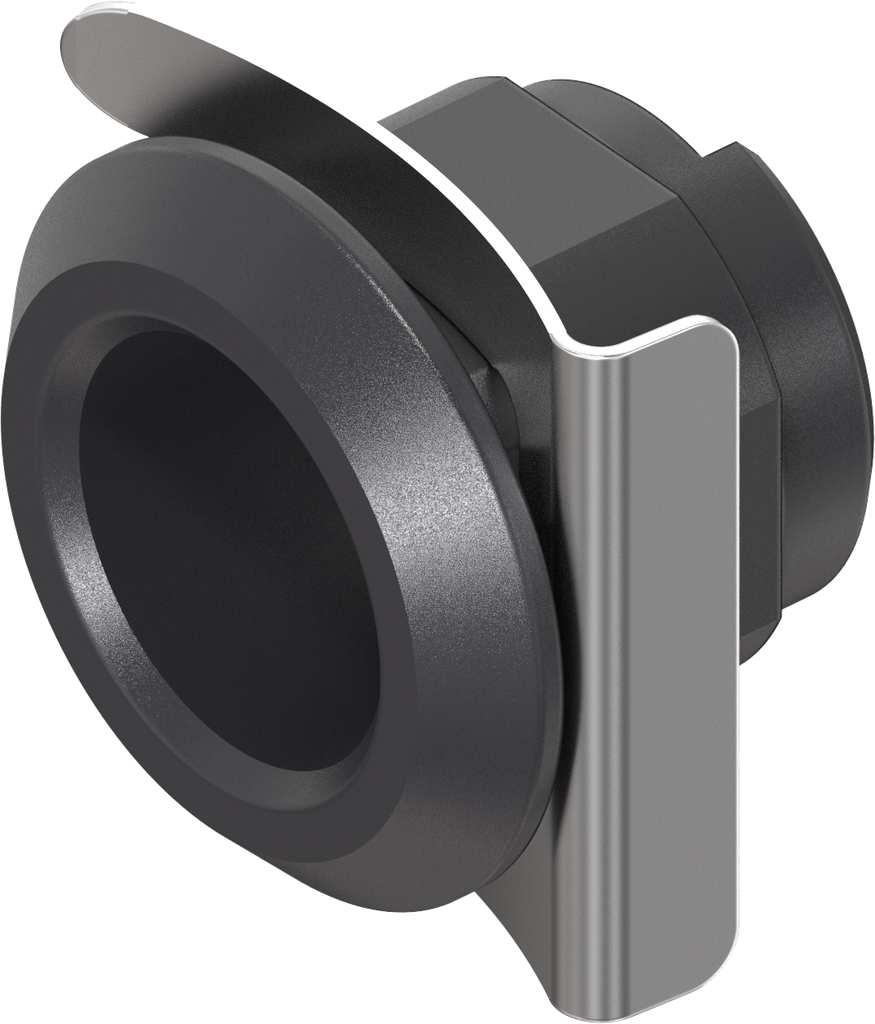

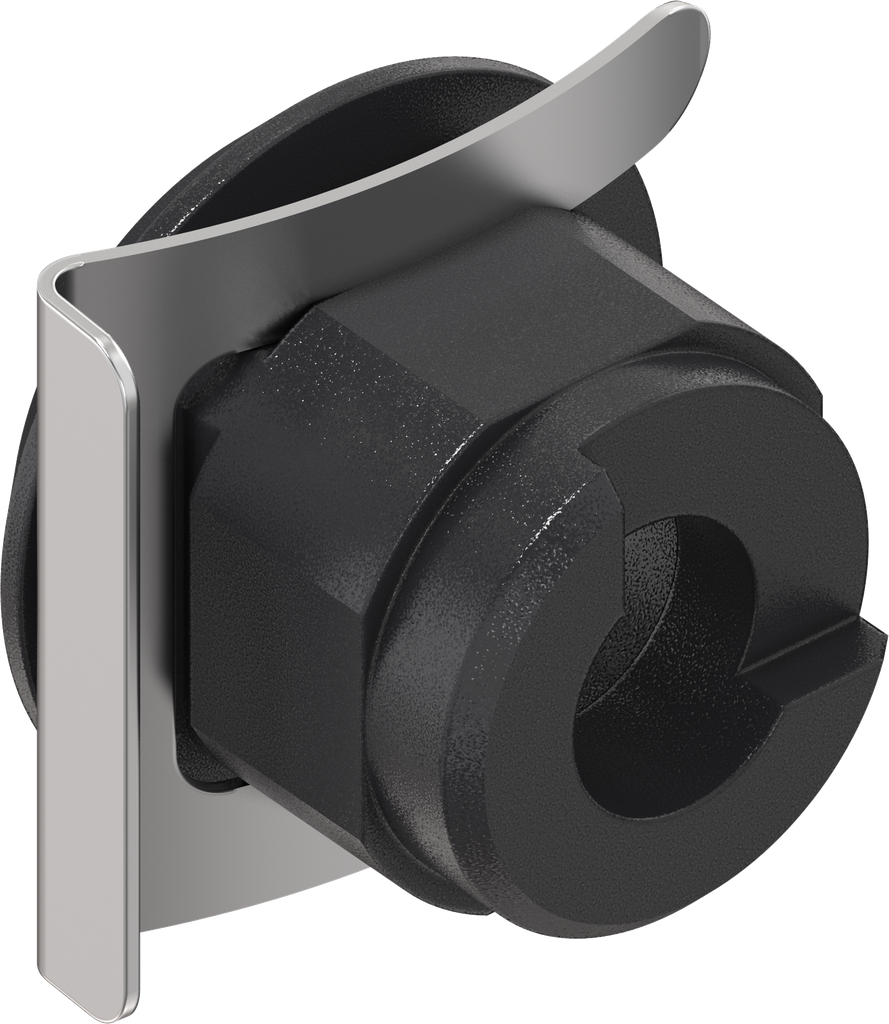

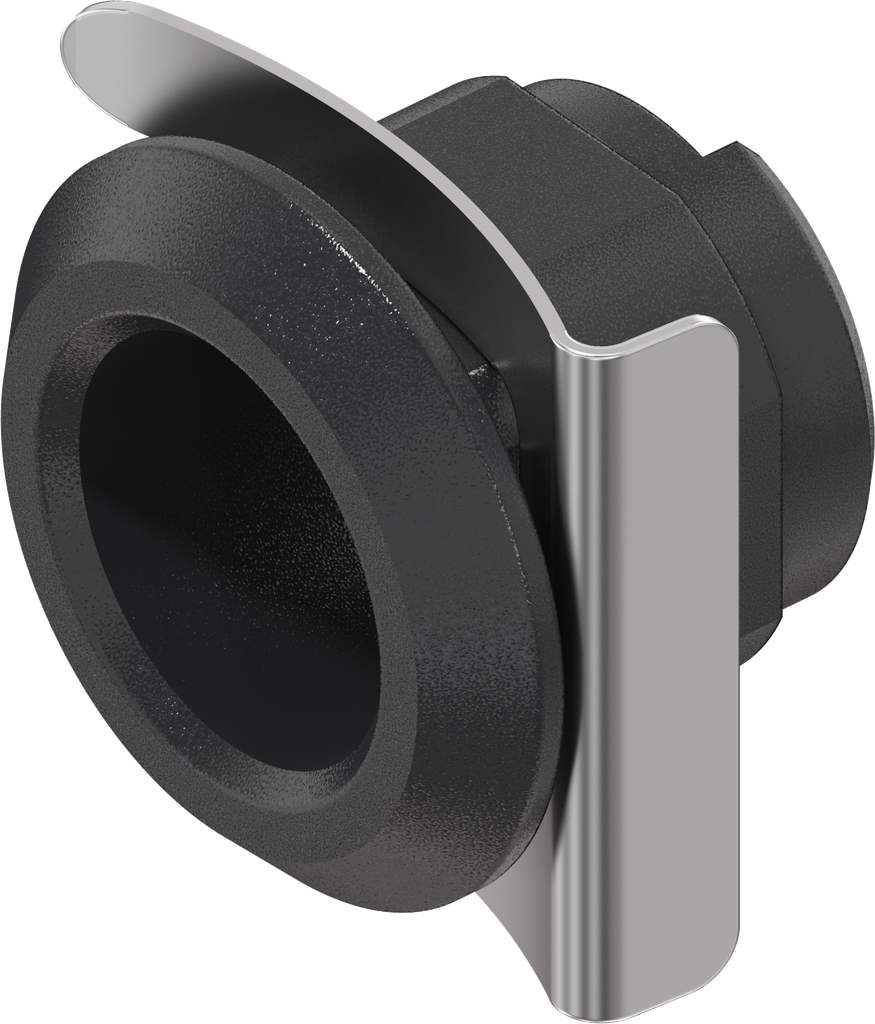

Housing, Polyamide GF black; 1000-U709

https://www.emka.com/products/1000-u709 https://www.emka.com/web/image/product.template/60268/image_1920?unique=950c5ce

with fixing spring


    This combination does not exist.

    Inside the sealing Left Right


    Internal Reference: 1000-U709
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-160
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : spring fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

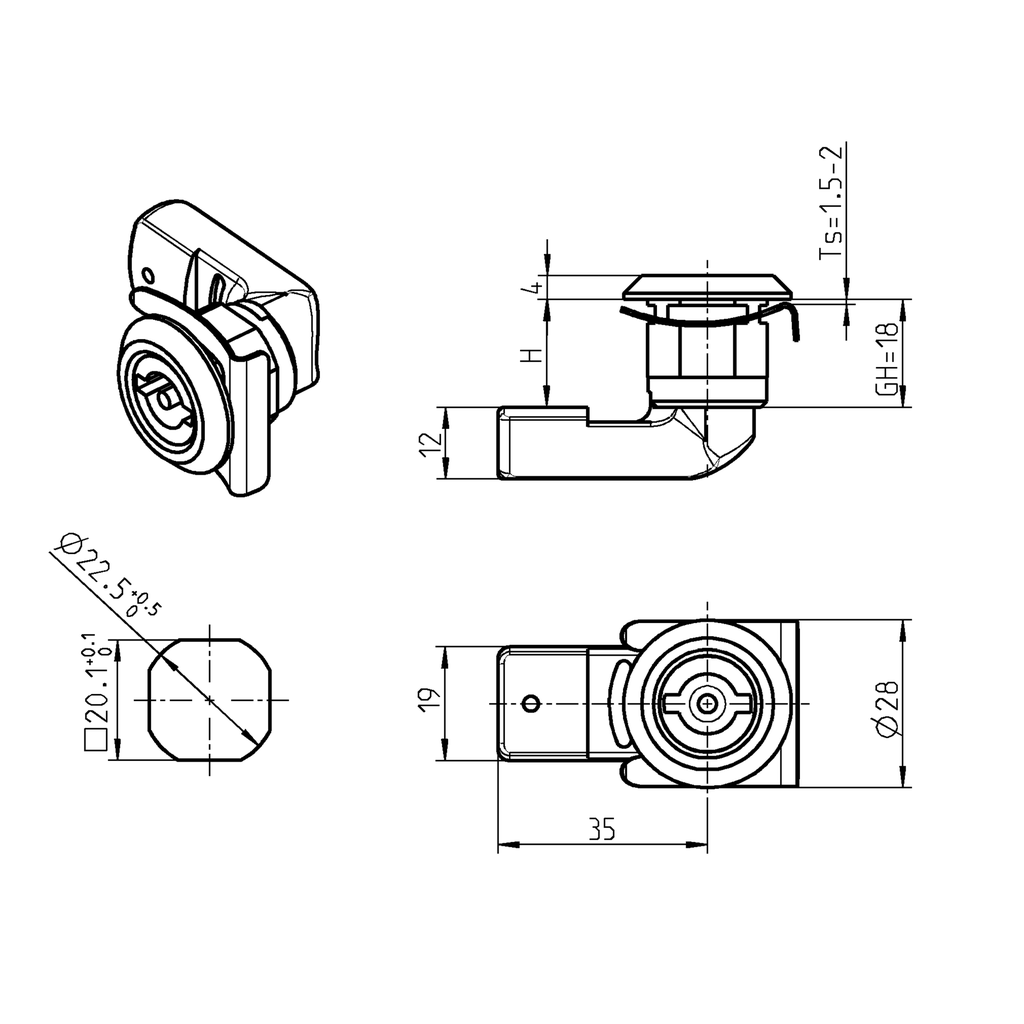

    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Cam Body Style: Housing for insert, classic
    Quarter turn types: Quarter turn for assembly without tools
