Safety quarter turn double bit 5 with dust cap, left version, Brass and zinc die chrome-plated
Safety quarter turn double bit 5 with dust cap, left version, Brass and zinc die chrome-plated
Housing clip-in, Polyamide black
Housing clip-in, Polyamide black

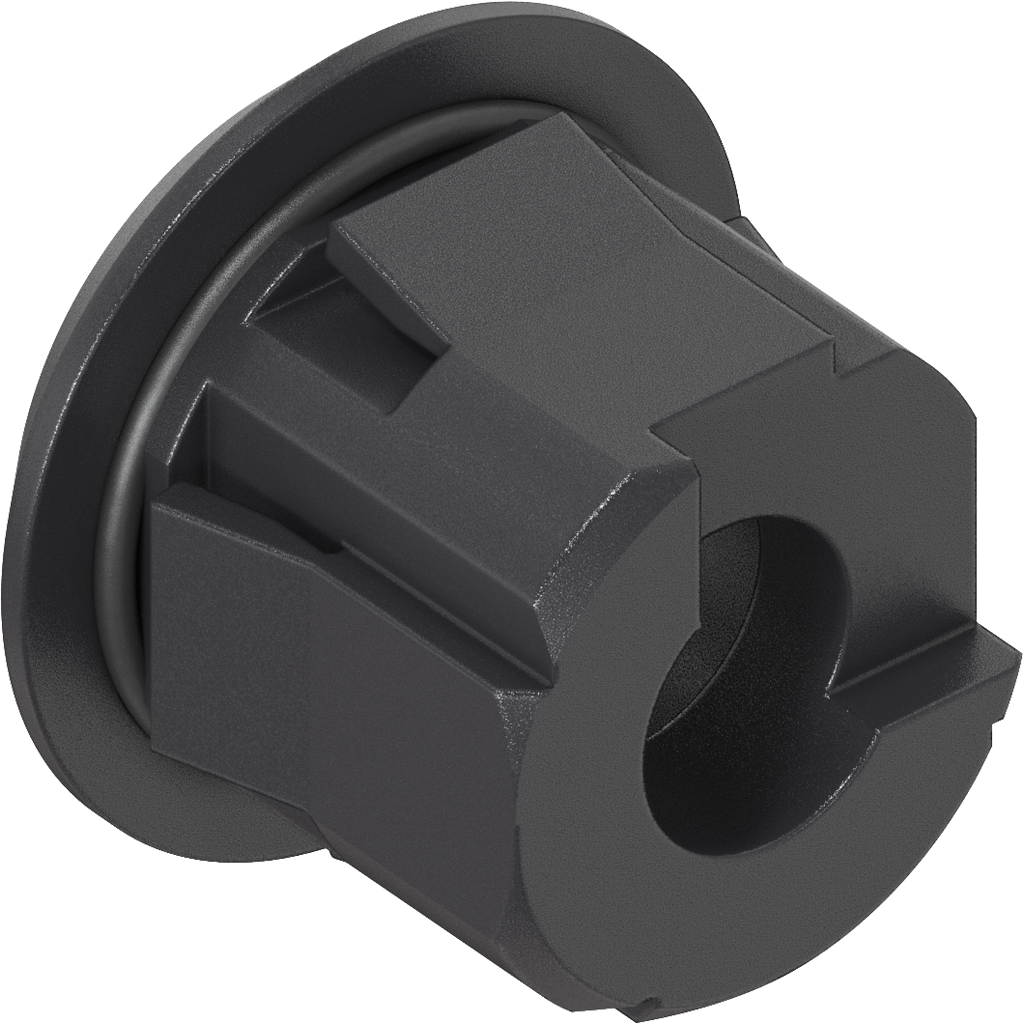

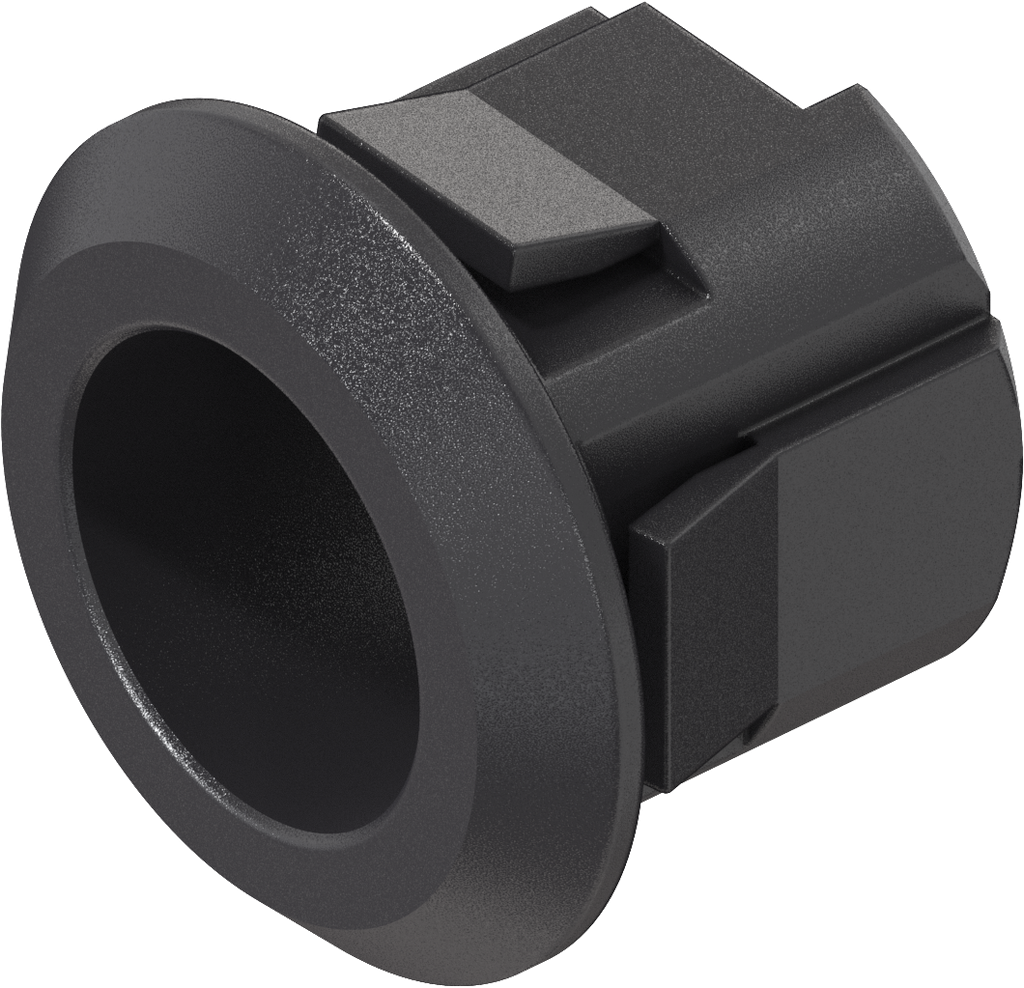

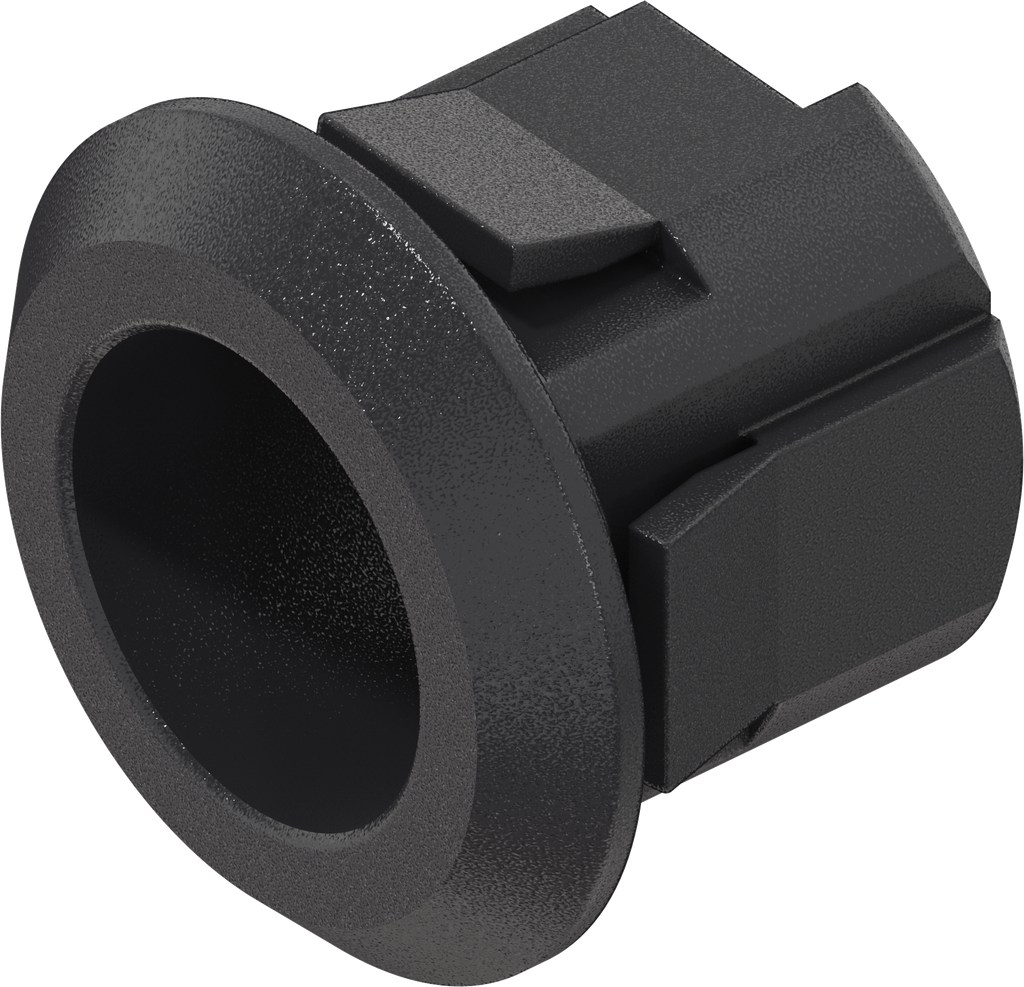

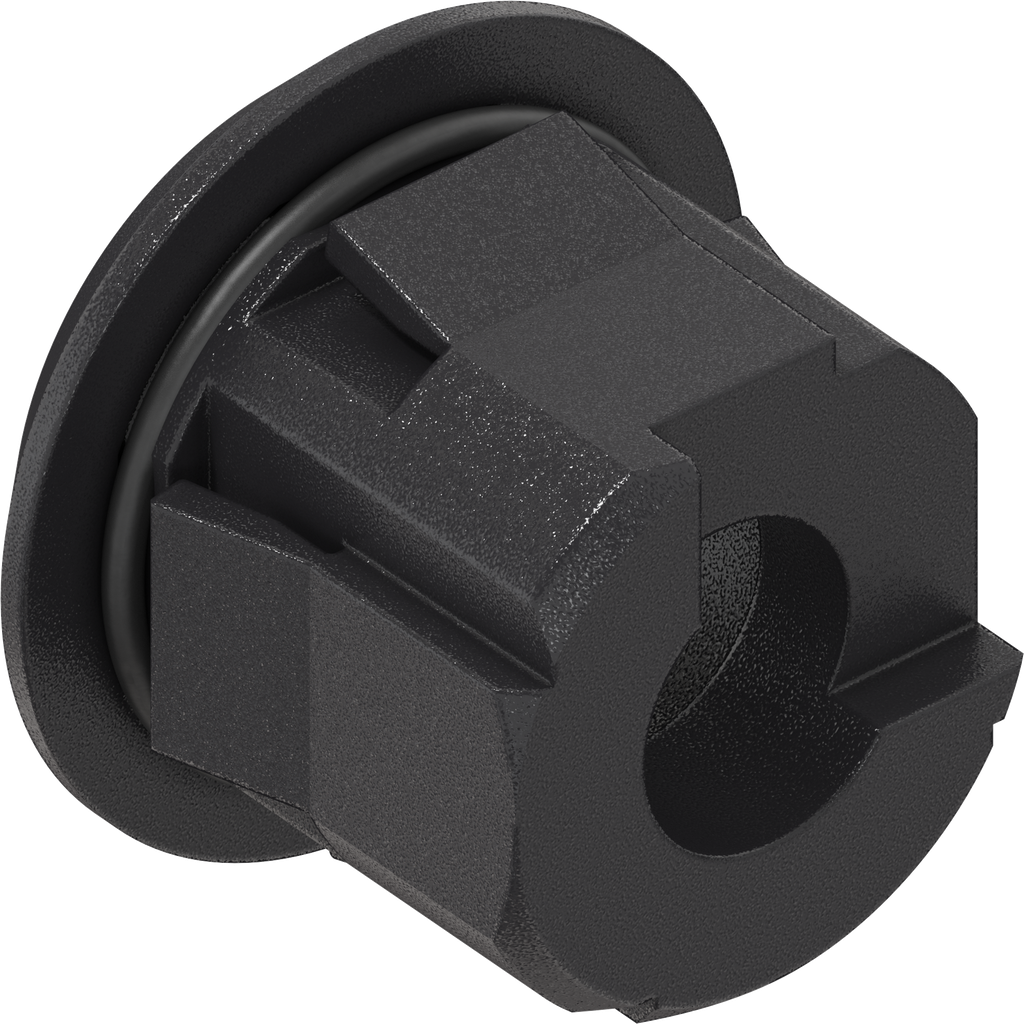

Housing clip-in, Polyamide black; 1000-U695

https://www.emka.com/products/1000-u695 https://www.emka.com/web/image/product.template/60266/image_1920?unique=f86255a

avec écrou

    This combination does not exist.

    clip-in Inside the sealing Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1000-U695
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-160
    Material of the module : Polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : clip-in
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.40 mm
    Suitable for door thicknesses up to: 1.40 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn for assembly without tools
    No Specifications
    View All Products
    Cam
    Assembly
    Insert
    O-ring and flat seal

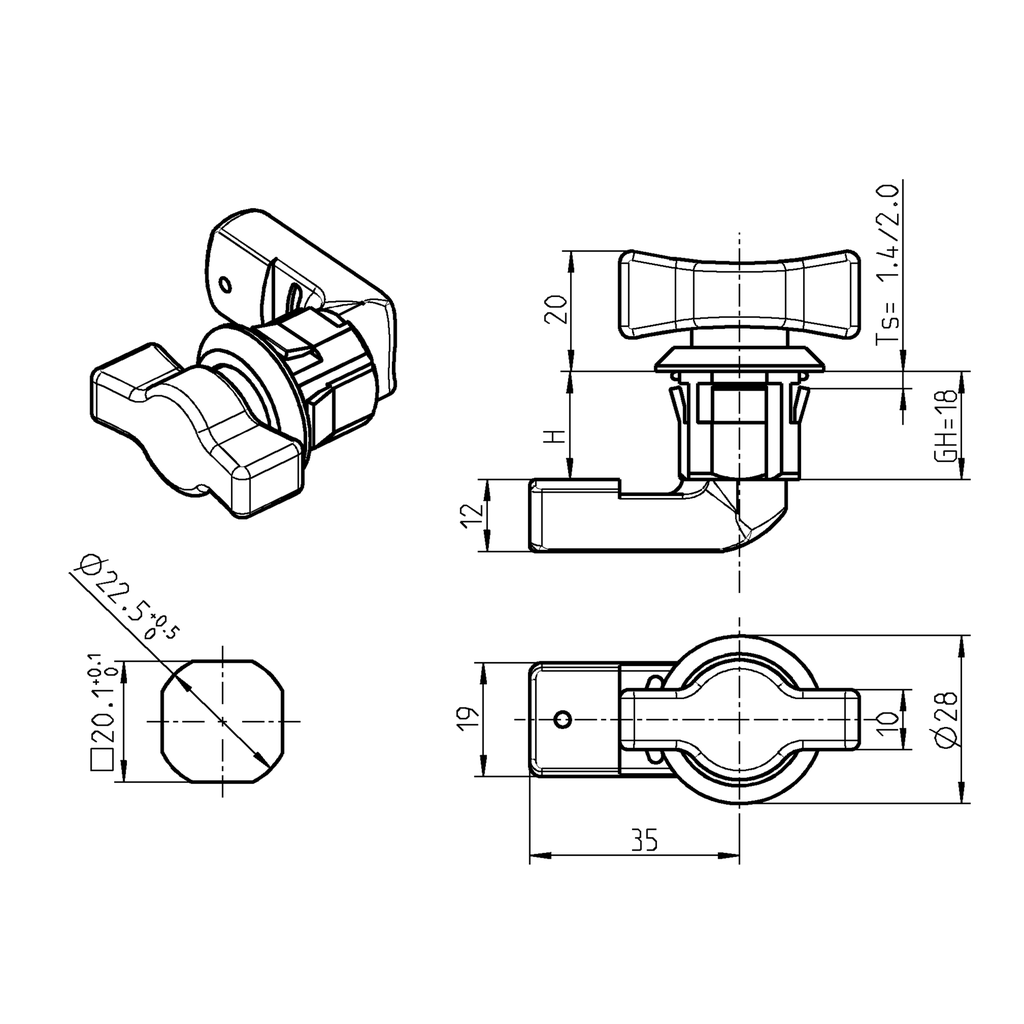

    Here you can find the product data sheets and CAD files of this product
