Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U680
Product Type:
Insert
Program:
1000
Catalog sheet:
1B-160
Material of the module :
Polyamide
Surface of the module:
black
Number of Possible Locking Points:
1 point
Insert for:
Insert for housing, classic
Type of actuation:

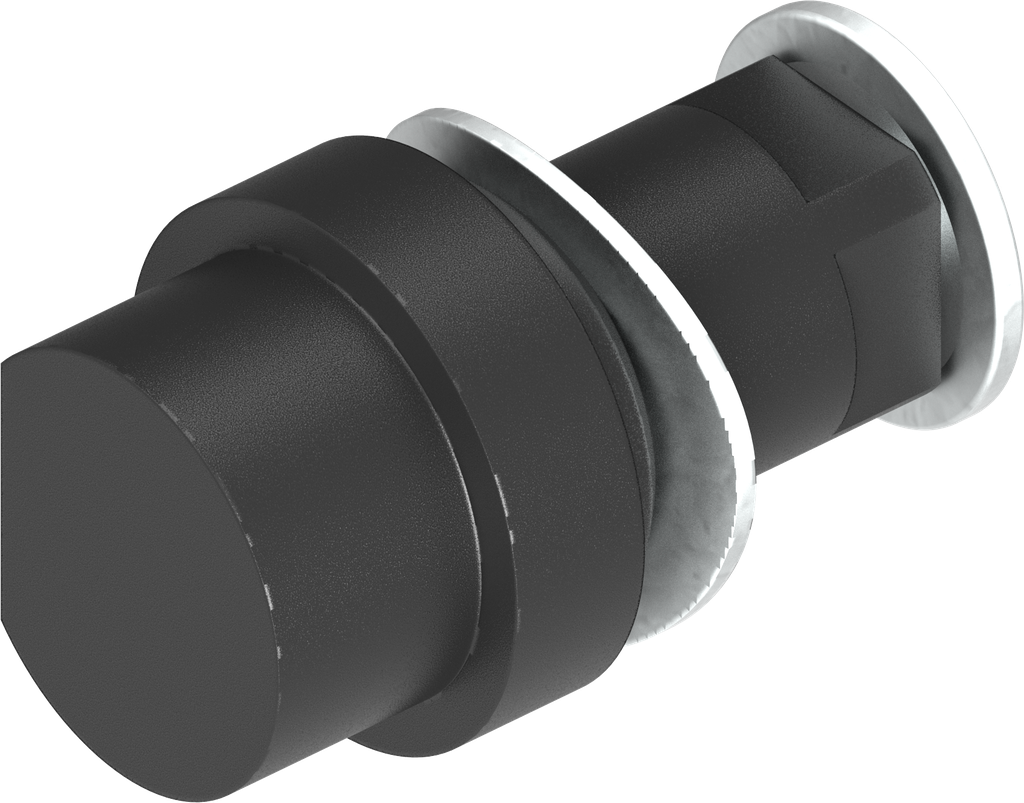

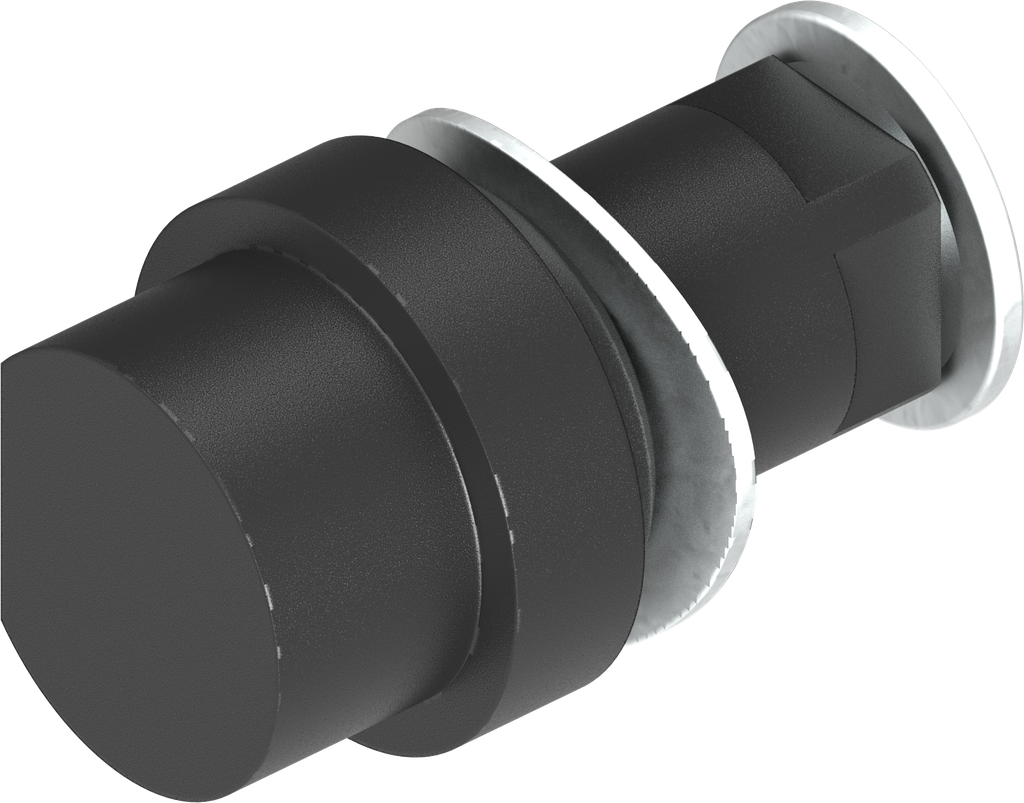

Eastern Europe Ø 13 half-round
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Self-cutting
No Specifications
