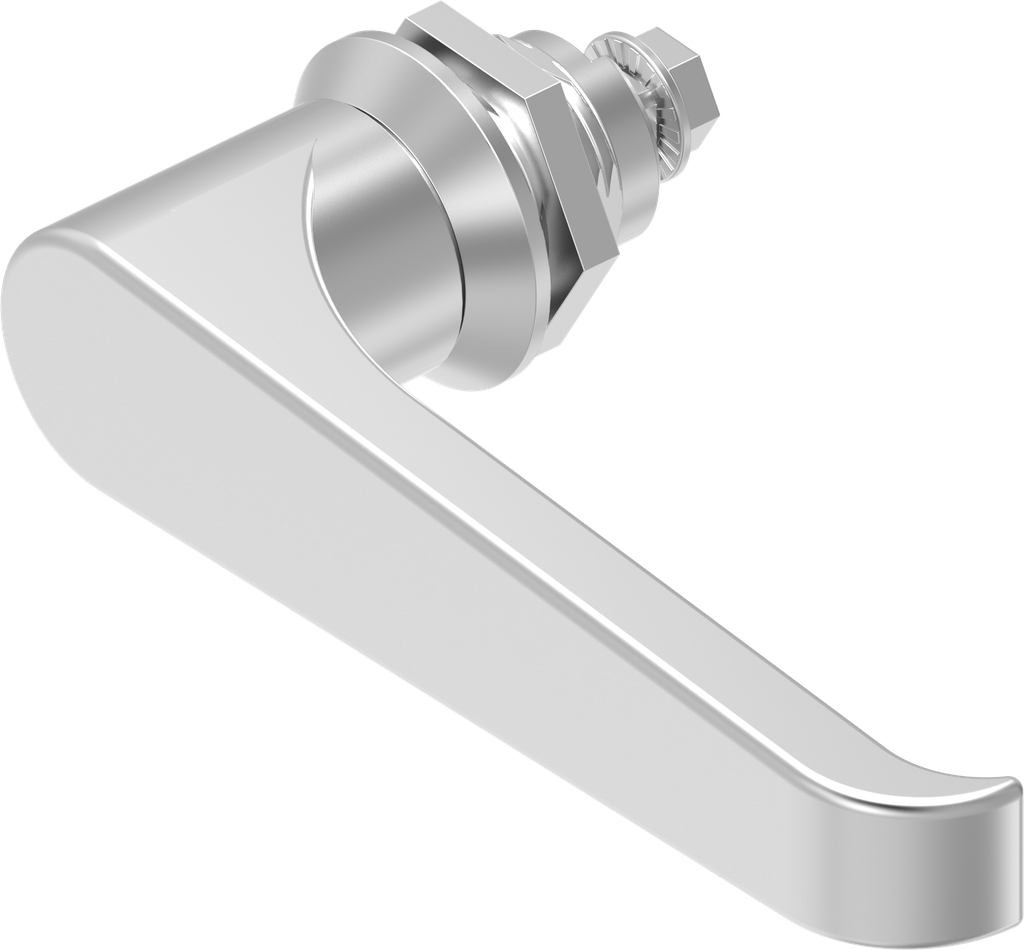

L-handle quarter turn, non-keyed, Stainless steel AISI 316; 1000-U658

https://www.emka.com/products/1000-u658 https://www.emka.com/web/image/product.template/60223/image_1920?unique=f994559

with stainless steel nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1000-U658
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-580
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly

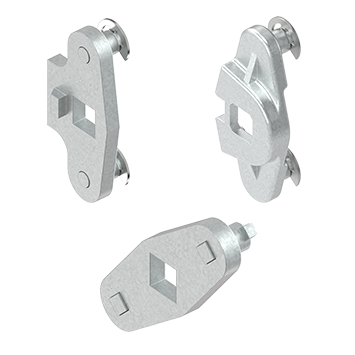

    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1B-580
    Product data sheet
    CAD file | 1000-U658_igs
    CAD file | 1000-U658_stp
