T-handle quarter turn, keyed different, Zinc die chrome-plated
T-handle quarter turn, keyed different, Zinc die chrome-plated

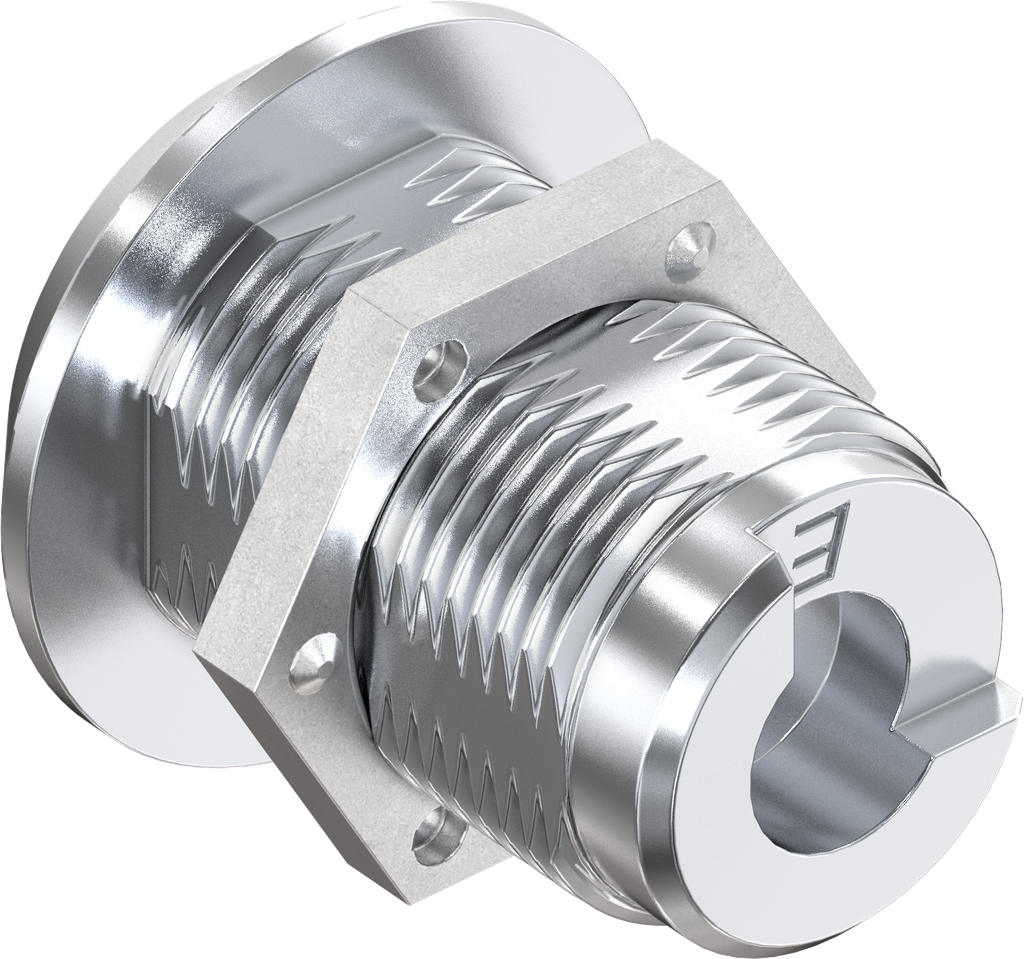

Housing, Zinc die chrome-plated
Housing, Zinc die chrome-plated

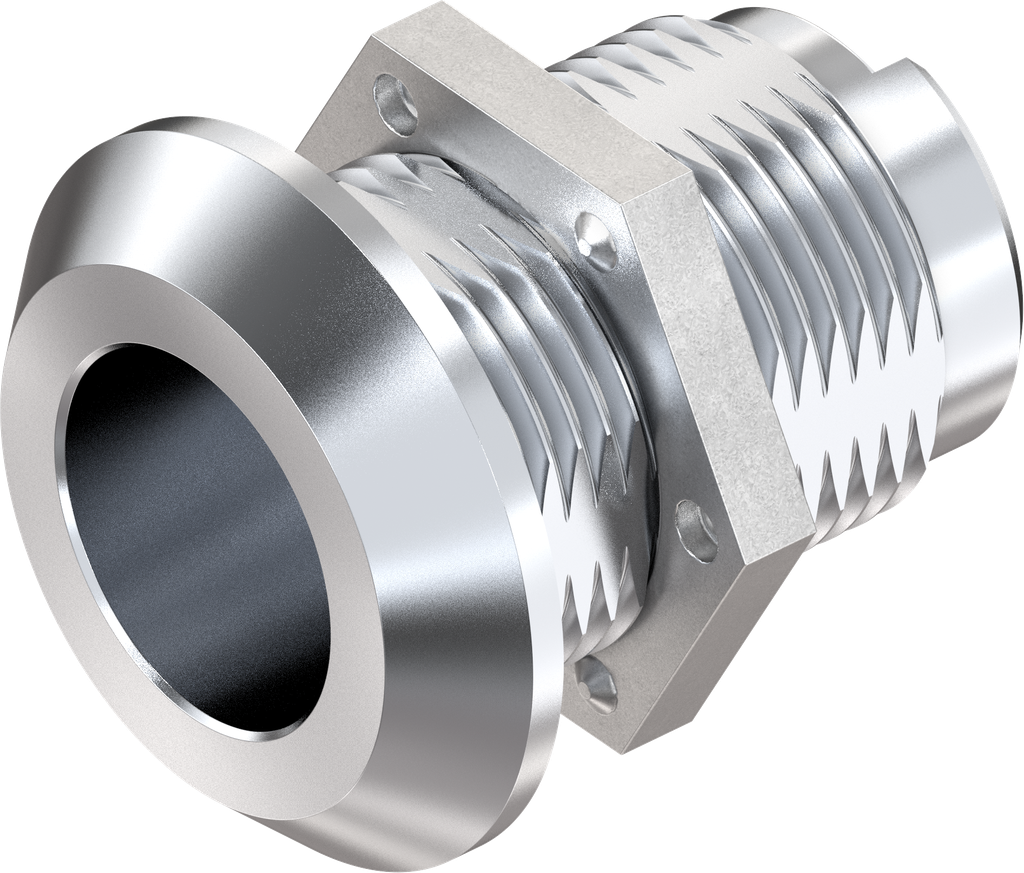

Housing, Zinc die chrome-plated; 1000-U65

https://www.emka.com/products/1000-u65 https://www.emka.com/web/image/product.template/59937/image_1920?unique=9f75874

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Left Right
    Contact Us

    Key features:

    This product is a modular component of a UL-certified closure.
    Internal Reference: 1000-U65
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round

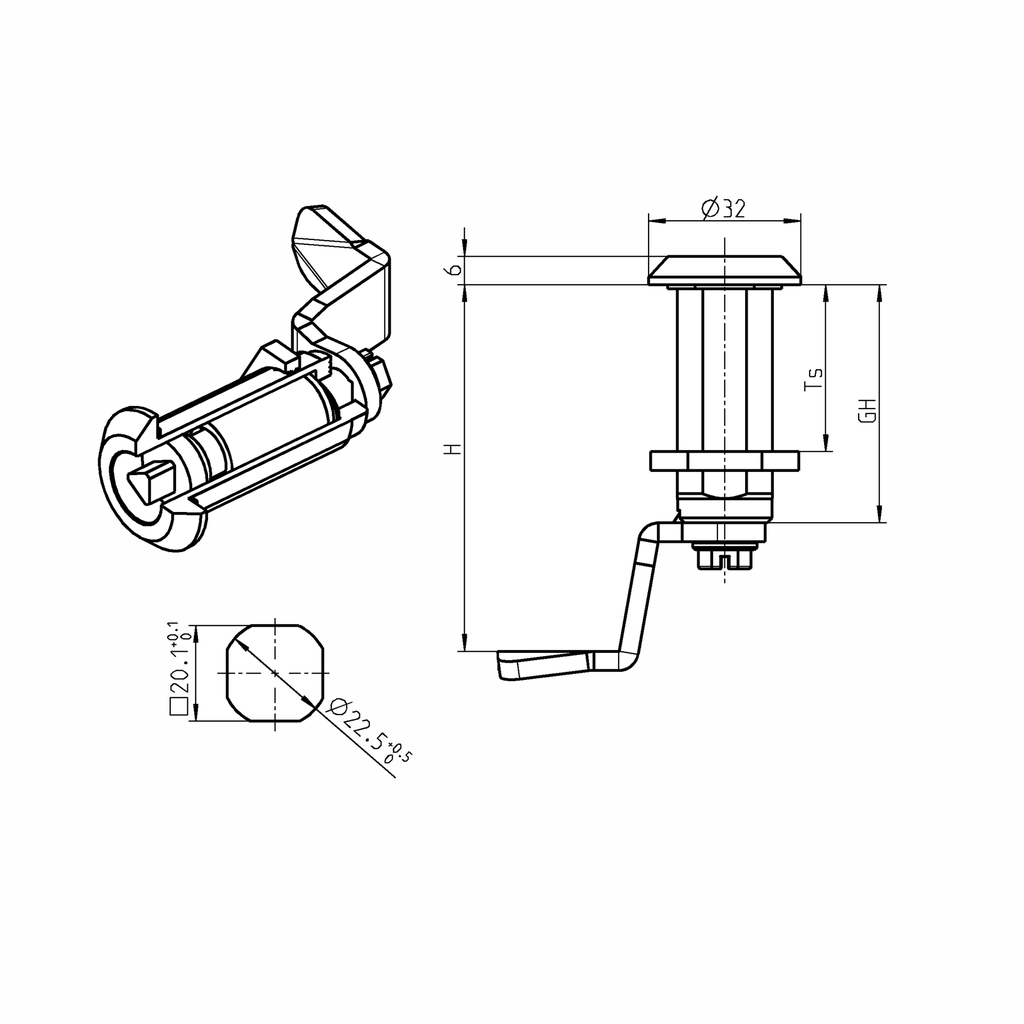

    Housing Head Size: 32 x 6 mm
    GH Mass: 30 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
