Wing knob quarter turn, keyed different, Zinc die black powder-coated
Wing knob quarter turn, keyed different, Zinc die black powder-coated
Wing knob quarter turn for ASSA cylinder, Polyamide and zinc die black and zinc-plated
Wing knob quarter turn for ASSA cylinder, Polyamide and zinc die black and zinc-plated

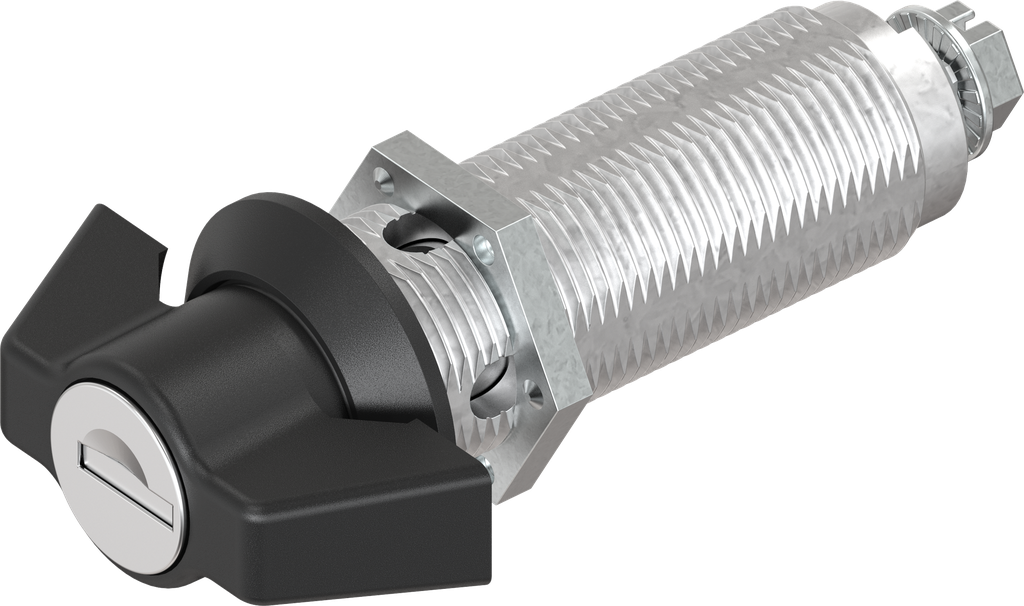

Wing knob quarter turn, keyed EK 333, Zinc die and polyamide black; 1000-U648

https://www.emka.com/products/1000-u648 https://www.emka.com/web/image/product.template/205753/image_1920?unique=0463bdd

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right


    Product information:

    Key removable in both positions.

    Internal Reference: 1000-U648
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-540
    Material of the module : Zinc die and polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 60 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 50 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
