L-handle quarter turn, non-keyed, Zinc die black powder-coated

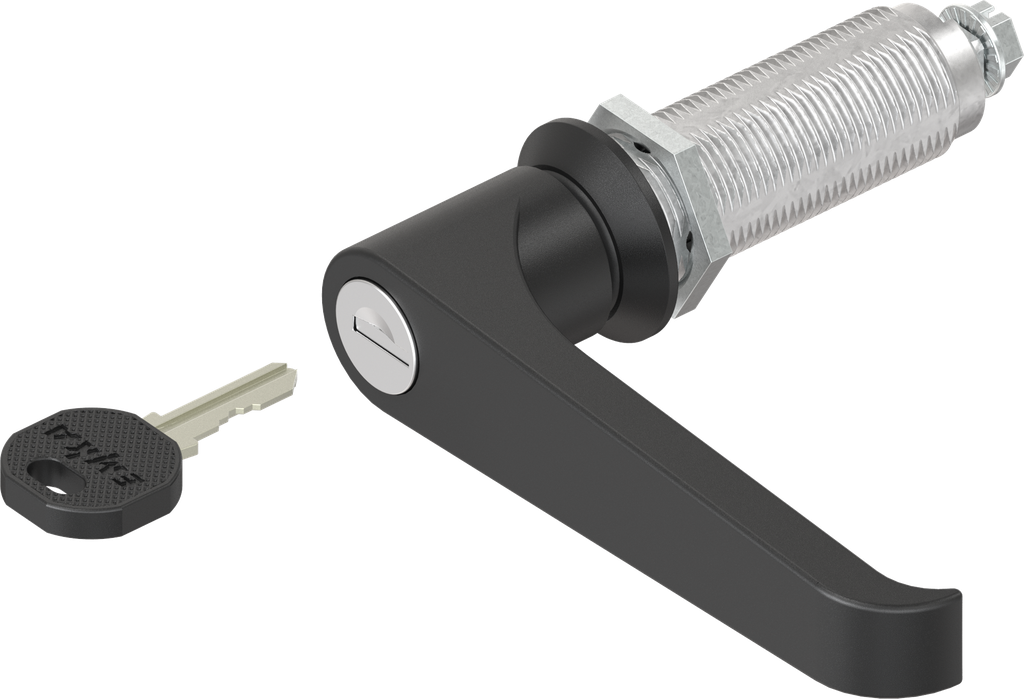

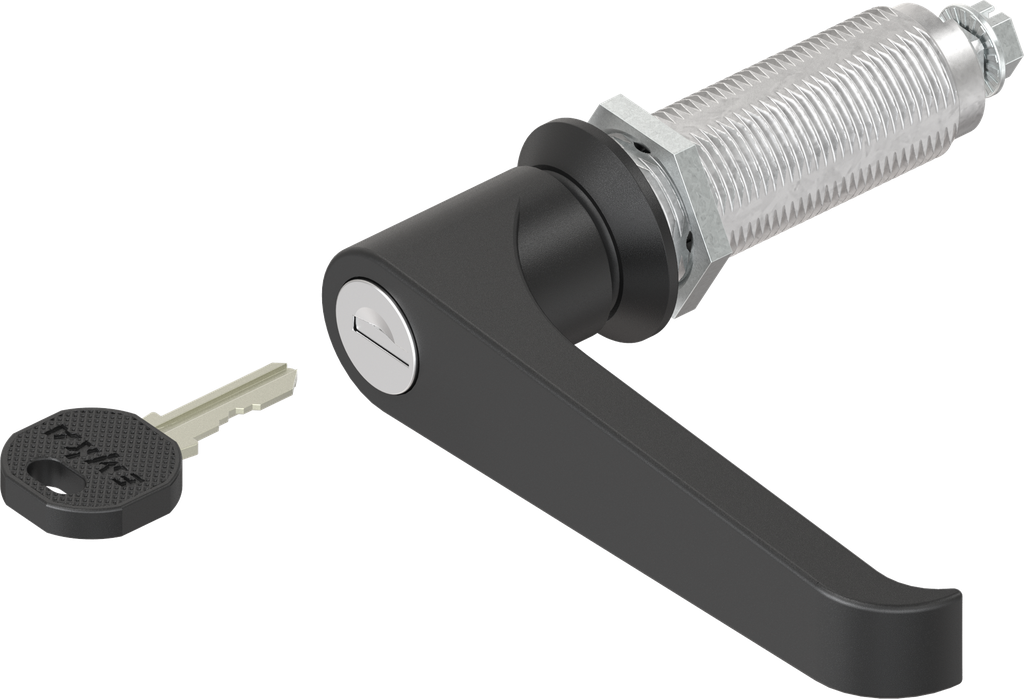

L-handle quarter turn, keyed different, Zinc die black powder-coated
Product information:
Key removable in both positions.
Internal Reference:
1000-U620
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-580
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
GH Mass:
60 mm
Handle Art:
L-handle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
50 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with handle,Quarter turn with cylinder
