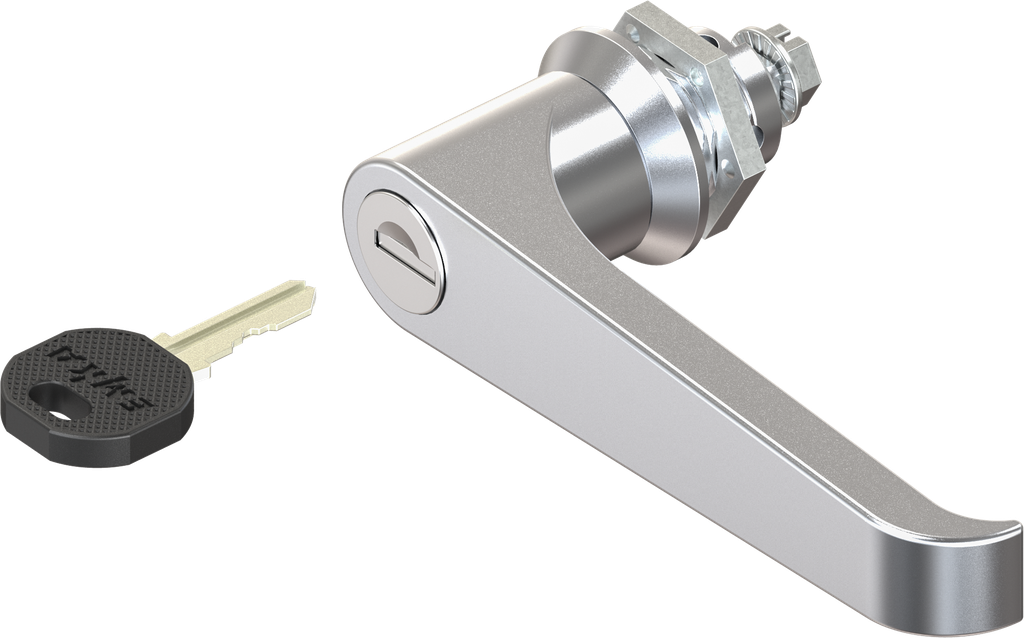

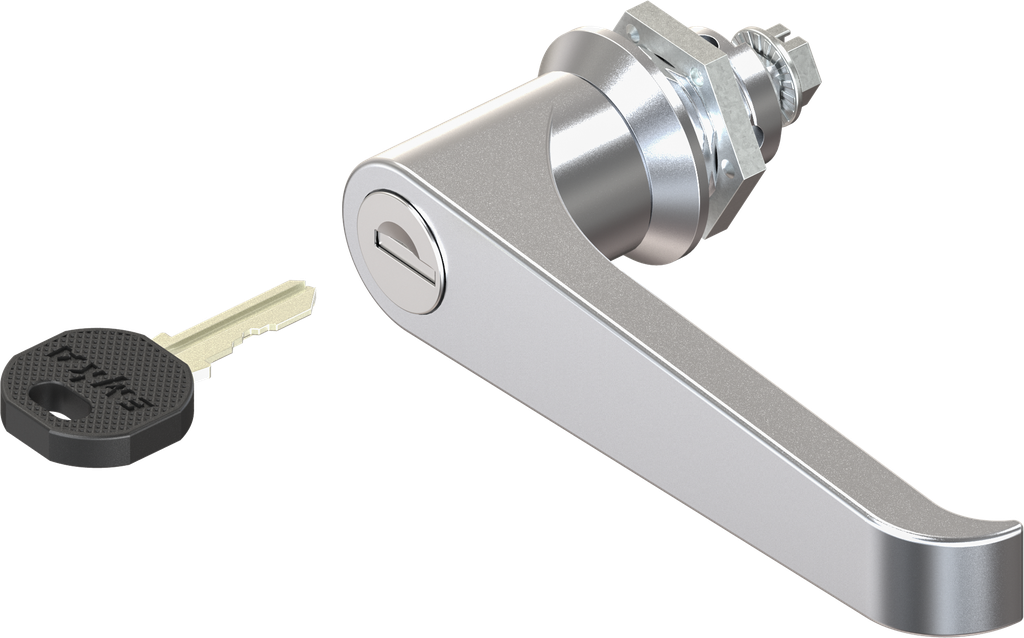

L-handle quarter turn, keyed EK 333, Zinc die chrome-plated; 1000-U58

https://www.emka.com/products/1000-u58 https://www.emka.com/web/image/product.template/59934/image_1920?unique=8643d44

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right
    Contact Us

    Product information:

    Key removable in both positions.
    Internal Reference: 1000-U58
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-580
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
