T-handle quarter turn, non-keyed, Zinc die and polyamide black
T-handle quarter turn, non-keyed, Zinc die and polyamide black
T-handle quarter turn, keyed EK 333, Zinc die and polyamide black
T-handle quarter turn, keyed EK 333, Zinc die and polyamide black

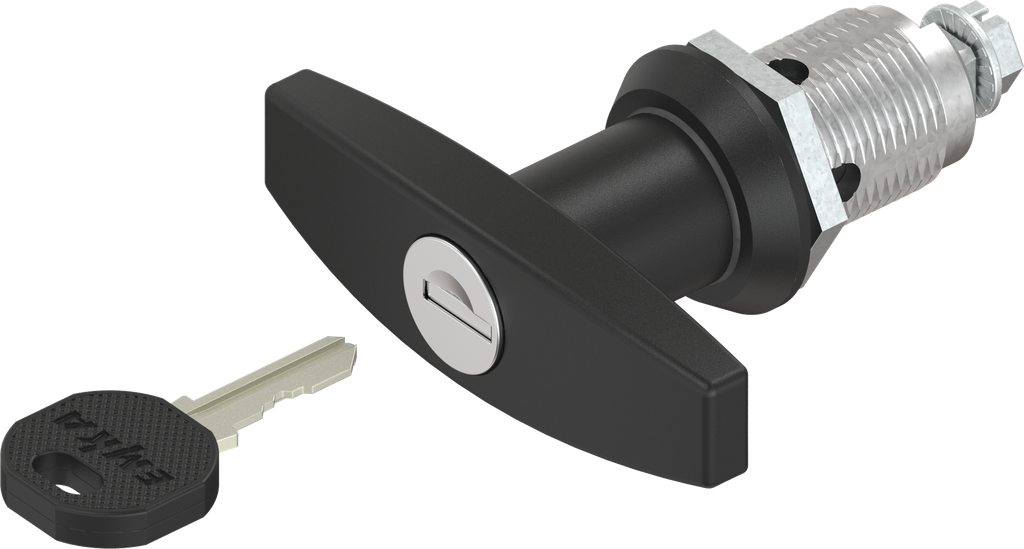

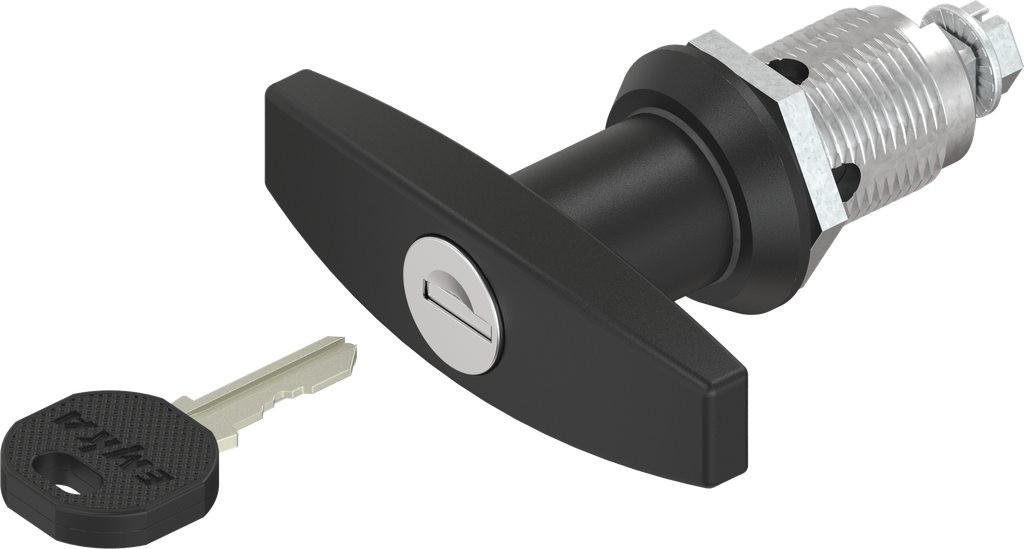

T-handle quarter turn, keyed EK 333, Zinc die and polyamide black; 1000-U554

https://www.emka.com/products/1000-u554 https://www.emka.com/web/image/product.template/60183/image_1920?unique=0463bdd

with nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1000-U554
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-560
    Material of the module : Zinc die and polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 30 mm
    Handle Art: T-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control
    Keys

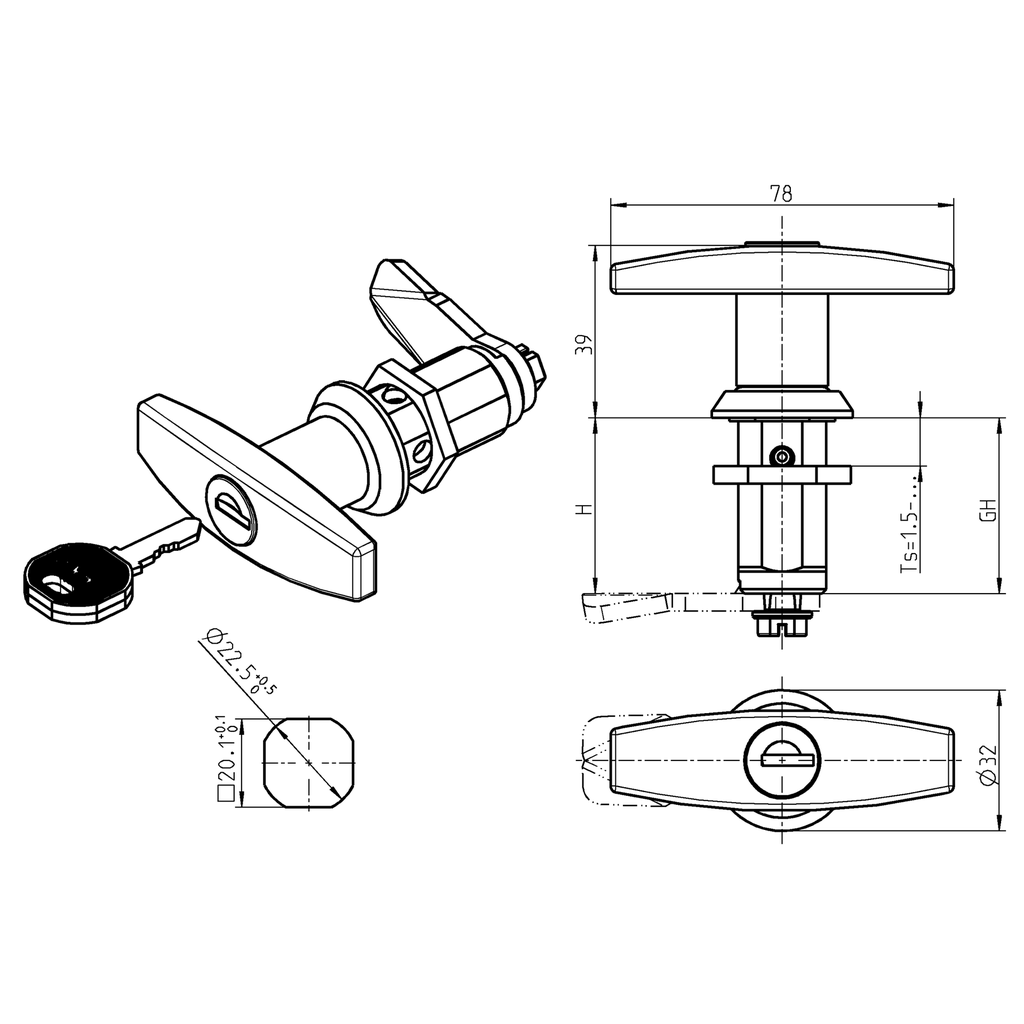

    Here you can find the product data sheets and CAD files of this product
