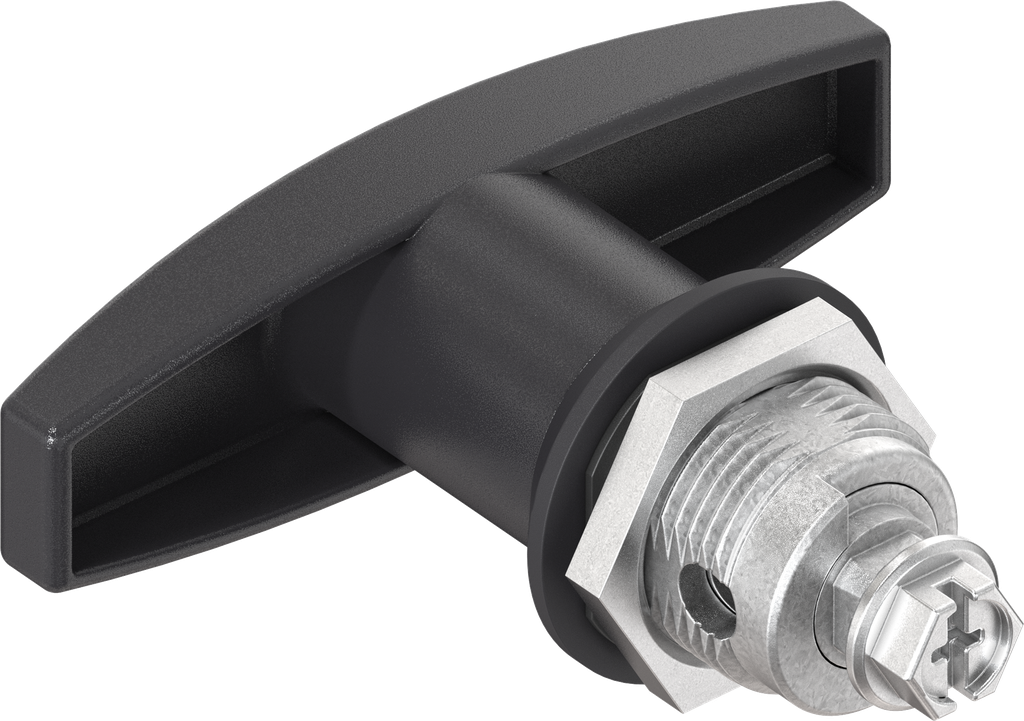

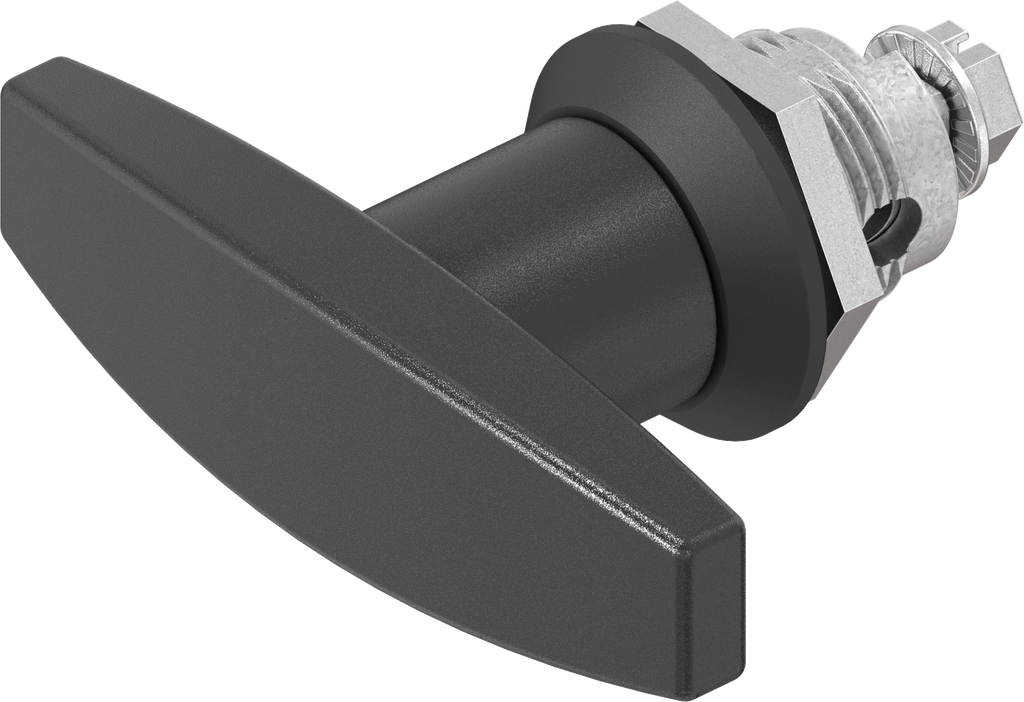

T-handle quarter turn, non-keyed, Zinc die and polyamide black
T-handle quarter turn, non-keyed, Zinc die and polyamide black

T-handle quarter turn, non-keyed, Zinc die and polyamide black; 1000-U546

https://www.emka.com/products/1000-u546 https://www.emka.com/web/image/product.template/60176/image_1920?unique=53a4246

with nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1000-U546
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-560
    Material of the module : Zinc die and polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 18 mm
    Handle Art: T-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
