Insert double bit 3, Stainless steel AISI 316

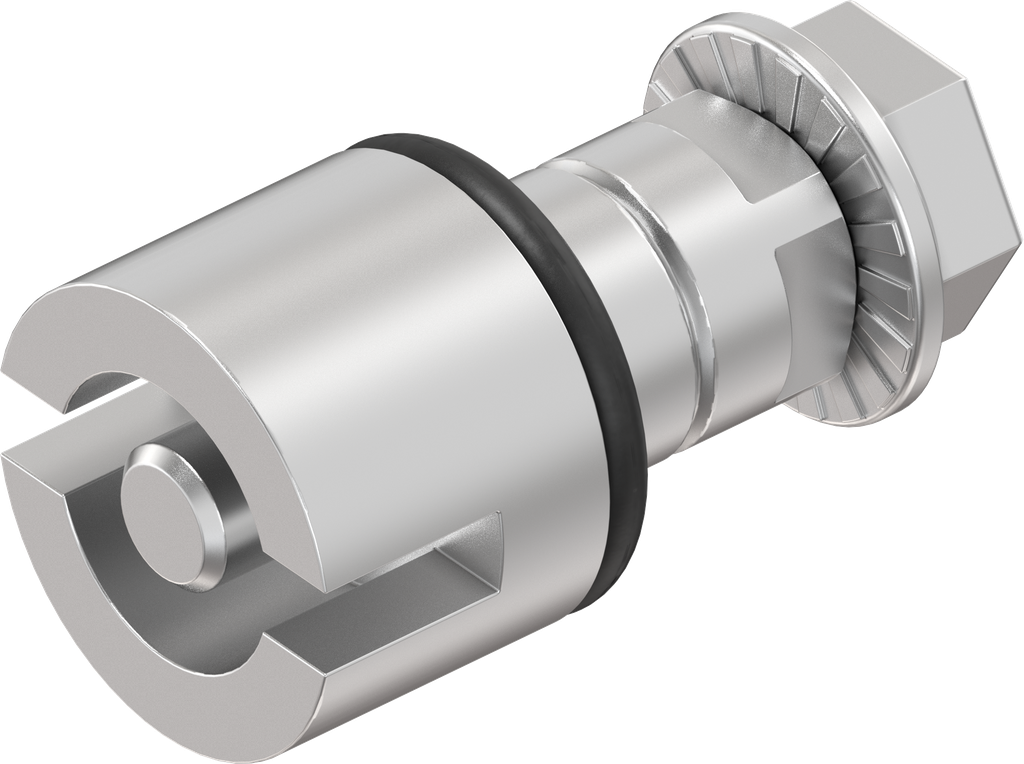

Insert double bit 5, Stainless steel AISI 316 pickled, passivated and electrolytically polished
Insert double bit 5, Stainless steel AISI 316; 1000-U534-02
without spring washer
No stock item, please ask for availability
Key features:
Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
Internal Reference:
1000-U534-02
Standards:
Protection class IP 65
Barcode:
1000-U00534-0000002
Product Type:
Insert
Program:
1000
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Double bit 5
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
