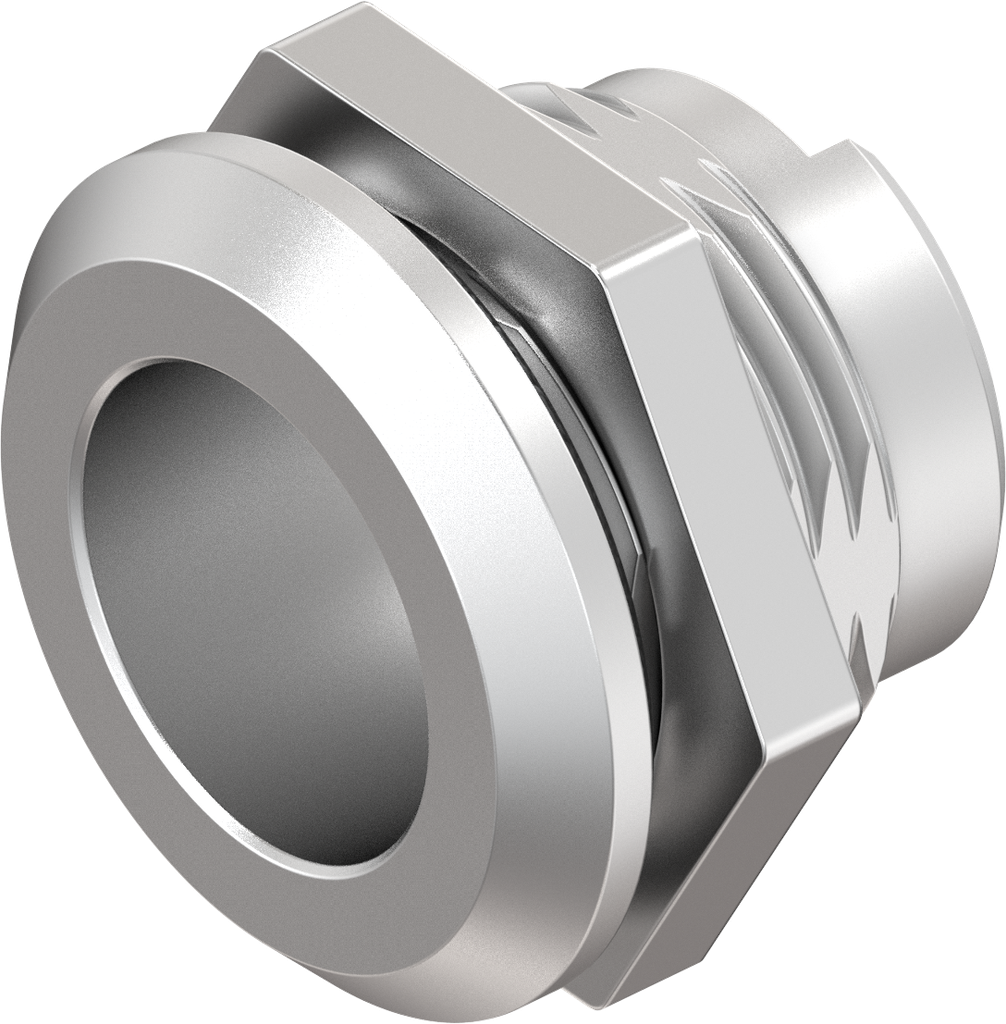

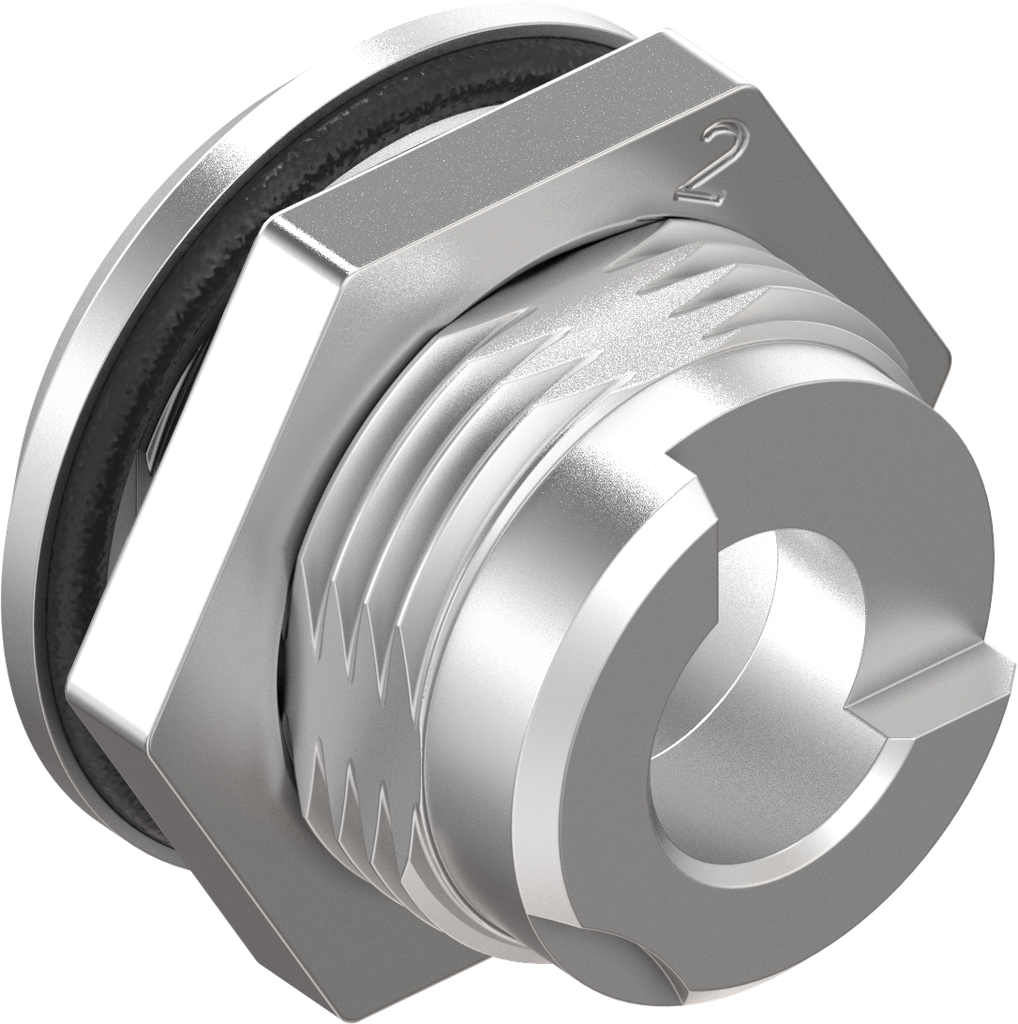

Housing foamed, Stainless steel AISI 316; 1000-U530

https://www.emka.com/products/1000-u530 https://www.emka.com/web/image/product.template/60159/image_1920?unique=4389680

with stainless steel nut

    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 Left Right
    Contact Us

    Key features:

    This product is a modular component of a UL-certified closure.
    Internal Reference: 1000-U530
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-140
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing

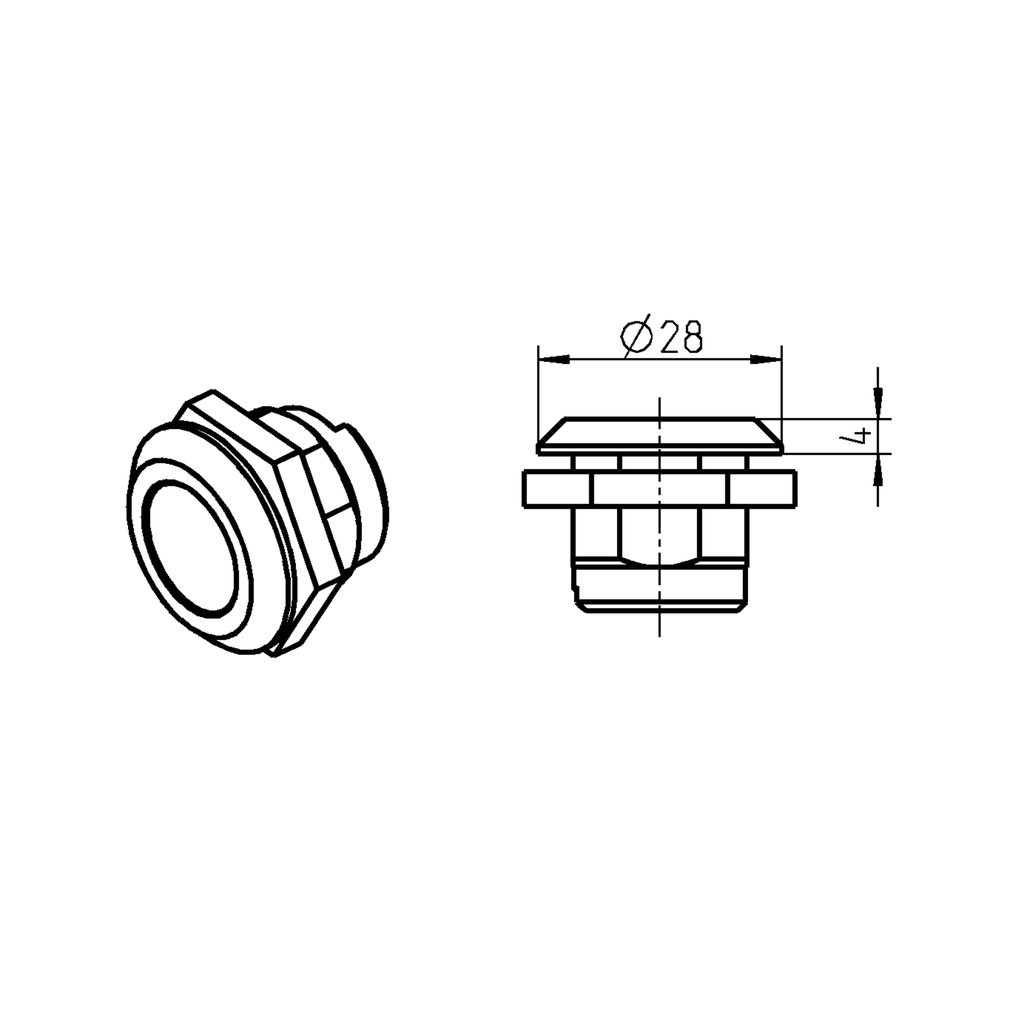

    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    Foamed gasket: Yes
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
