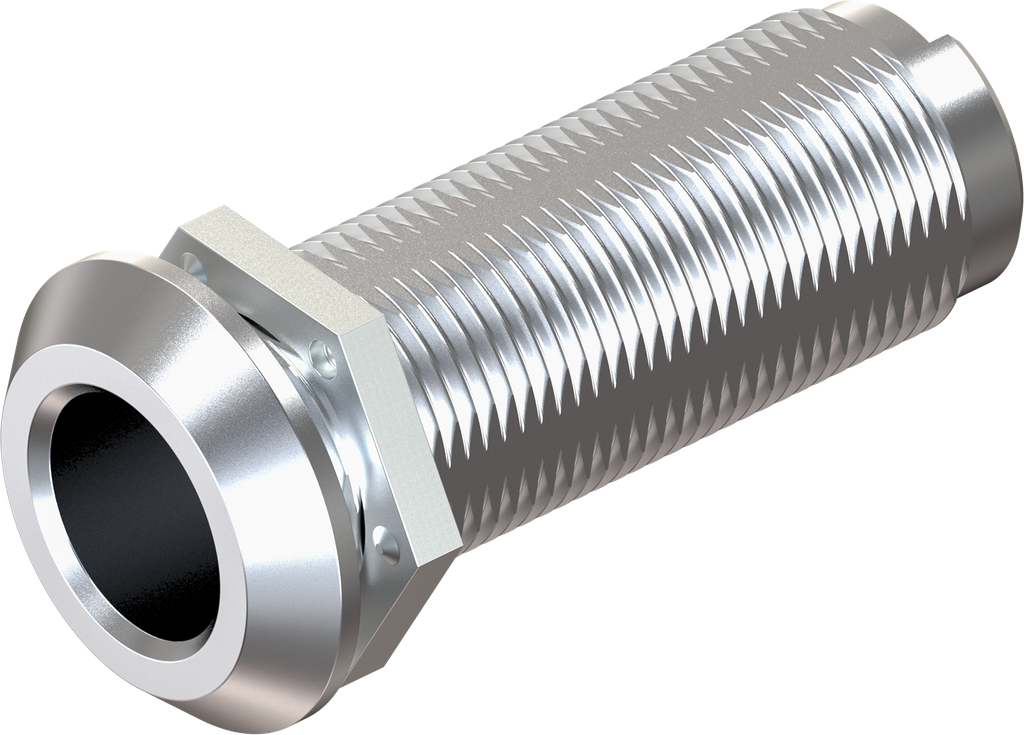

Housing, Zinc die chrome-plated; 1000-U505

https://www.emka.com/products/1000-u505 https://www.emka.com/web/image/product.template/205627/image_1920?unique=f86255a

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Left Right


    Key features:

    This product is a modular component of a UL-certified closure.

    Internal Reference: 1000-U505
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes

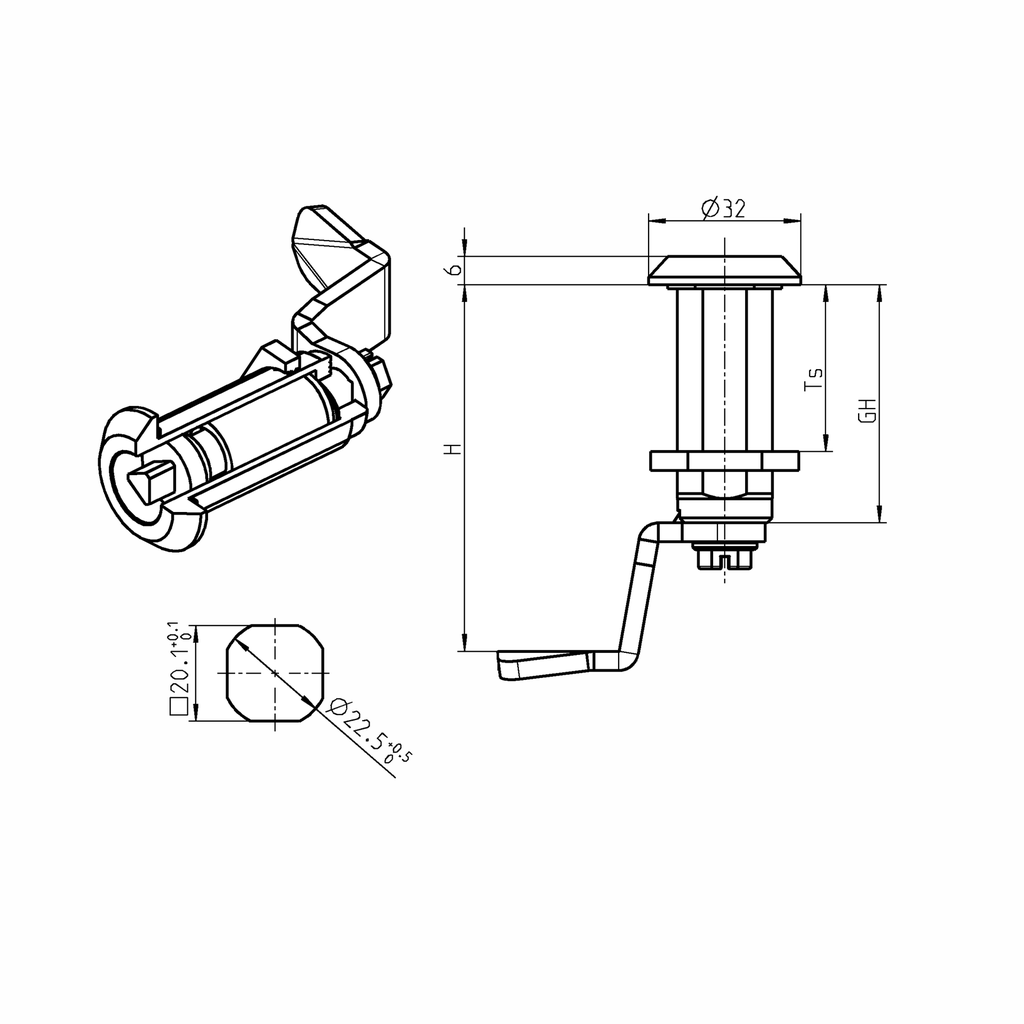

    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 60 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 50 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products

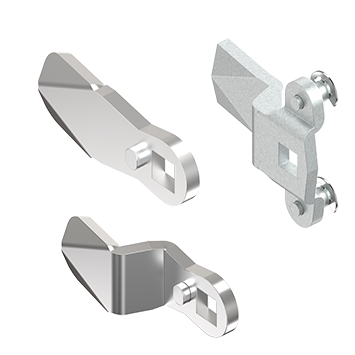

    Cam
    O-ring and flat seal
    Quarter turn accessories
    Dust cap - Finger pull
    Assembly

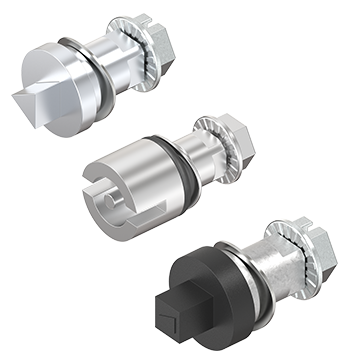

    Insert
    Rod control

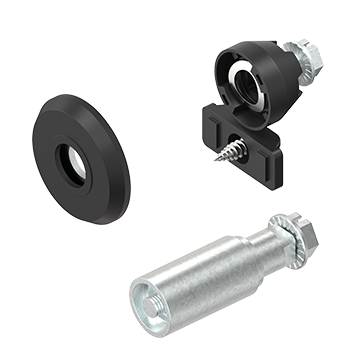

    Adapter
