L-handle quarter turn for padlock, Zinc die chrome-plated
L-handle quarter turn for padlock, Zinc die chrome-plated
Housing, Zinc die chrome-plated
Housing, Zinc die chrome-plated

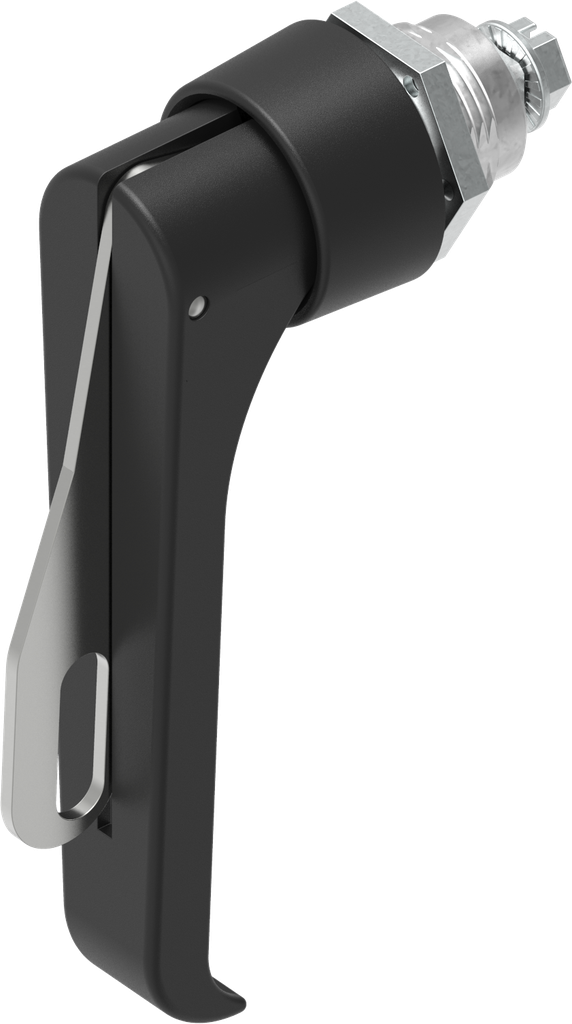

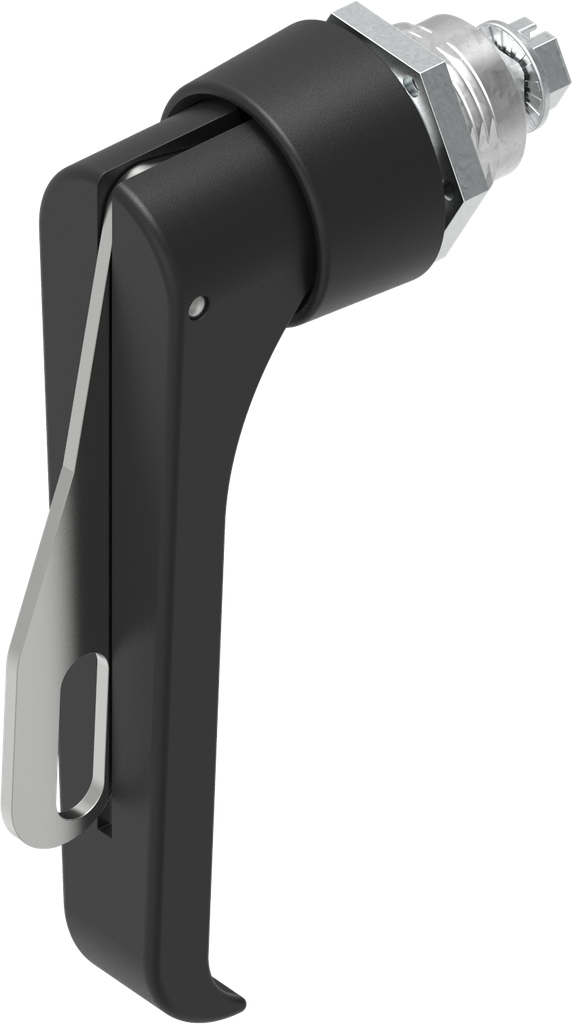

L-handle quarter turn for padlock, Zinc die black powder-coated; 1000-U502

https://www.emka.com/products/1000-u502 https://www.emka.com/web/image/product.template/205626/image_1920?unique=d8aefa2

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right
    Contact Us

    Function:

    Attention:
    L-handle is locked when a padlock is fitted.
    Internal Reference: 1000-U502
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-620
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 32 x 17 mm
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 7
    Quarter turn types: Quarter turn with handle,Quarter turn for padlock
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control

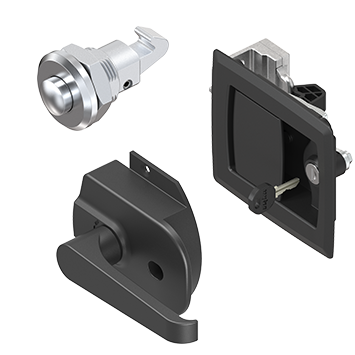

    Other latch
