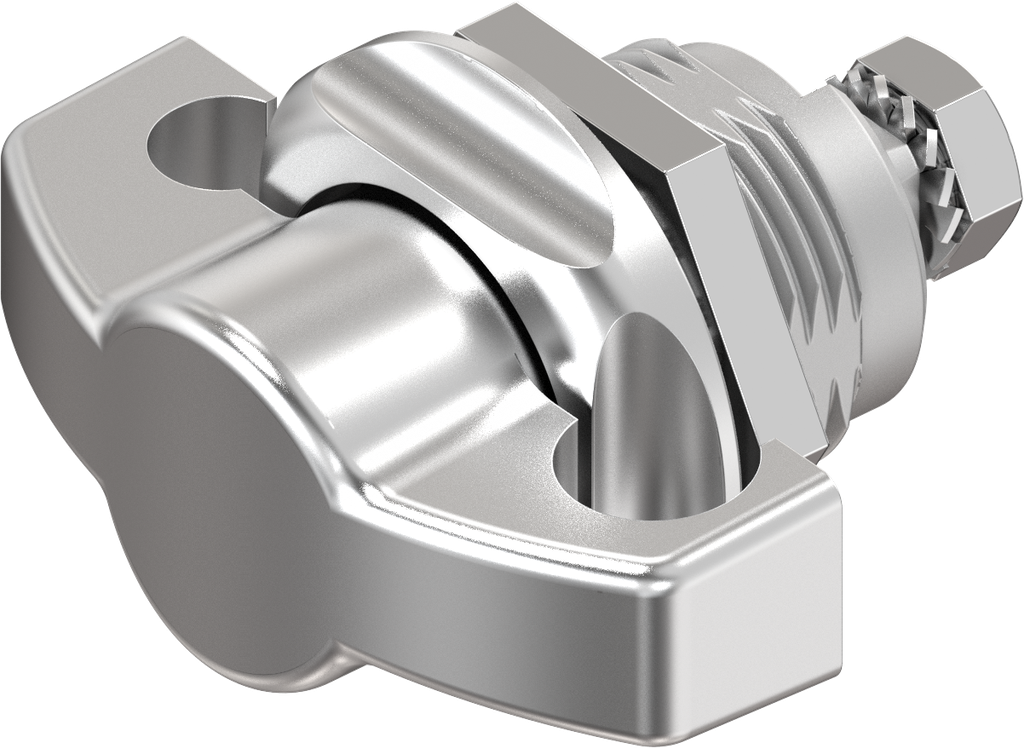

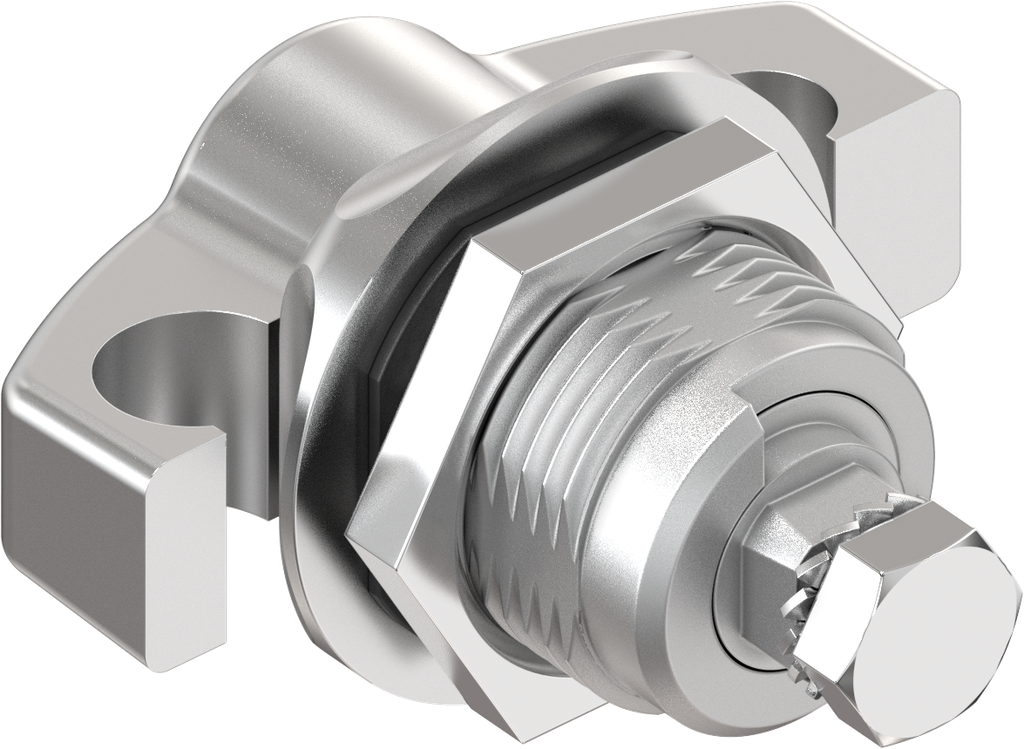

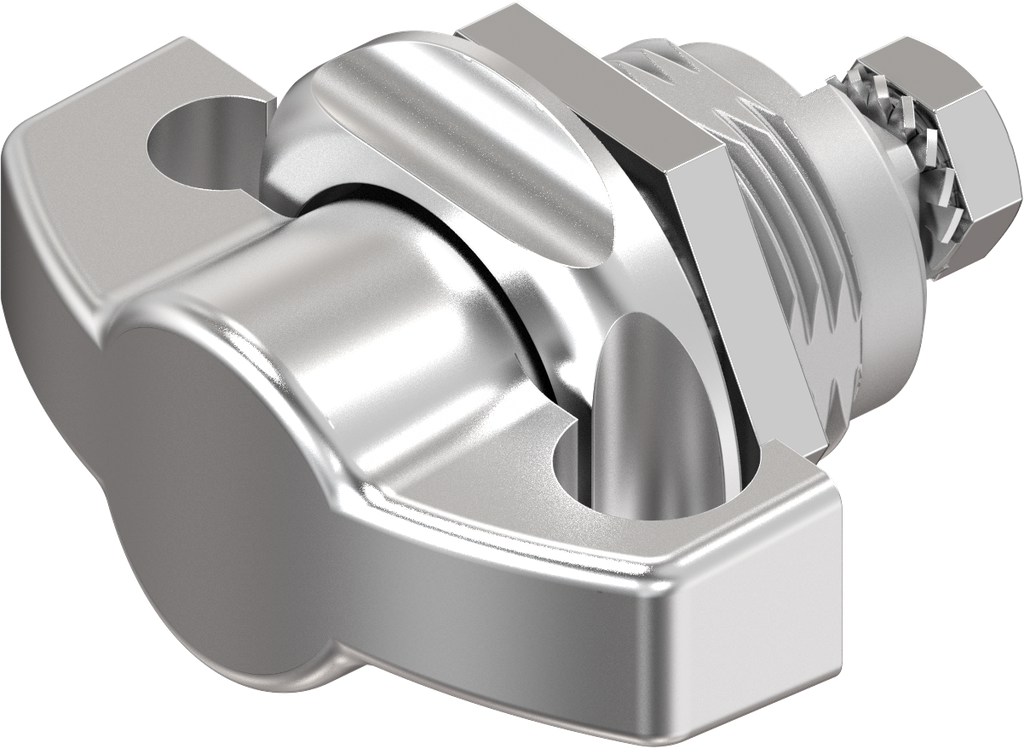

Wing knob quarter turn for padlock, Stainless steel AISI 316; 1000-U429-01PH

https://www.emka.com/products/1000-u429-01ph https://www.emka.com/web/image/product.template/60131/image_1920?unique=ec11c35

with stainless steel nut

    This combination does not exist.

    Inside the sealing Protection class IP 66 Left Right
    Contact Us

    Product information:

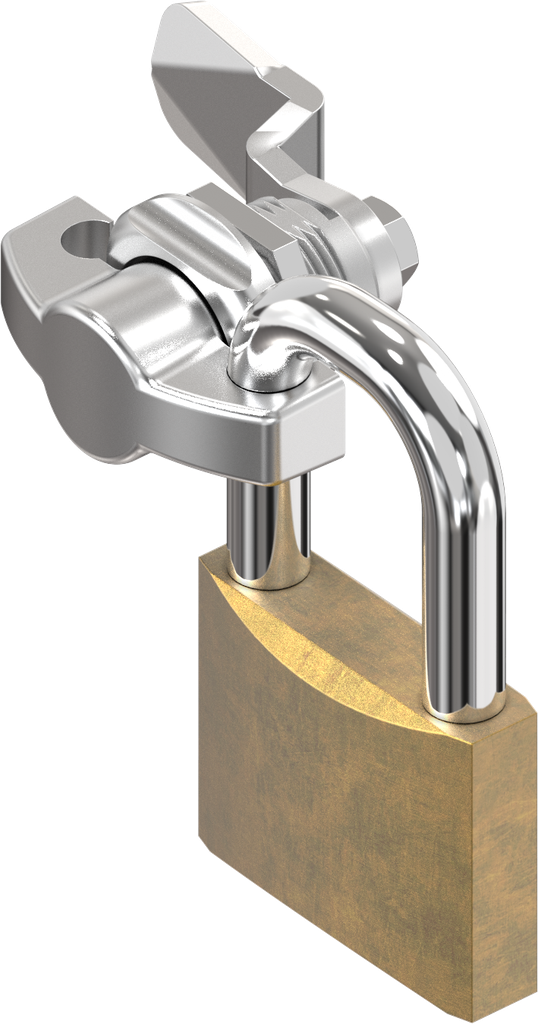

    Wing knob handle is locked when a padlock with suitable shackle diameter is attached.
    Internal Reference: 1000-U429-01PH
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-680
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

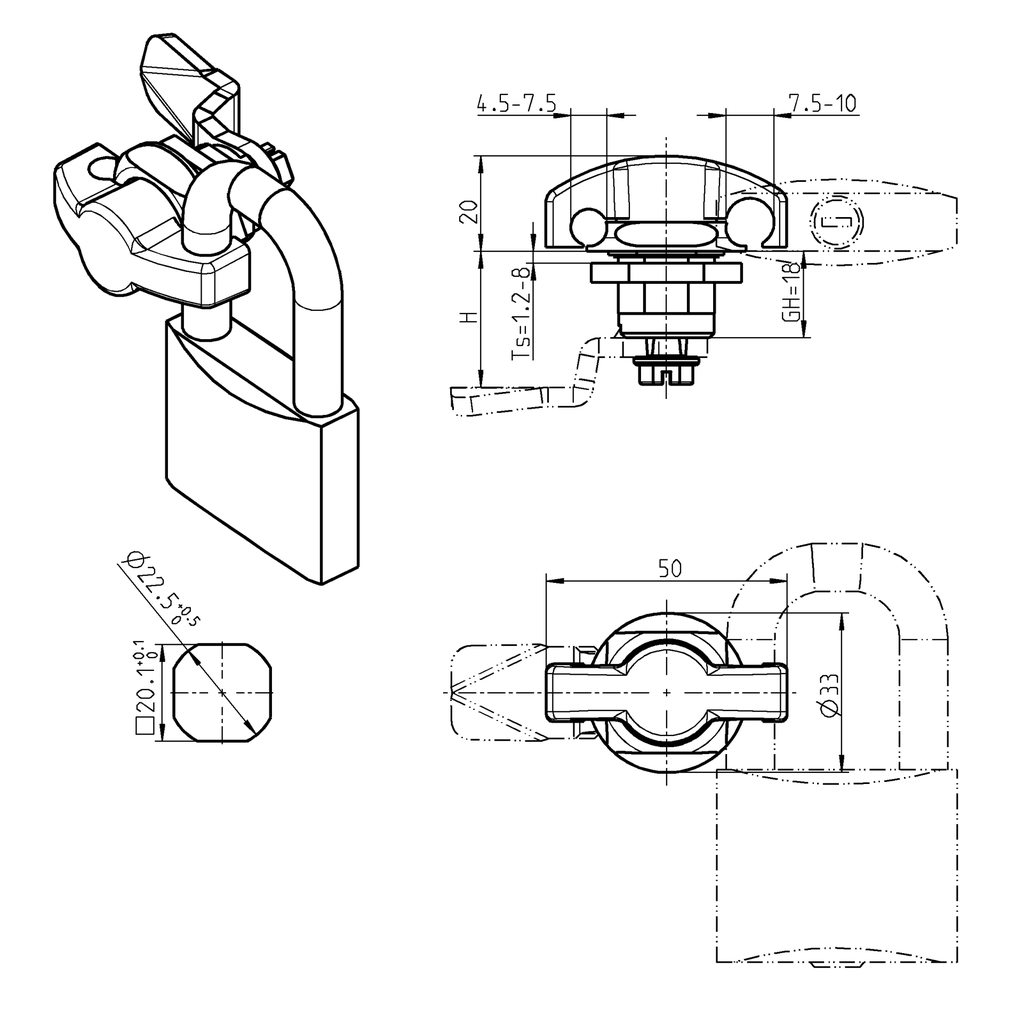

    GH Mass: 18 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 4.5-7.5 and Ø 7,5-10
    Quarter turn types: Quarter turn with handle,Quarter turn for padlock
