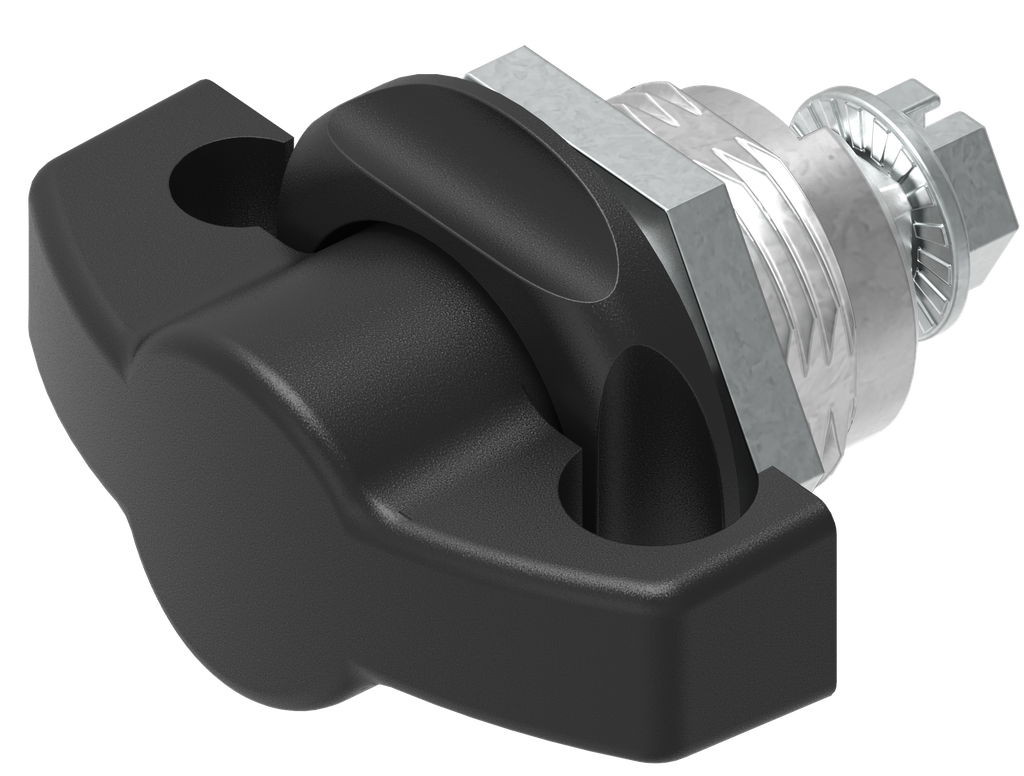

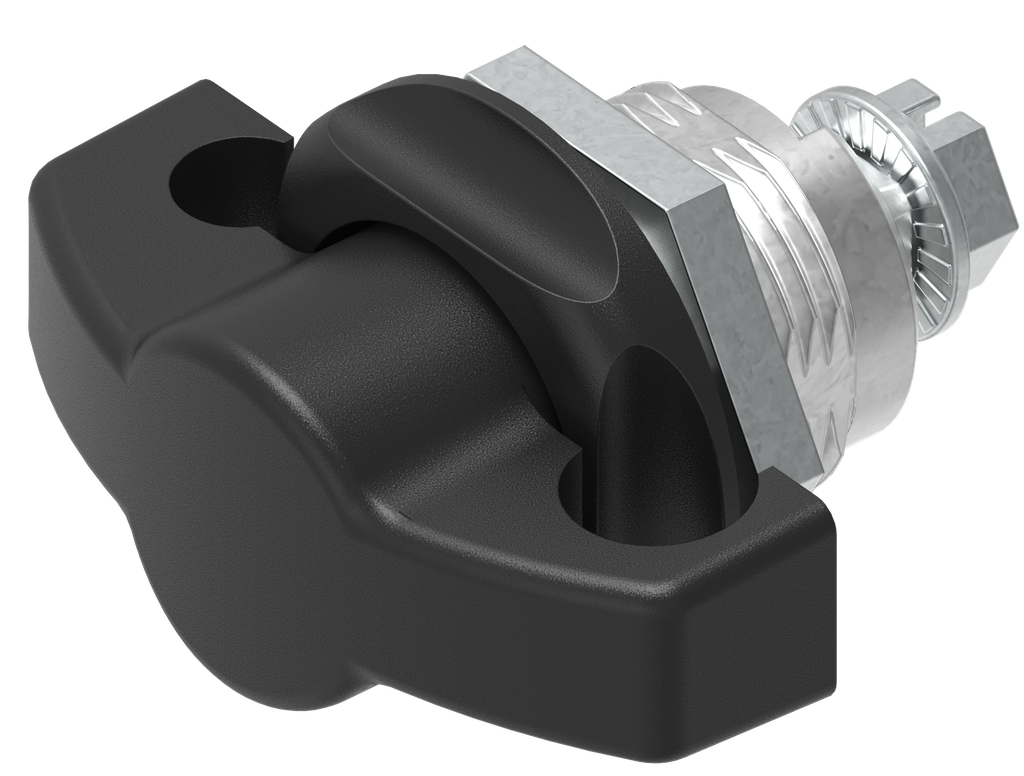

Wing knob quarter turn for padlock, Zinc die black powder-coated; 1000-U429-01

https://www.emka.com/products/1000-u429-01 https://www.emka.com/web/image/product.template/60130/image_1920?unique=4311804

with nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right
    Contact Us

    Product information:

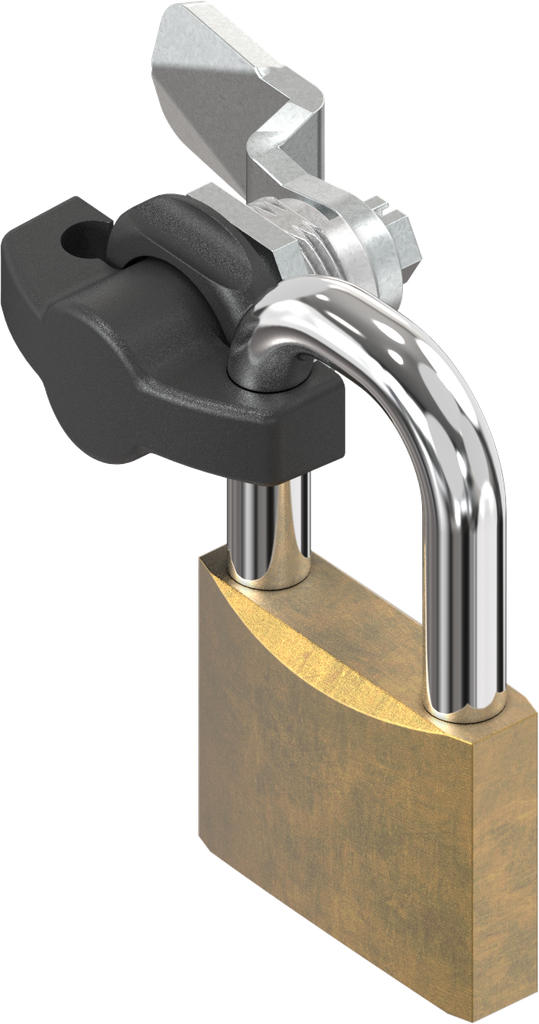

    Wing knob handle is locked when a padlock with suitable shackle diameter is attached.
    Internal Reference: 1000-U429-01
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-680
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 18 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 4.5-7.5 and Ø 7,5-10
    Quarter turn types: Quarter turn with handle,Quarter turn for padlock
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control

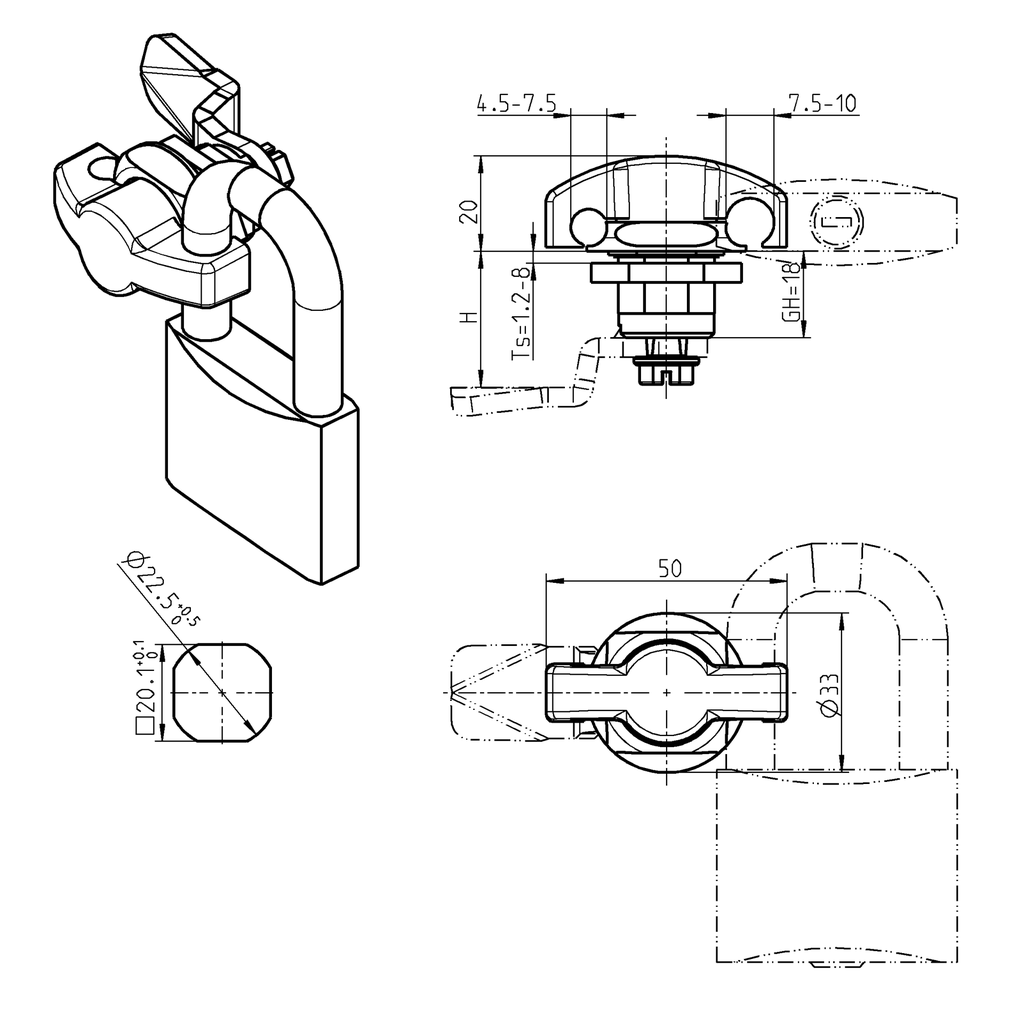

    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1B-680
    Product data sheet
    CAD file | 1000-U429-01_igs
    CAD file | 1000-U429-01_stp
