L-handle quarter turn, non-keyed, Zinc die black powder-coated
L-handle quarter turn, non-keyed, Zinc die black powder-coated
L-handle quarter turn square 7, Zinc die black powder-coated
L-handle quarter turn square 7, Zinc die black powder-coated

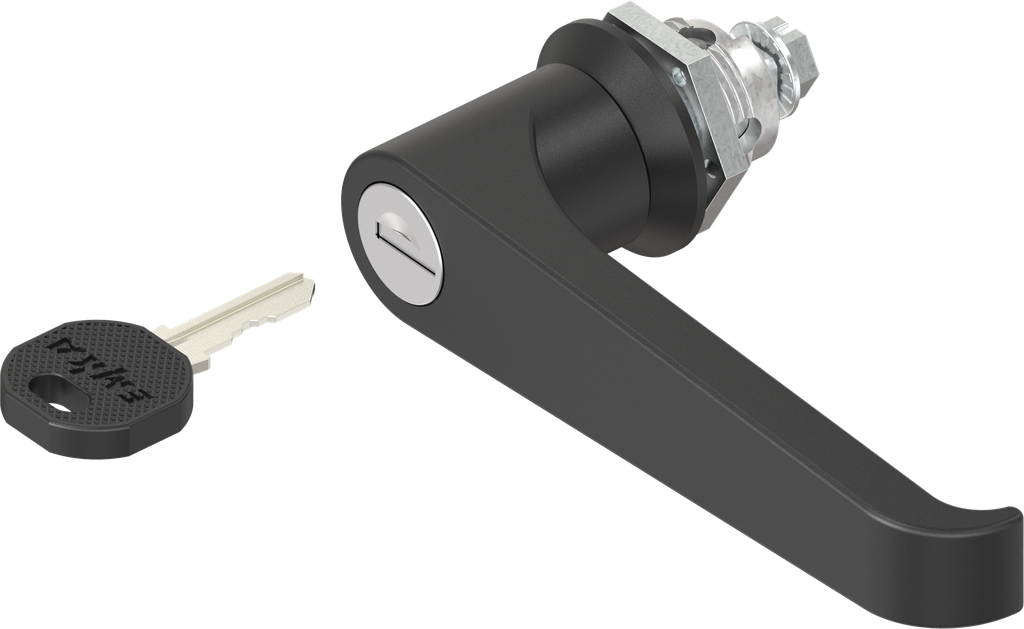

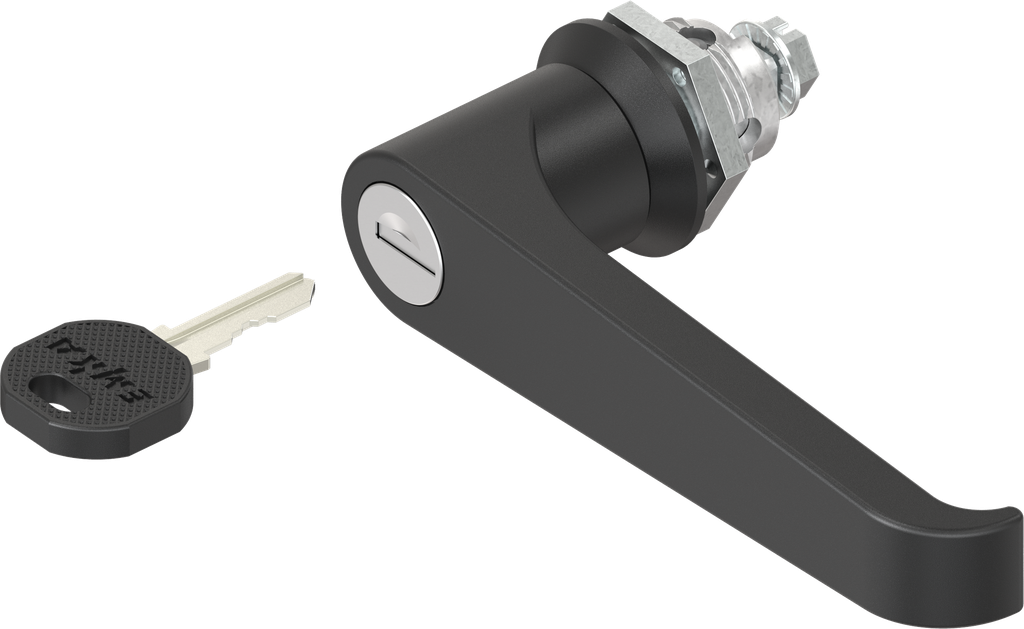

L-handle quarter turn, keyed EK 333, Zinc die black powder-coated; 1000-U393

https://www.emka.com/products/1000-u393 https://www.emka.com/web/image/product.template/60115/image_1920?unique=842b340

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1000-U393
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-580
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round

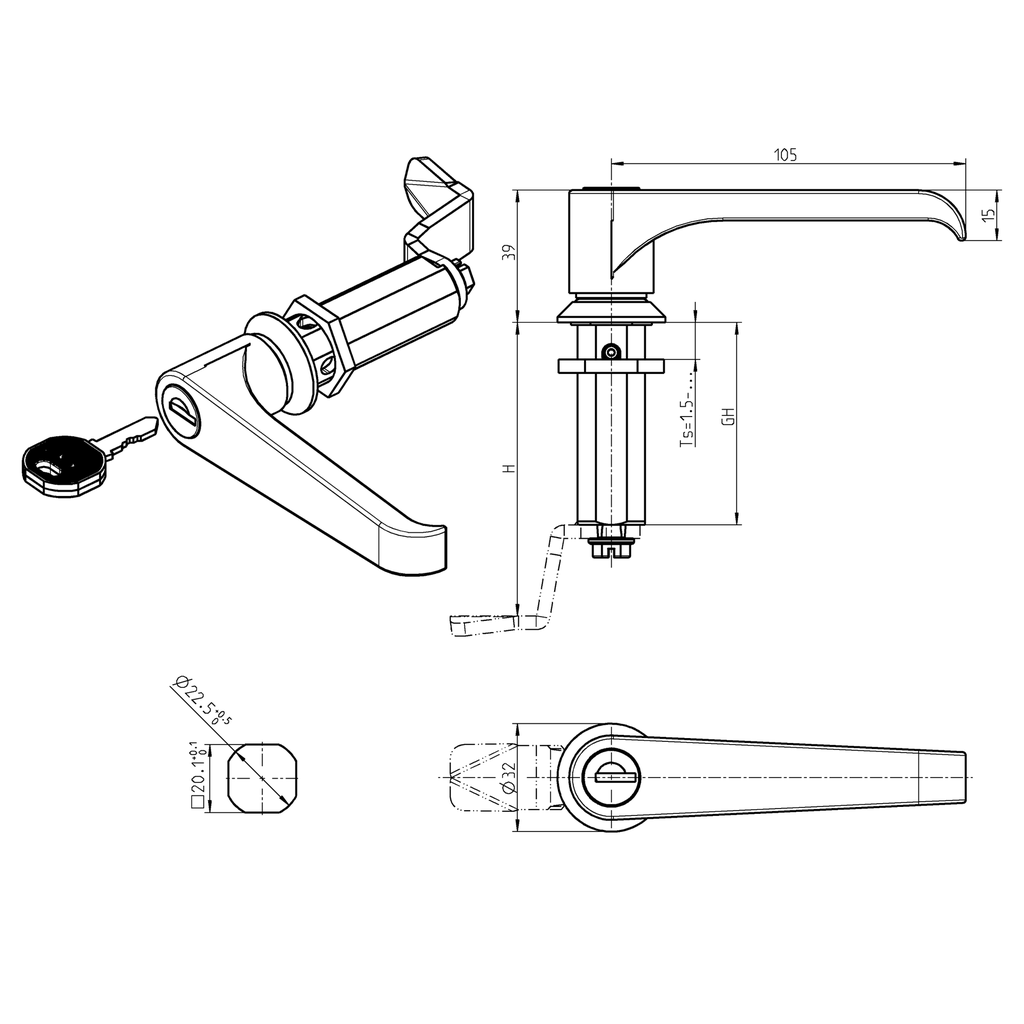

    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam

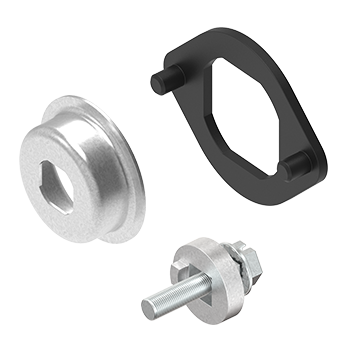

    Quarter turn accessories
    Assembly
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
