L-handle quarter turn, non-keyed, Zinc die black powder-coated
L-handle quarter turn, non-keyed, Zinc die black powder-coated
L-handle quarter turn, keyed EK 333, Zinc die black powder-coated
L-handle quarter turn, keyed EK 333, Zinc die black powder-coated

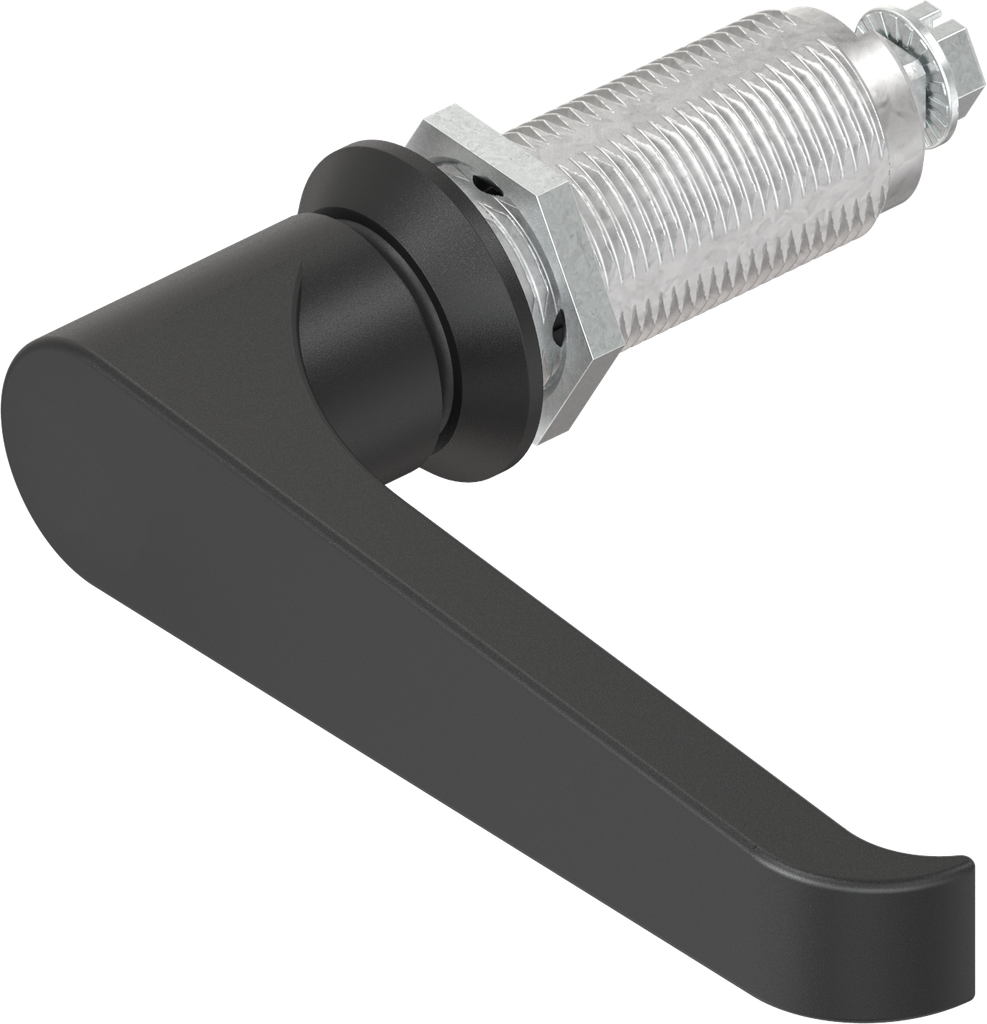

L-handle quarter turn, non-keyed, Zinc die black powder-coated; 1000-U366

https://www.emka.com/products/1000-u366 https://www.emka.com/web/image/product.template/60106/image_1920?unique=f86255a

with nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1000-U366
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-580
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 50 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 40 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control

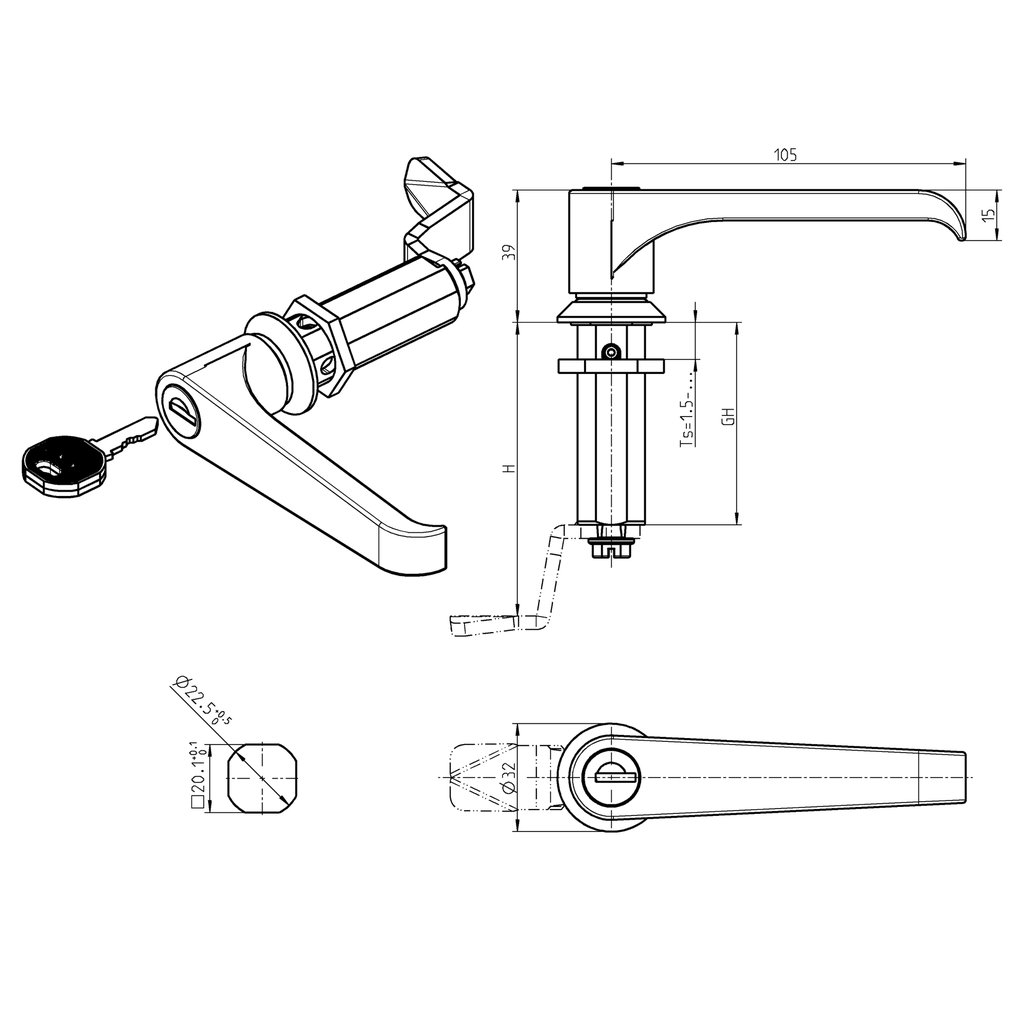

    Here you can find the product data sheets and CAD files of this product
