Insert slot 2 x 4, Zinc die black powder-coated

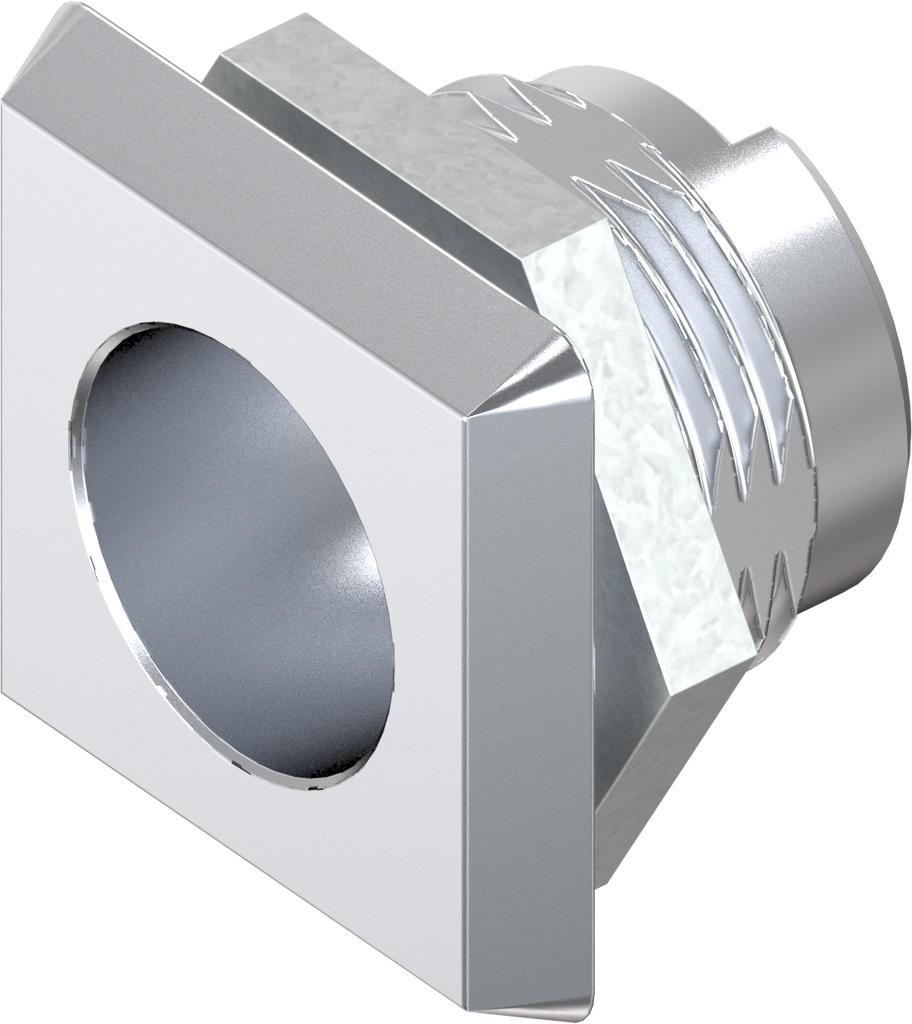

Housing, Zinc die black powder-coated
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U330
Product Type:
Housing
Program:
1000
Catalog sheet:
1B-140
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing

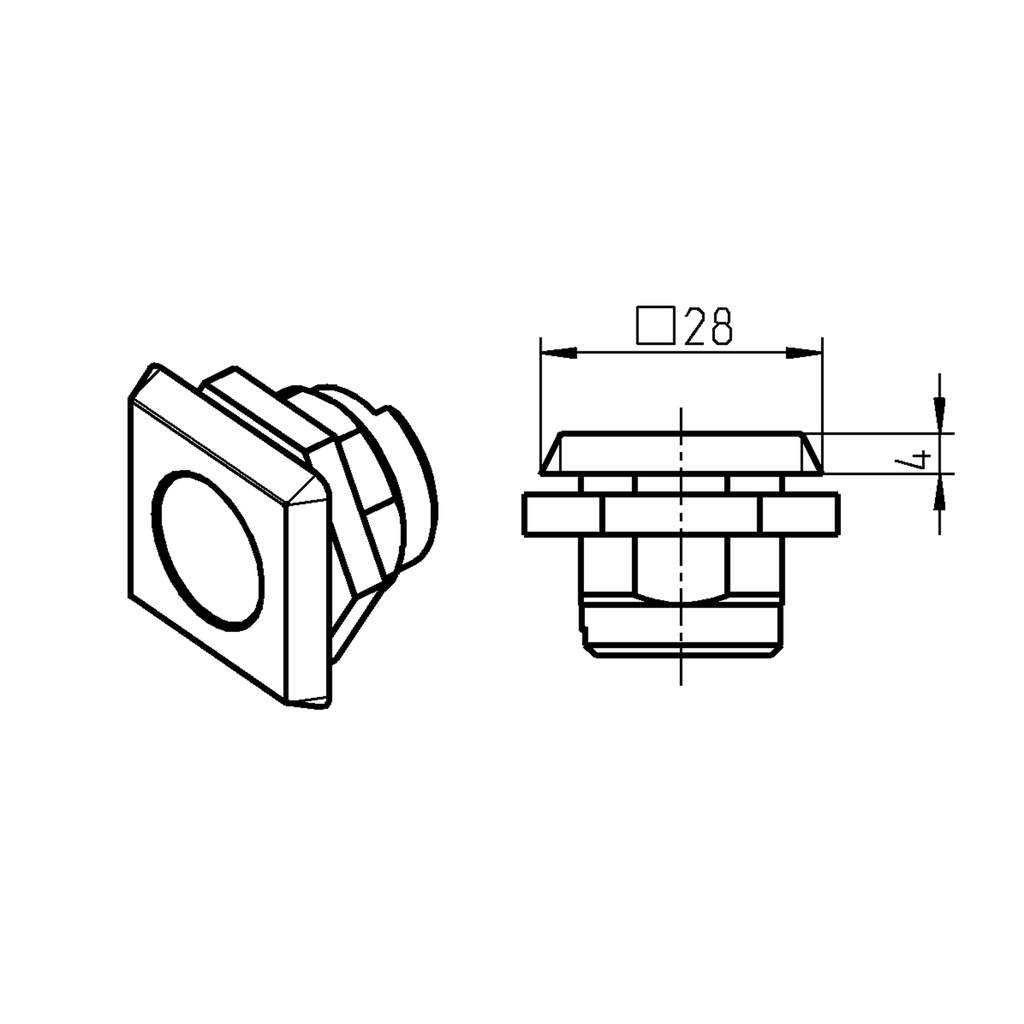

Housing Head Shape:
Square
Housing Head Size:
28 x 4 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
