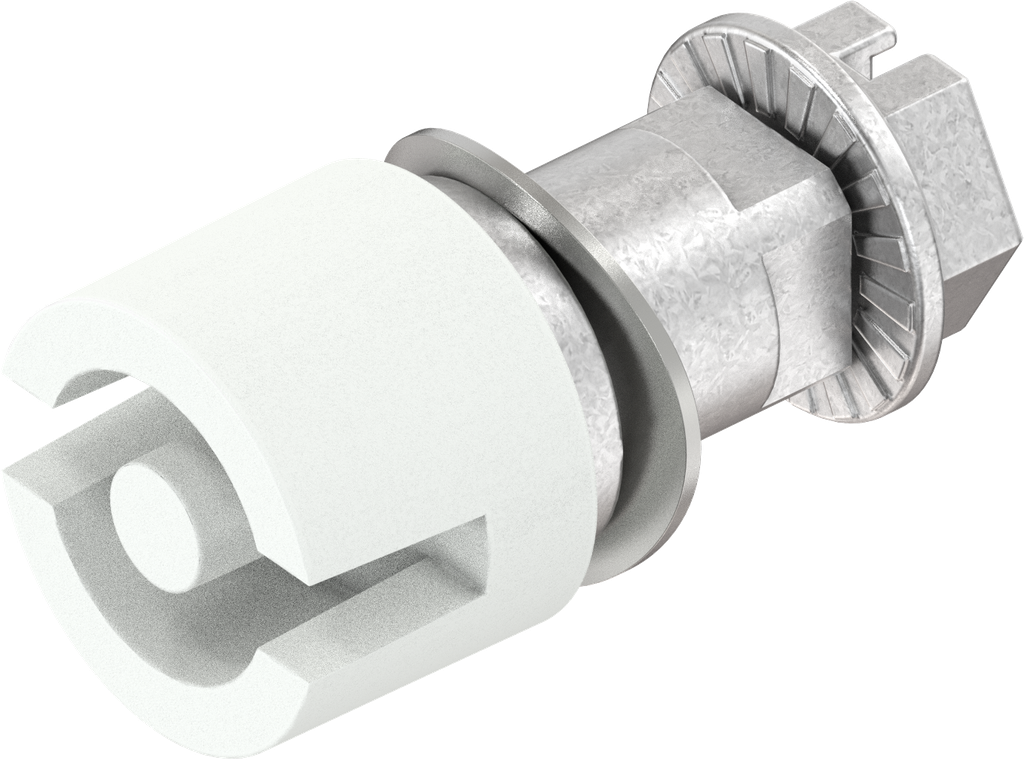

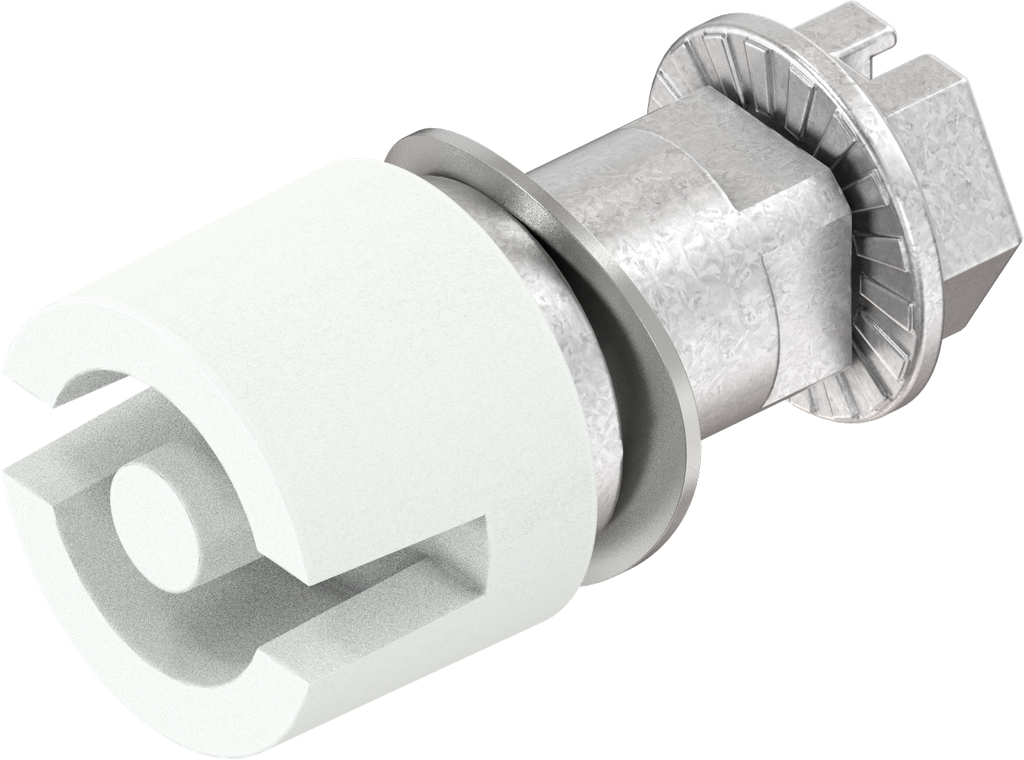

Insert double bit 5, Zinc die pure white powder-coated; 1000-U328-HA

https://www.emka.com/products/1000-u328-ha-insert-double-bit-5-zinc-die-pure-white-powder-coated-205537 https://www.emka.com/web/image/product.template/205537/image_1920?unique=d4af154

    This combination does not exist.

    Key features:

    Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
    Internal Reference: 1000-U328-HA
    Barcode: 1000-u00328-00000ha
    Product Type: Insert
    Program: 1000
    Material of the module : Zinc die
    Surface of the module: pure white powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Insert for: Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
    Type of actuation: Double bit 5
    For GH measure: 18 mm
    O-ring position: Hub
    Locking set: Insert
    Screw Fastening: Metric
    No Specifications
    View All Products
    Housing
    O-ring and flat seal

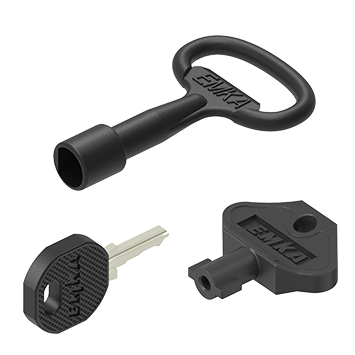

    Keys
    Here you can find the product data sheets and CAD files of this product
