Housing, Zinc die black powder-coated
Insert square 7, Zinc die black powder-coated
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U322
Barcode:
1000-U00322-0000000

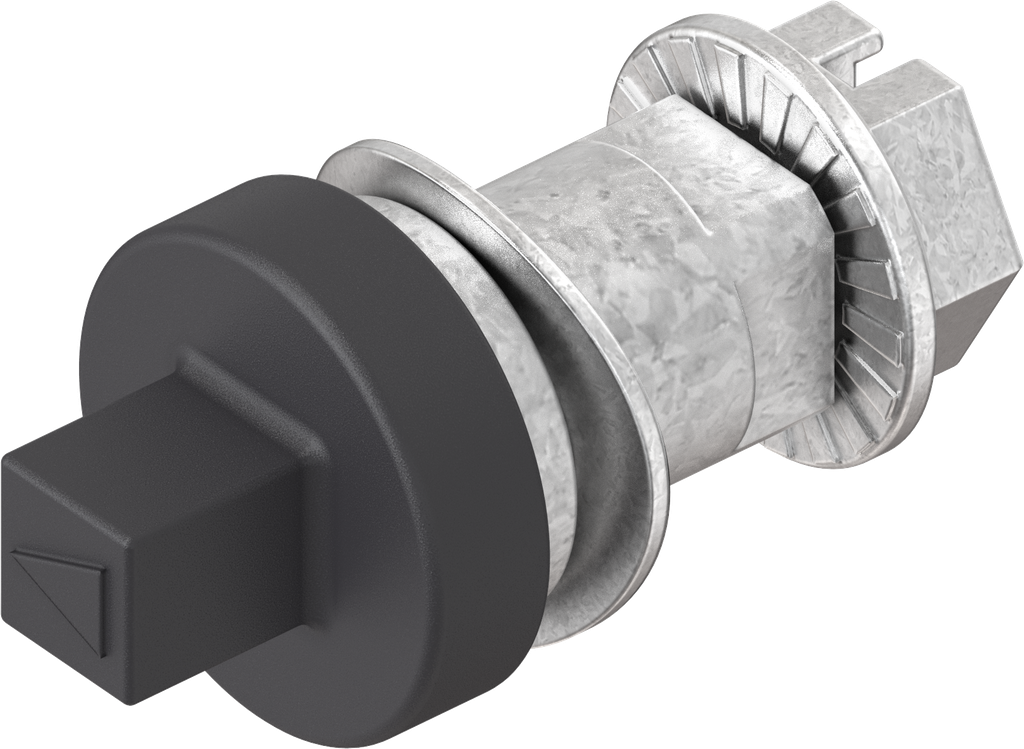

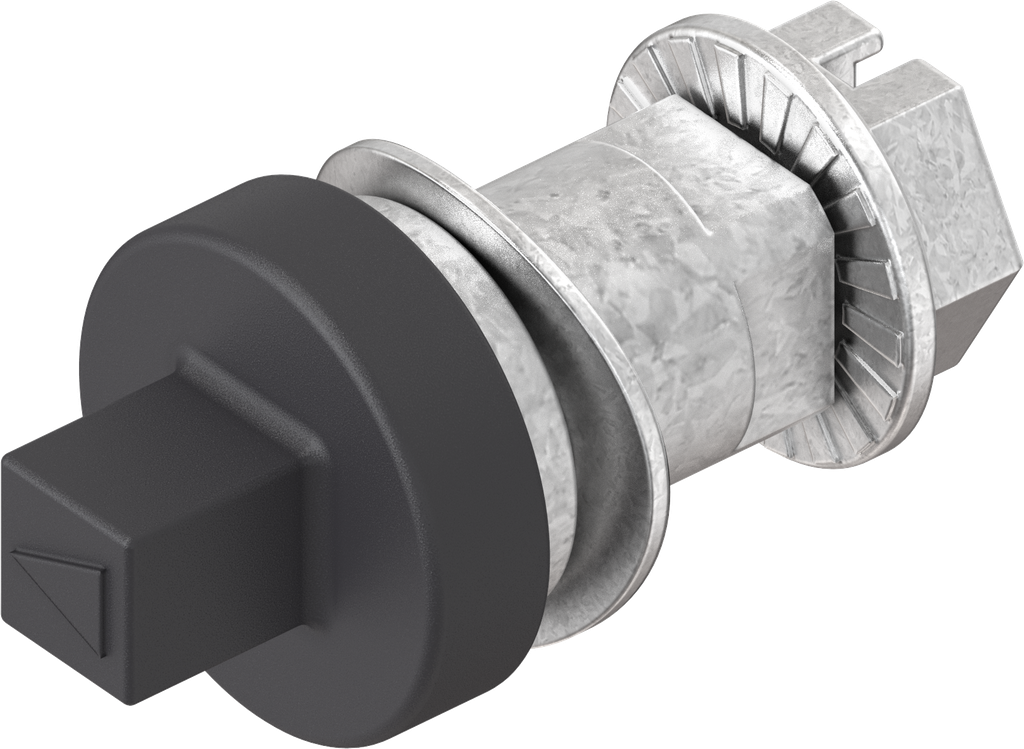

Product Type:
Insert
Program:
1000
Catalog sheet:
1B-140
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Square 6

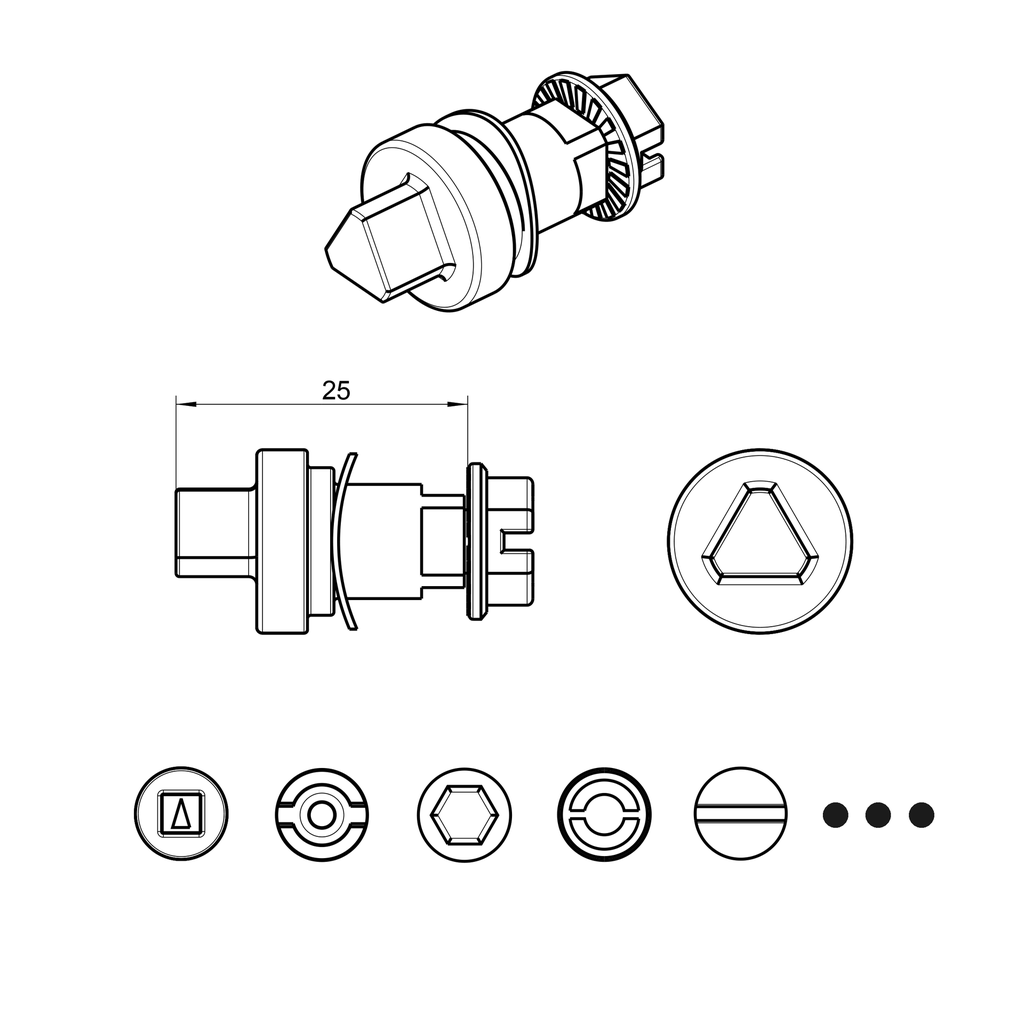

For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
